FORM NO. 56043098 - Convertamatic
™
24, 26, 28, 32 / BA 625, 725, 825 - 19
SOLUTION SYSTEM
SOLUTION FILTER AND BALL VALVE REMOVAL
1 Drain the solution tank using the solution drain hose (B).
2 See Figure 4. Loosen the (2) Hose Clamps (K) and pry off the inlet Solution Hose (L) and Solution Hose (M).
3 Remove the Nut (N) that secures the Filter Mount Bracket (O) to the chassis and remove the assembly from the machine.

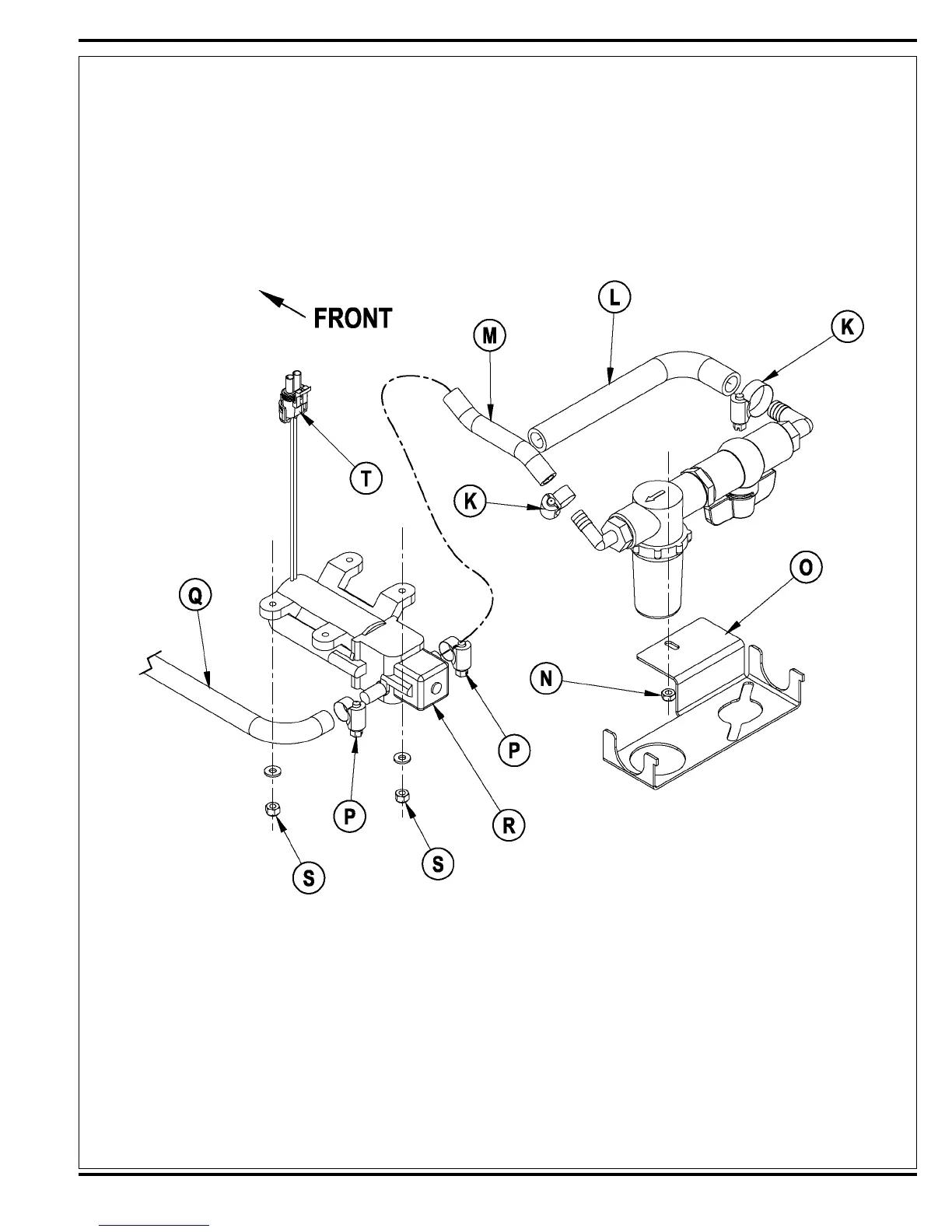

FIGURE 4
SOLUTION PUMP REMOVAL
Drain the solution tank or turn the solution fi lter ball valve to the off position to prevent solution loss.1
See Figure 4.2 Loosen the (2) Hose Clamps (P) and pry off inlet Hose (M) and outlet Hose (Q) from Solution Pump (R).
Remove the (2) 10-24 nuts 3 (S) that secure the Solution Pump to the Chassis.
Disconnect the Solution Pump Electrical Connector 4 (T); (A tie strap may need to be cut) completing the part removal.
NOTE: Refer to the APPENDIX at the back of this manual for solution system fl ow schematics and detergent system information.
