FORM NO. 56043098 - Convertamatic
™
24, 26, 28, 32 / BA 625, 725, 825 - 45
WHEEL DRIVE SYSTEM
DRIVE WHEEL REMOVAL
WARNING!
Disconnect the battery pack connector before servicing machine.
WARNING!
Never work under machine without safety stands or blocking to support the machine.
Remove the squeegee and place wood blocking in front and rear of the opposite drive wheel that you are removing to prevent the machine from rolling.1
Using a scissors jack, raise the machine until the wheel is off the ground. 2 See Figure 6 for jack placement.
Remove the (4) Locknuts 3 (E) and Drive Wheel (F).
Reinstall in reverse order.4

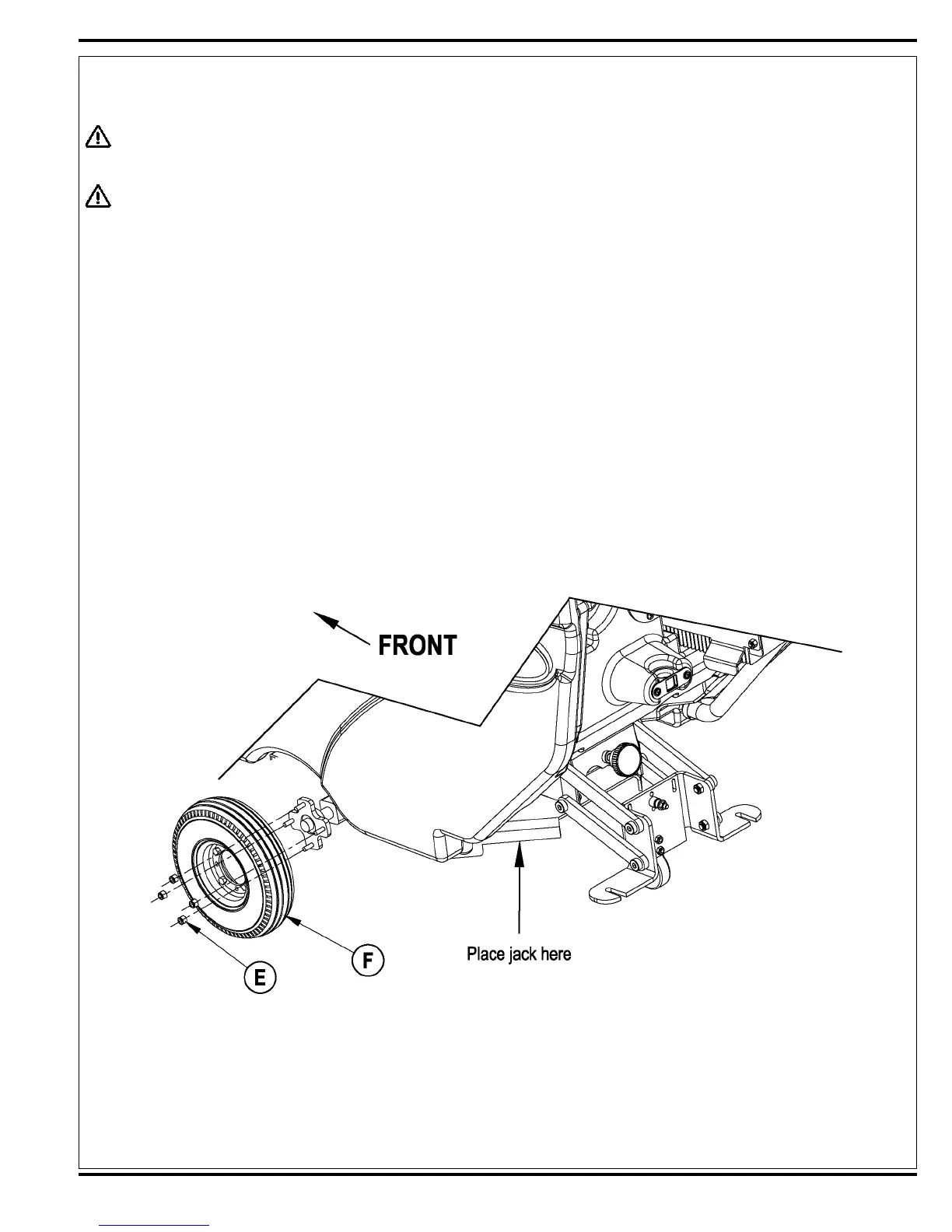

FIGURE 6
