38 - FORM NO. 56043098 - Convertamatic
™
24, 26, 28, 32 / BA 625, 725, 825
SQUEEGEE SYSTEM
CASTER WHEEL REMOVAL
WARNING!
Disconnect the battery pack connector before servicing machine.
WARNING!
Never work under machine without safety stands or blocking to support the machine.
1 Drain both the solution and recovery tanks. Remove the squeegee assembly and have the scrub deck in the up (stored) position with the scrub brushes
installed.

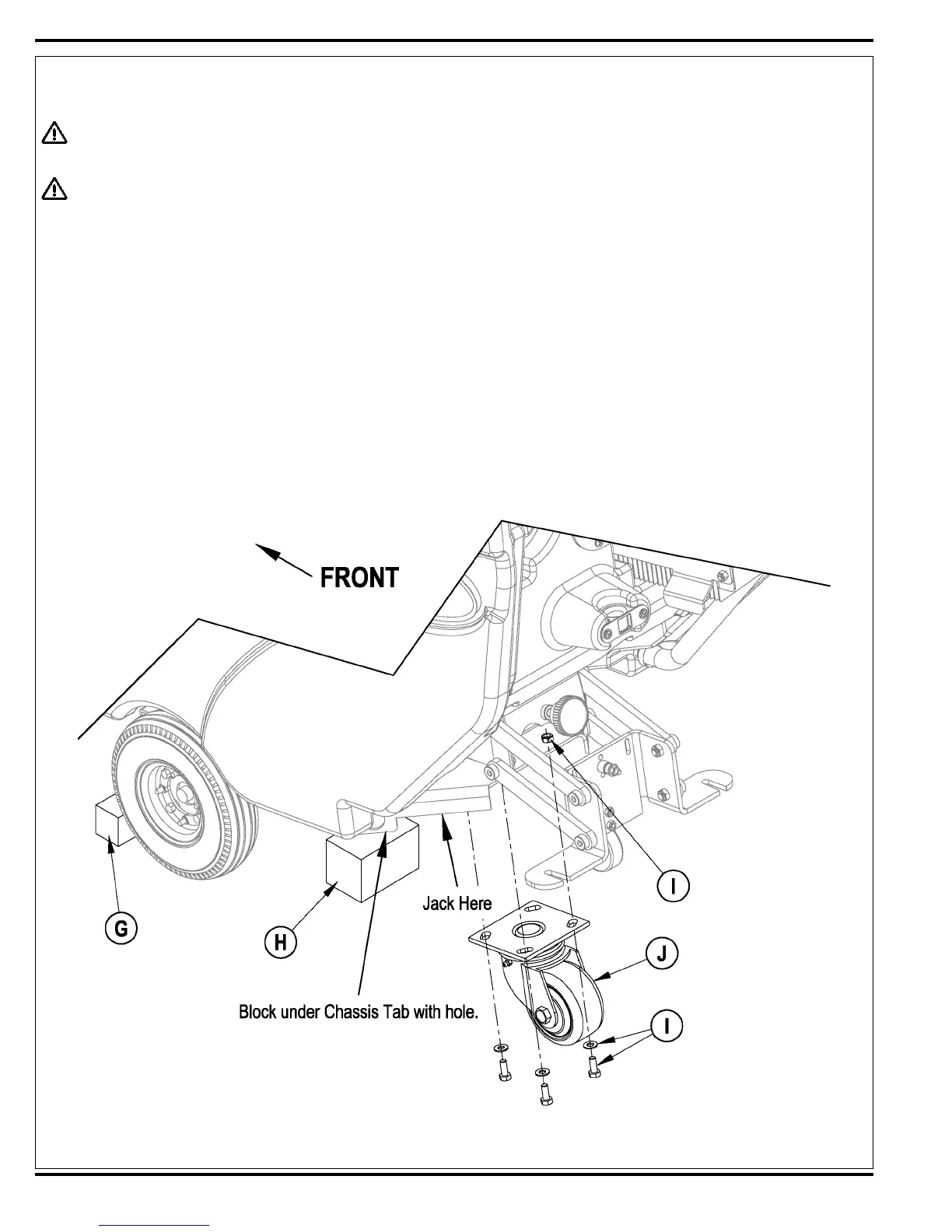

2 See Figure 4. Place Wood Blocking (G) in front of the drive wheels to prevent the machine from rolling.
3 Jack the machine in the location shown until the caster wheel is approximately 1” off the ground.
4 Place Blocking (H) under the chassis tab as shown.
5 Remove the (4) Screws, Nuts & Washers (I) then remove the Caster Assembly (J).
6 Reinstall in reverse order.
