FORM NO. 56043098 - Convertamatic
™
24, 26, 28, 32 / BA 625, 725, 825 - 33
RECOVERY SYSTEM
VACUUM MOTOR REMOVAL
Drain the recovery tank using the drain hose.1
Turn the key off and disconnect the battery pack2
Swing open the recovery tank and disconnect the vacuum motor harness connector.3

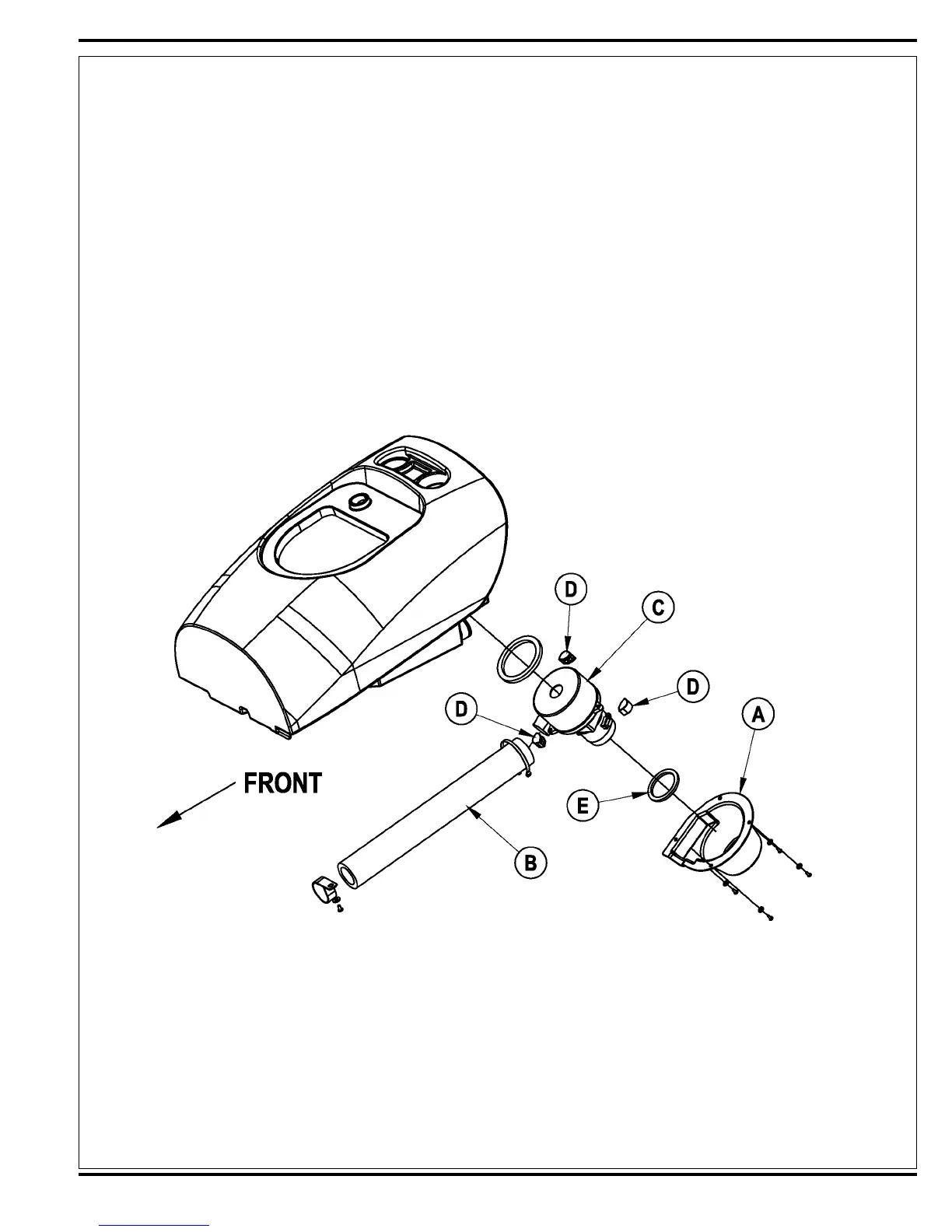

See Figure 5.4 Remove the vacuum motor Shroud Cover (A) secured to the bottom of the recovery tank (qty 4 screws).
Loosen the exhaust hose clamp and remove Acoustic Foam 5 (B) from the vacuum motor discharge tube and completely remove the Vacuum Motor (C) from
its mount cavity. NOTE: Take care not to loose the 3 (D) Vibration Mounts.
Inspect the condition of the Vacuum Motor Gasket 6 (E) inside the vacuum motor mount cavity.
Make service repairs to the Vacuum Motor and re-install by following steps in reverse order.7
FIGURE 5
revised 5/07
