FORM NO. 56043098 - Convertamatic
™
24, 26, 28, 32 / BA 625, 725, 825 - 75

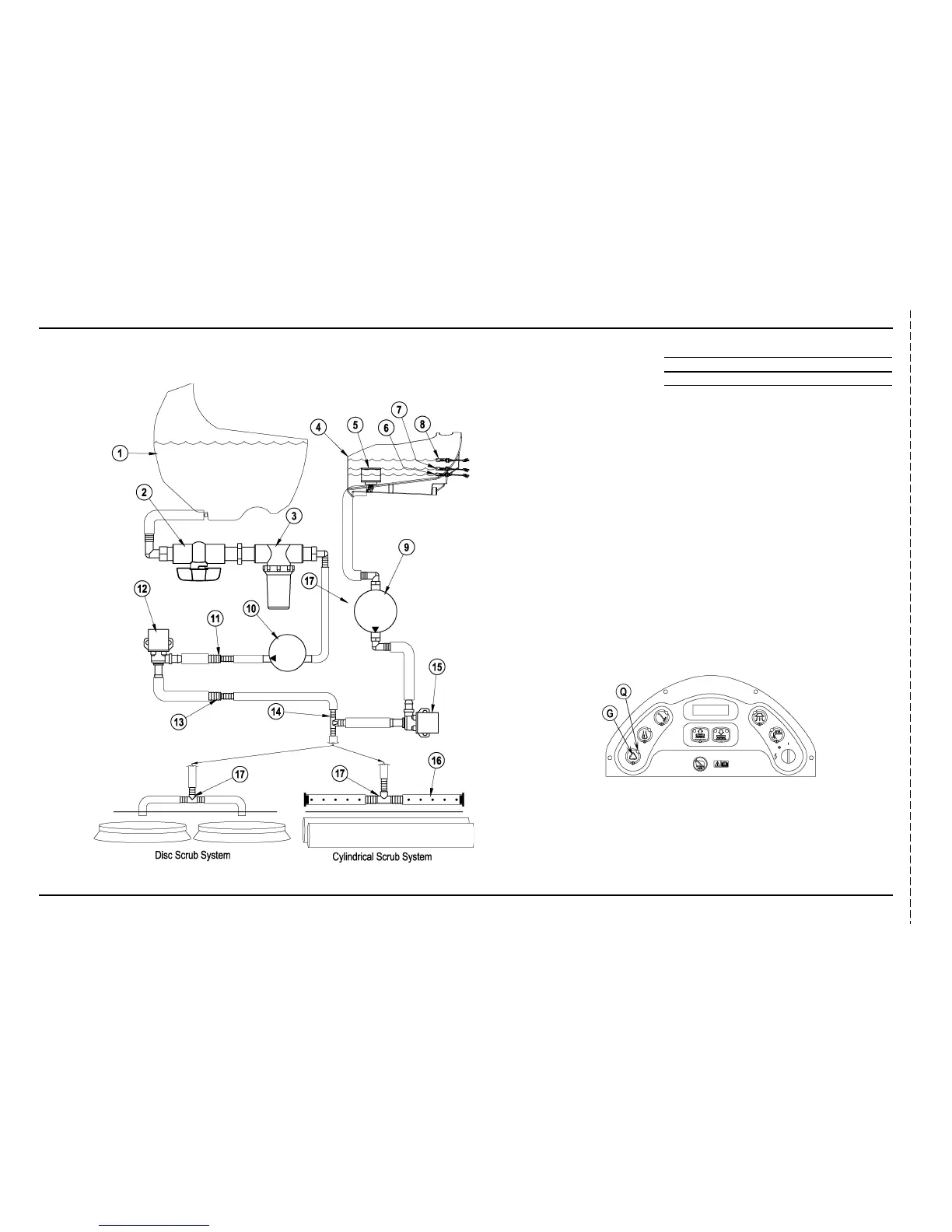

EXTENDED SCRUB SYSTEM PLUMBING SCHEMATIC
APPENDIX
Service Note:
1 After each use, drain and rinse the recovery tank thoroughly and then fi ll the recovery tank with
about 2 gallons (7.57 liters) of clean water.
2 Push and hold the Extended Scrub Button (G) for 3 seconds ( the indicator (Q) will turn green) to
initiate the purge function. The purge will run for 20 seconds. NOTE: This is to fl ush any debris
from the system. If you do not do this, the extended pump and(or) solenoid valve could become
plugged up with debris.
revised 8/05
Item Description
1 Solution Tank
2 Shut Off Valve
3 Inline Solution Filter
4 Recovery Tank
5 Extended Scrub Filter
6 Extended Scrub Stop Switch
7 Extended Scrub Start Switch
8 Vacuum Shut Off Switch
9 Extended Scrub Pump
10 Solution Pump
11 Reducer Coupler
12 Solution Solenoid Valve
13 Reducer Coupler
14 Tee
15 Extended Scrub Solenoid Valve
16 Solution Manifold (Cylindrical Models)
17 Tee
