76 - FORM NO. 56043098 - Convertamatic
™
24, 26, 28, 32 / BA 625, 725, 825
APPENDIX
revised 4/08
DETERGENT (AXP™ / EDS™) SYSTEM PREPARATION AND USE
COMMON INSTRUCTIONS:
The system should be purged of previous detergent when switching to a different
detergent. SERVICE NOTE: Move machine over fl oor drain before purging because
a small amount of detergent will be dispensed in the process.
To Purge When Changing Chemicals:
1 Disconnect and remove the detergent cartridge.
2 Turn the Key Switch (A) ON and press the Detergent Switch (F) and the Solution
Switch (B) down for at least 2 seconds. NOTE: Once activated the purge
process takes 10 seconds. See illustration on next page for Detergent System
indicators. Normally one purge cycle is adequate to purge the system.
To Purge Weekly:
1 Disconnect and remove the detergent cartridge. Install and connect a Cartridge
fi lled with clean water
2 Turn the Key Switch (A) ON and press the Detergent Switch (F) and the Solution
Switch (B) down for at least 2 seconds. NOTE: Once activated the purge
process takes 10 seconds. See illustration on next page for Detergent System
indicators. Normally one purge cycle is adequate to purge the system.
When the Detergent Cartridge is almost empty a Display Panel (D) indicator will come
on. This “Low Detergent” indicator will remain on until you reset the system. Once
this indicator comes on you should be able to simply pour an entire gallon bottle of
detergent into the Cartridge to refi ll without worrying about measuring. NOTE: Only
reset the system when the cartridge is full. When switching cartridges, the “Low
Detergent” indicator is only accurate if the replacement cartridge is at the same level
as the cartridge being replaced.
To Reset:
1 Turn the Key Switch (A) ON and hold the Detergent Switch (F) down for 2
seconds. See illustration on next page for Detergent System indicators.

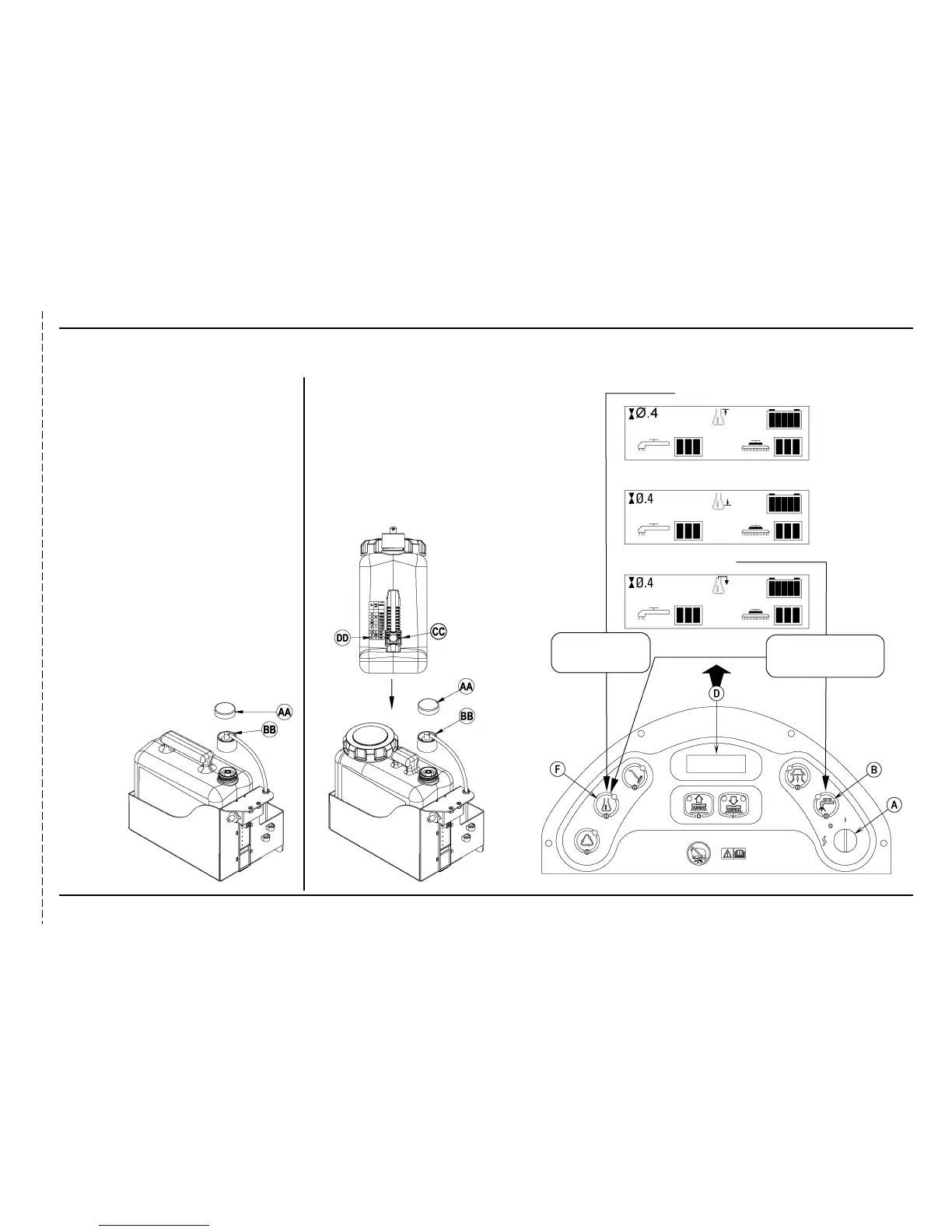

NON-REFILLABLE CARTRIDGE SPECIFIC INSTRUCTIONS:
Remove the Cap (AA) and place the cartridge in the detergent box. Install the Dry
Break Cap (BB) as shown.
REFILLABLE CARTRIDGE SPECIFIC INSTRUCTIONS:
Fill the detergent cartridge with a maximum of 1.25 gallons (4.73 Liters) of detergent. SERVICE
NOTE: Remove the detergent cartridge from the detergent box prior to fi lling to avoid spilling
detergent on the machine.
It is recommended that a separate cartridge be used for each detergent you plan to use. The
detergent cartridges have a white decal on them so you can write the detergent name on each
cartridge to avoid mixing them up. The detergent cartridge has a Magnetic Slider (CC) on one
end that needs to be set to the proper dilution ratio according to the dilution instructions on the
manufacturer’s bottle. Slide the Magnet Slider (CC) to the appropriate location on Detergent
Dilution Ratio Decal (DD). When installing a new cartridge, remove the Cap (AA) and place the
cartridge in the detergent box. Install the Dry Break Cap (BB) as shown.
SERVICE NOTE: Refer to MAIN CONTROL PROGRAMMING OPTIONS, Chemical User Ratio
Selection to electronically program the chemical ratio if your cartridge has no magnetic slider.
FULL (RESET)
DETERGENT LOW
PURGE
Press (F) for 2 seconds to
reset.
Press (F) & (B) for 2 seconds to
purge.
