FORM NO. 56043098 - Convertamatic
™
24, 26, 28, 32 / BA 625, 725, 825 - 37
SQUEEGEE SYSTEM
SQUEEGEE MOUNT ASSEMBLY REMOVAL
1 See Figure 3. Disconnect Squeegee Hose (28) and remove the Squeegee Assembly (12) from the machine.
2 Lower the Squeegee Lever (15) and disconnect the Squeegee Lift Cable (C) from the squeegee mount bracket.
3 Refer to Caster Wheel Removal section to remove the rear Caster (D).
3 Remove Screw (E) and slide the Squeegee Mount Assembly (F) away from the chassis.
4 Service Note: It may be necessary to remove the Squeegee Level Wheel from the Squeegee Mount Assembly for reinstallation.

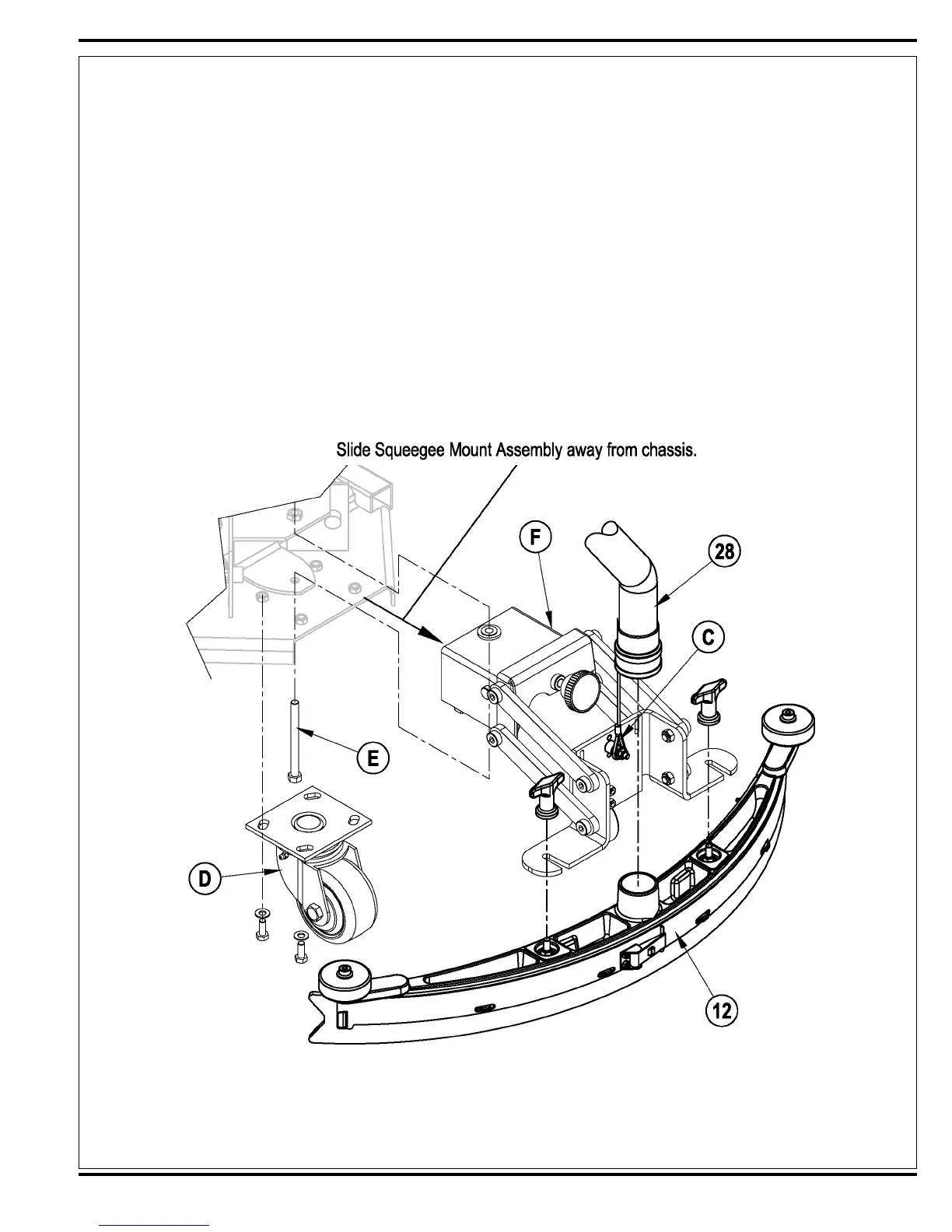

FIGURE 3
