FORM NO. 56043098 - Convertamatic

™

24, 26, 28, 32 / BA 625, 725, 825 - 31

RECOVERY SYSTEM

MAINTENANCE OF RECOVERY TANK FLOAT SWITCHES

If the recovery tank ﬂ oat switch(es) become dirty it can impair their proper operation. A dirty vacuum shut off switch can cause the vacuum motor to not function at

all or to not shut off when the tank is full. Dirty extended scrub system switches can prevent the optional extended scrub system from functioning properly.

If daily rinsing of the recovery tank does not sufﬁ ce to keep the switches clean you may need to remove the ﬂ oat arms for cleaning. The ﬂ oat arms can be removed

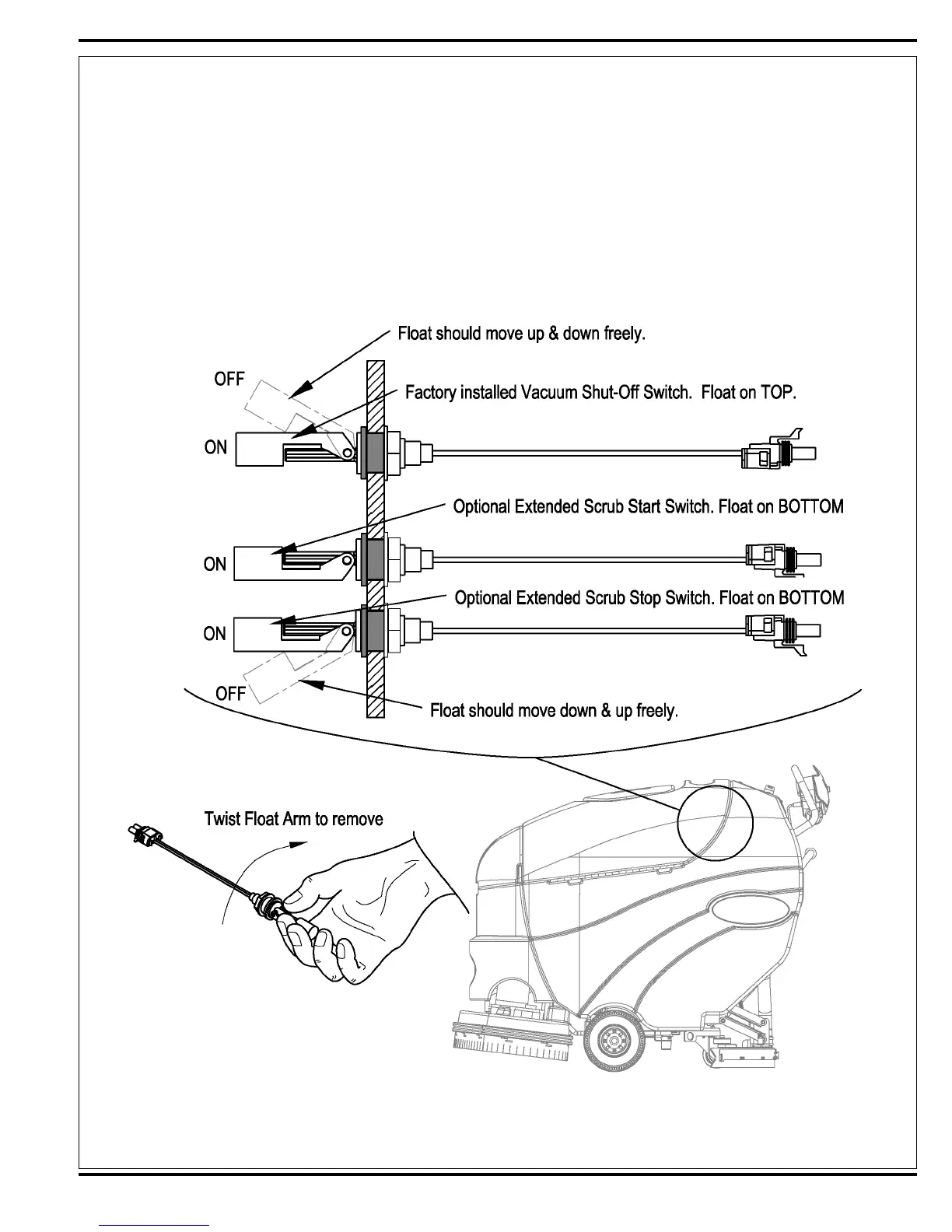

easily by grasping them as shown below and twisting to remove. It is very important that they be reassembled correctly in order to function. See Figure 3 for the

correct orientation of the switch ﬂ oat arms.

FIGURE 3
