8 - FORM NO. 56043098 - Convertamatic
™
24, 26, 28, 32 / BA 625, 725, 825

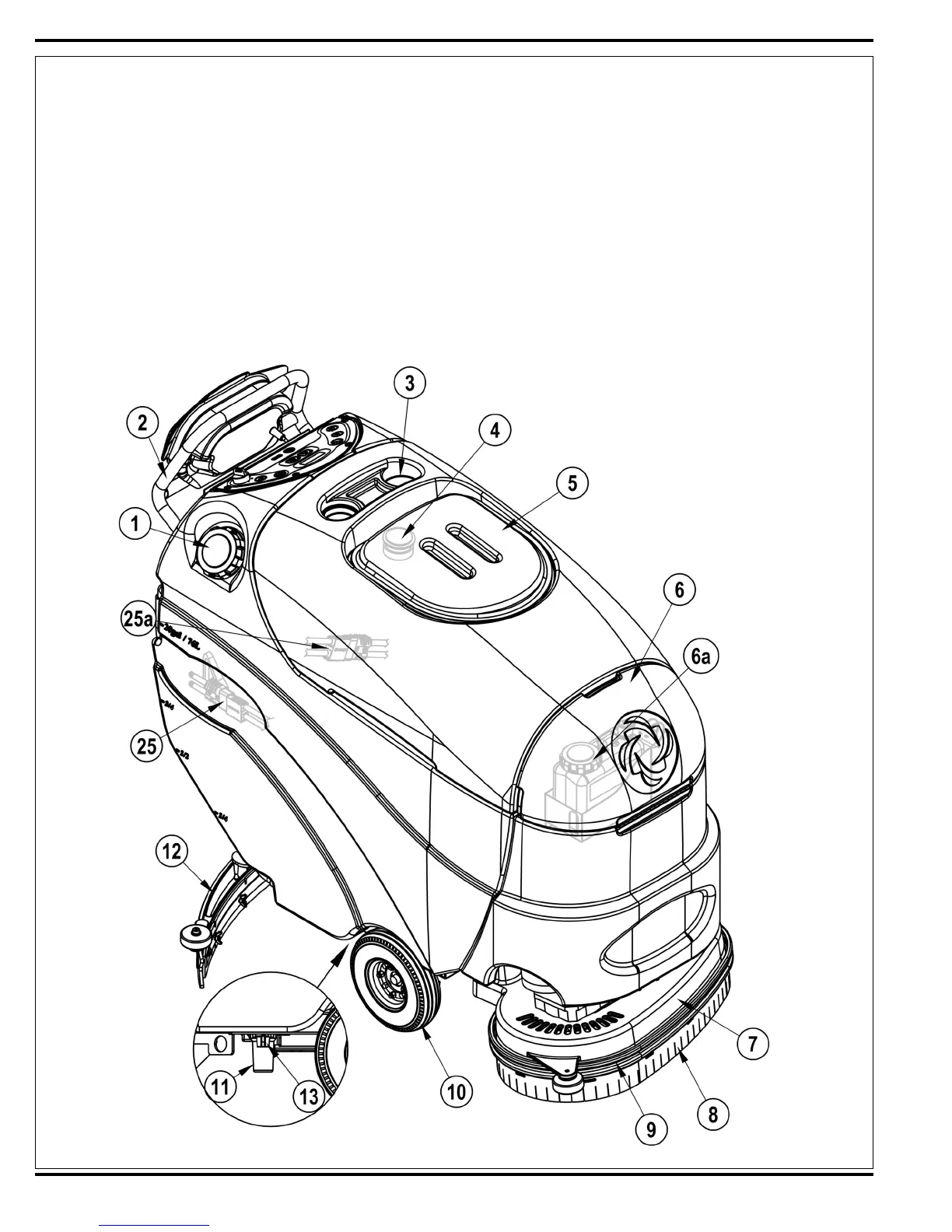

KNOW YOUR MACHINE
As you read this manual, you will occasionally run across a bold number or letter in parentheses - example: (2). These numbers refer to an item shown on this page
unless otherwise noted. Refer back to this page whenever necessary, to pinpoint the location of an item mentioned in the text. NOTE: Refer to the service manual
for detailed explanations of each item illustrated on the next 3 pages.
1 Solution Tank Fill
2 Operator Control Handle
3 Bottle Holders
4 Vacuum Motor Inlet Screen
5 Recovery Tank Cover
6 Detergent (AXP / EDS) Cartridge Access Cover
6a Detergent (AXP / EDS) Cartridge (AXP / EDS models only)
7 Scrub Deck
8 Scrub Deck Skirt
9 Scrub Deck Bumper
10 Drive Wheel
11 Solution Filter
12 Squeegee Assembly
13 Solution Shut-Off Valve
revised 5/07
