FORM NO. 56043098 - Convertamatic
™
24, 26, 28, 32 / BA 625, 725, 825 - 71
Item Description
A1 Control Board
A2 Speed Control
BT1 Battery
F1 Fuse, 150 Amp
F2 Circuit Breaker, 5 Amp
F3 Circuit Breaker, 30 Amp
K1 Contactor, Brush Motor
K2 Contactor, Vac Motor
L1 Solenoid, Solution
L2 Solenoid, Recycle Solution (Optional)
M1 Motor, Wheel Drive
M2 Motor, Left Brush
M3 Motor, Right Brush
M4 Motor, Vac
M5 Motor, Brush Actuator
M8 Pump, Solution
M9 Pump, Recycle (Optional)
M10 Chemical Pump (Optional)
R1 Potentiometer, 5K Ohm, Throttle
R2 Potentiometer, 100K Ohm, Speed Limit
S1 Part of M8
S2 Part of M9
S3 Switch, Key
S4 Switch, Float (Recovery Tank Full)
S5 Switch, Float (Optional / Recycle Start)
S6 Switch, Float (Optional / Recycle Stop)
X9 Battery Disconnect
X10 Battery Disconnect

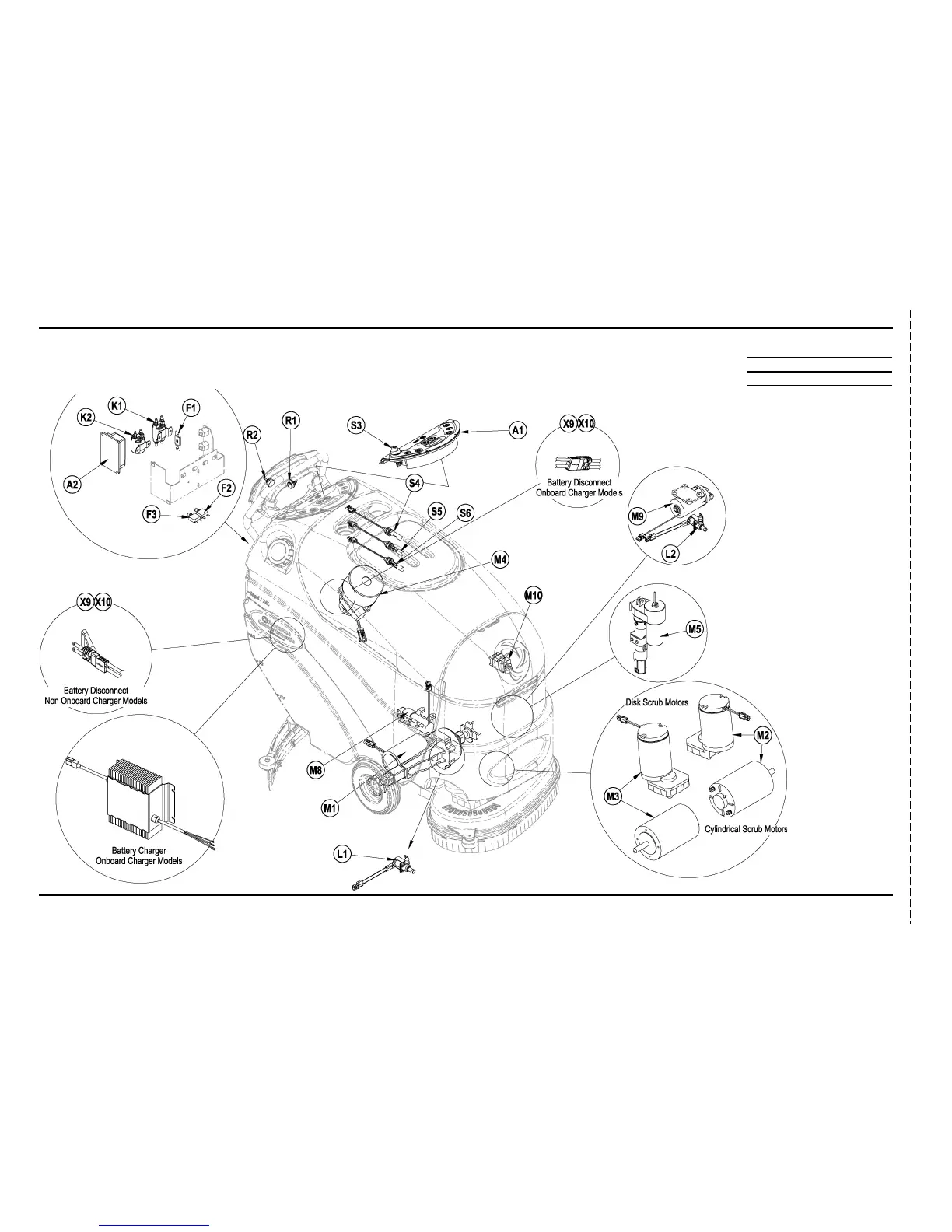

COMPONENT LOCATION
ELECTRICAL SYSTEM
revised 8/05
