FORM NO. 56043098 - Convertamatic
™
24, 26, 28, 32 / BA 625, 725, 825 - 35
SQUEEGEE SYSTEM
SQUEEGEE LIFT LINKAGE ADJUSTMENT
See “Know Your Machine”. The squeegee pick-up tool is raised and lowered manually by a rear control panel mounted Lever (15).
Squeegee Lift Lever Adjustment
The squeegee tool’s storage and operating positions are adjustable. To adjust:
Lower the squeegee assembly to the fl oor.1

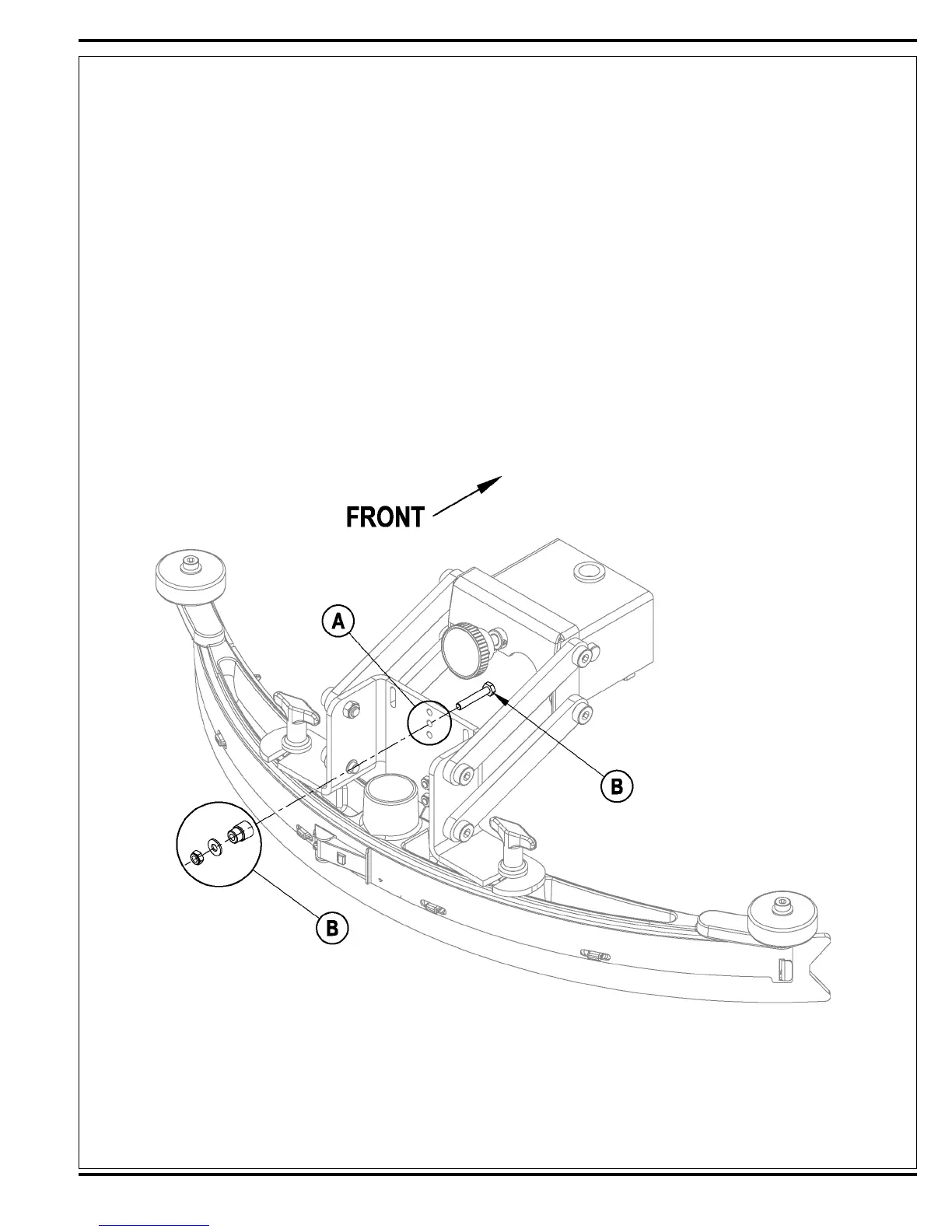

See Figure 1.2 The Squeegee Mount Bracket has (3) Mount Holes (A) for changing the lift cable length.
Remove the Hardware Items 3 (B) from the Squeegee Mount Bracket and place in the one of the other holes.
Observe when the lever is lowered that the squeegee lift cable has ample free play. 4 Note: This allows the tool the proper movement to raise and lower (fl oat)
so the rear blade remains on the fl oor surface through normal adjustments and wear.
FIGURE 1
