Electrical System 42Service Manual – Focus II / Scrubtec R6 Rider Autoscrubber

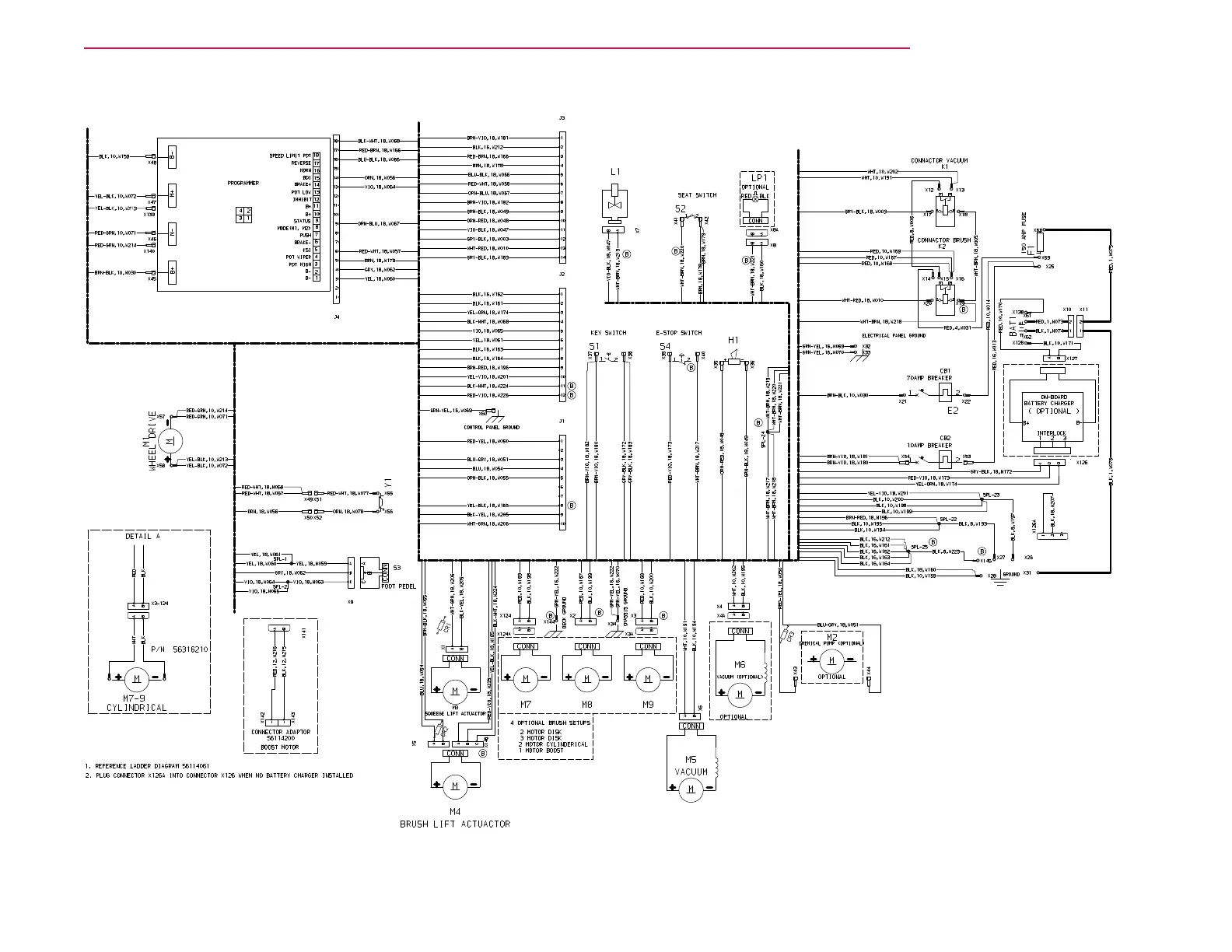

Wiring Harness Diagram: 56114062 Rev B (Early, before machine SN 3000167142)
