Squeegee System 76Service Manual – Focus II / Scrubtec R6 Rider Autoscrubber
Squeegee Lift Actuator
1. Before turning off the machine, go into the Service
Test Mode described on page 22, and lower
the squeegee enough to release tension from the
lifting cable.
2. Turn off the machine and disconnect the battery
to prevent the squeegee lift from inadvertently
being activated.
3. Remove the Recovery Tank described on page
52.
4. For easier access, you may wish to remove the
Scrub Deck described on page 59.

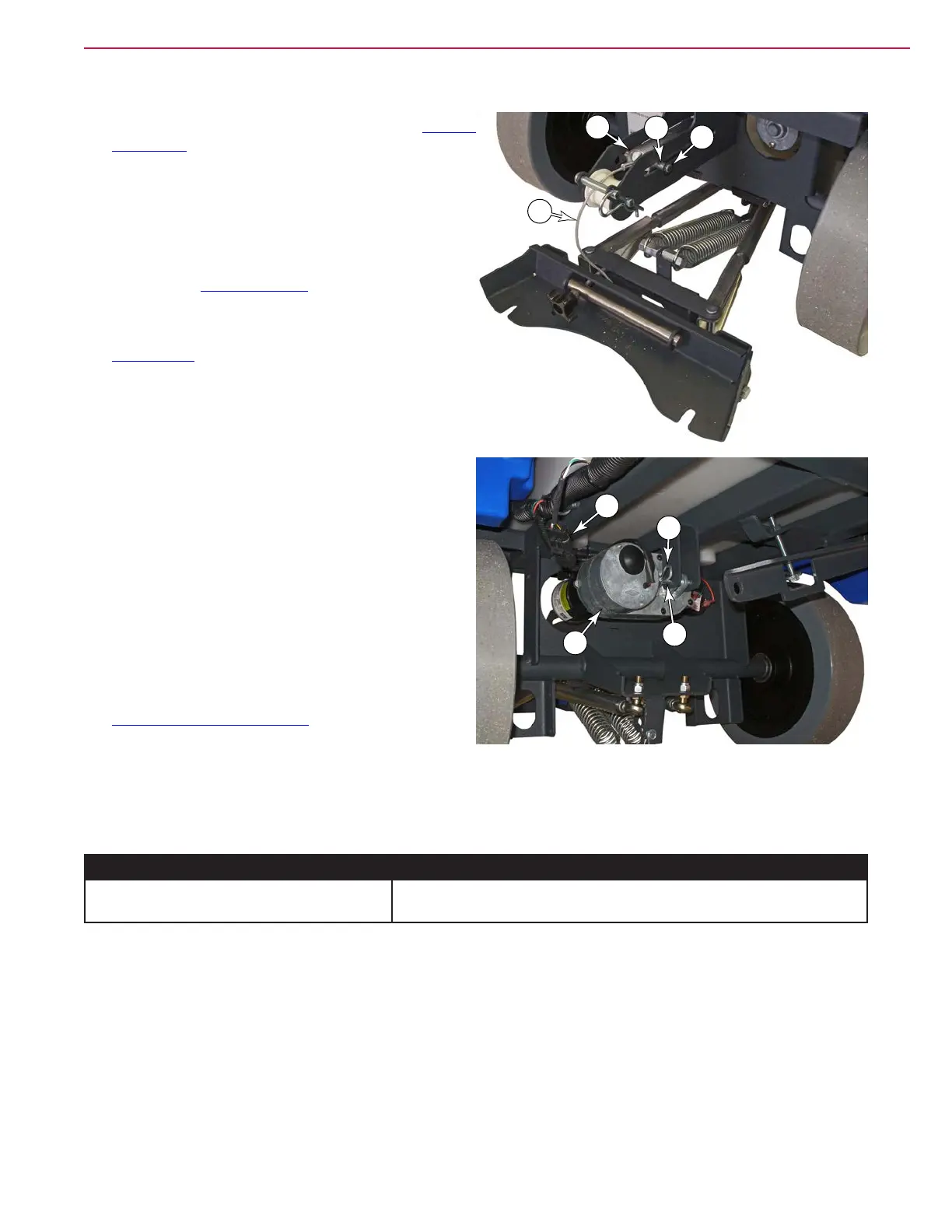

5. Remove the C-clip (11) from the rear guide pin
(12), and remove the pin and lift cable (13).
6. Disconnect the motor cable connector (14).
7. Remove the cotter key (15) from the front guide
pin (16), and remove the pin.
8. Slide the lift actuator (17) out toward the front of
the machine.
Note: If the actuator is being removed for
maintenance that will not require readjusting
the limit positions, then take care not to rotate
the nut (18) with respect to the gear housing
(17).
9. For a new actuator or if the nut was repositioned
with respect to the gear housing, perform the
Actuator Limit Adjustment described on page
73.
10. Reinstall the actuator on the machine by reversing the procedure steps.
Specifications
Parameter Range
Squeegee Lift Actuator Amperage • Raising = 2.2 - 3.4 A
• Lowering = 2.3 - 2.6 A
11
12
13
18
14
15
16
17
To Next Page
