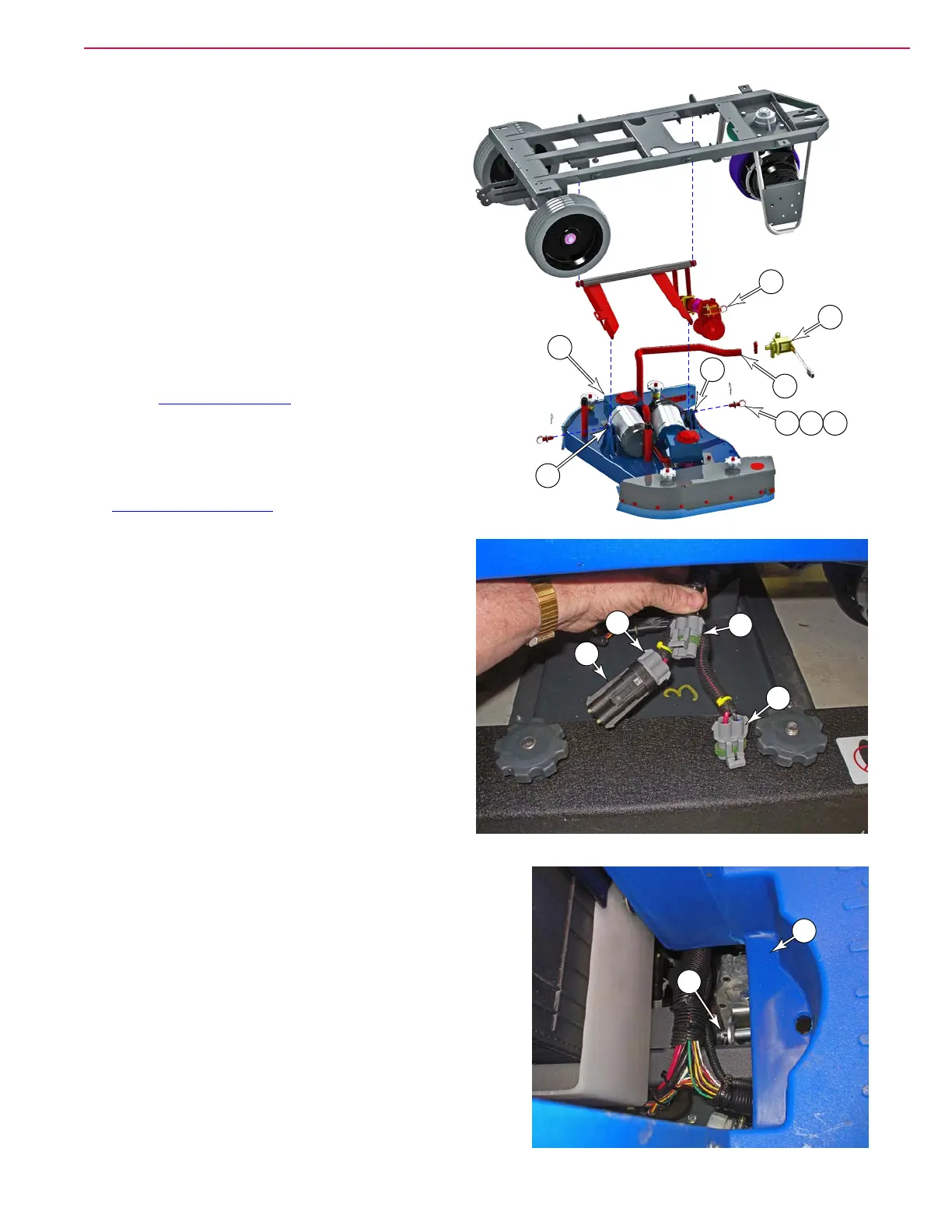

Scrub System: Disc, Cylindrical, & Boost 59Service Manual – Focus II / Scrubtec R6 Rider Autoscrubber
Removal and Installation
Note: Three basic deck types are available for this
machine. When a specic deck type is not
critical to a procedure, it will be given a (1x)
item designation. When a deck type is critical
to a procedure, it will be given a designation as
follows: 3x-Disc, 4x-Cylindrical, and 5x-Boost.
Scrub Deck
Removing the scrub deck may be helpful for
accessing other components. It may also be necessary
to switch from one style/size scrub deck to another.
The same procedure is used for all scrub deck types.
Some images may not match this scrub deck style.
1. Using Service Test Mode described on page 22,
lower the scrub deck to a neutral position on the
oor, and then turn off the key switch (A).
2. For easier access to the upper retaining pin (2A),
and a better view, you may wish to remove the
Electrical Panel Cover described on page 37.
Note: For machines equipped with the onboard
detergent system, this access is behind the
detergent panel instead.
3. Loosen the hose clamp and remove the solution
line (6) from the solution solenoid (7) located on
the right-hand side of the machine.
4. Disconnect the scrub brush motor power
connector(s) (8), and free up the cables from any
cable ties.
Note: During reassembly, make sure unused motor
plugs are tted with protective caps (9).
5. Depending on the deck type and the arrangement of the
deck pins (1B), it may be necessary to remove the upper
retaining pin (2A) from the Deck Lift Actuator (2) and
move the actuator slightly to the side.
The easiest way to access the upper pin (2A) is from
below, but while looking through the opening behind
the electrical panel (or detergent cartridge) (10).
Take care not to rotate the actuator (2) while it is
disconnected, as this will effect its adjustment.
2
1A
7
1B 1C 1D
1A
1
6
8
8
8
9
2A
10
