Control System 20Service Manual – Focus II / Scrubtec R6 Rider Autoscrubber
Navigating the Hidden Menus

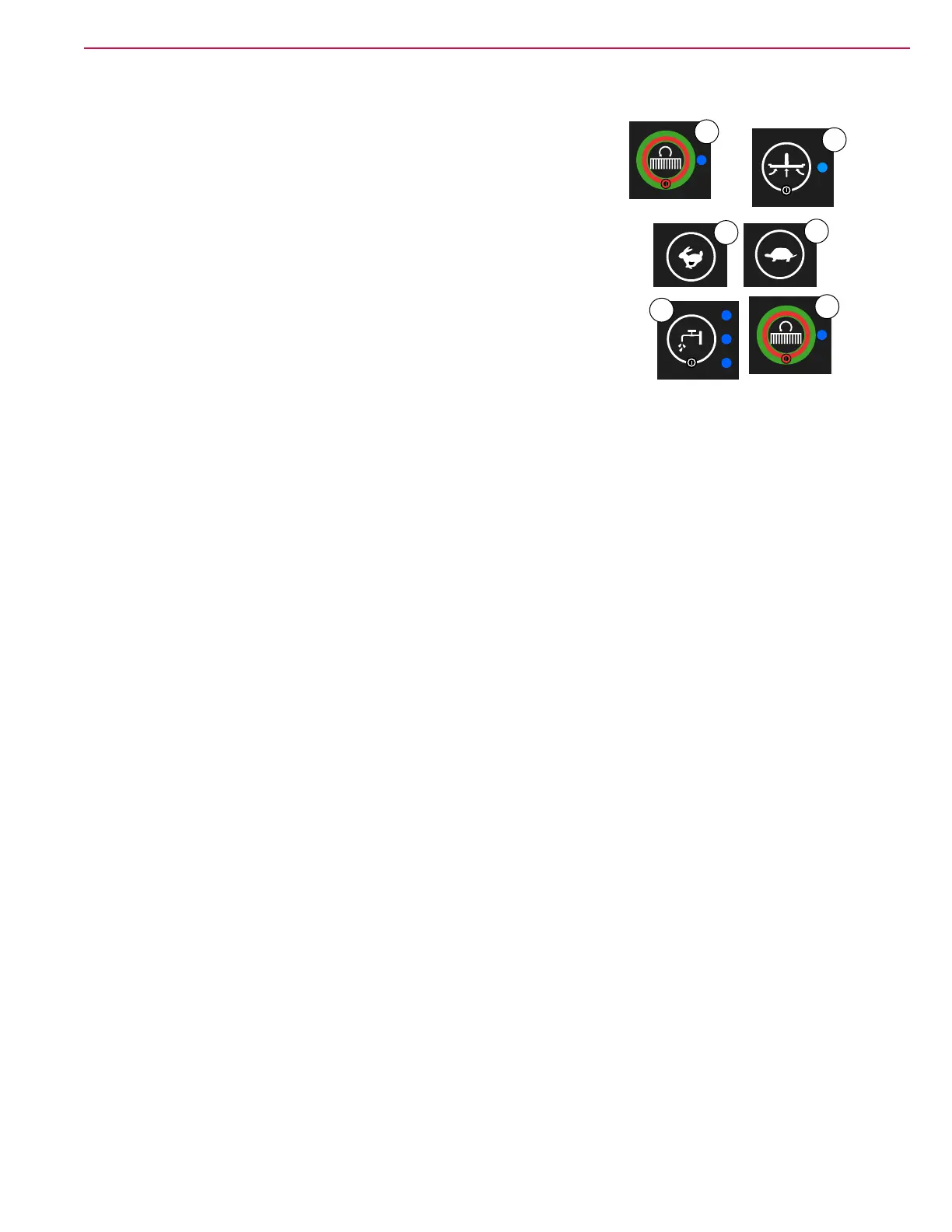

To enter the hidden menus, press and hold the Scrub (M) and Vacuum
(Q) switches for 2 seconds while turning the key switch (A) to the On
position. After 2 seconds, the display will show the rst menu item,
“1. Deck Type”, and you can release the switches.
M
Q
Use the Speed Increase (E) or Speed Decrease (D) switches to scroll
through the menus and submenu options.
E
D
Use the Solution switch (O) to enter a submenu. Use the Scrub switch
(M) to exit a submenu. The submenu option displayed on-exit will be
saved to memory.
To save the changes and exit the hidden menus, turn the key switch to
the off position.
To abort changes, turn the key switch (A) to the off position without
exiting the submenu.
O
M
Deck Type
To ensure proper operation of the motor(s), the controller needs to know what type of deck is installed on the
machine. The options are: 28” Boost, 40” Disk, 34” Disc, 28” Cyl., 28” Disc. This parameter must be set when
replacing the Main Machine Controller.
Battery Charger
If no onboard charger is present or the Delta-Q IC650 is installed, this parameter must be set to “None”.
If the machine is equipped with the optional S.P.E onboard battery charger, then the controller needs
to know the type of batteries installed in the machine. This information is communicated from the Main
Machine controller to the S.P.E battery charger, so that it uses the correct charging prole for the batteries.
If the installed batteries are rated for 150 amp-hour (or less) discharge, then a 15-amp charging rate must be
selected.
Chemical (Detergent) Selection
The detergent selection menu is used to disable the detergent system or to set the display type for the
detergent ratio.
• Onboard Chemical, activates the onboard detergent system.
• No Onboard Chemical, disables the onboard detergent system.
Detergent Mode
This function is not currently available.
• 1. Off
To Next Page
