Chassis System 15Service Manual – Focus II / Scrubtec R6 Rider Autoscrubber
Chassis System
Functional Description
The chassis system consists of a tubular frame that provides the main substructure for the rest of the
machine. To support the concentrated weight of the batteries, the battery box rests directly on the chassis.
The solution tank bolts to the chassis to support the tank and make it more rigid.
The forward drive wheel is connect to the frame through a thrust bearing block for rotational movement. An
integral (welded) rear axle through the frame transfers the load of the machine to the rear idler (non-driven)
wheels.
The scrub deck lift actuator and linkages mounts to the underside of the frame. This assembly is not
normally removed from the system during maintenance. Similarly, the squeegee lift mechanism mounts
directly to the underside of the frame via ball joints that permit vertical and lateral movement.

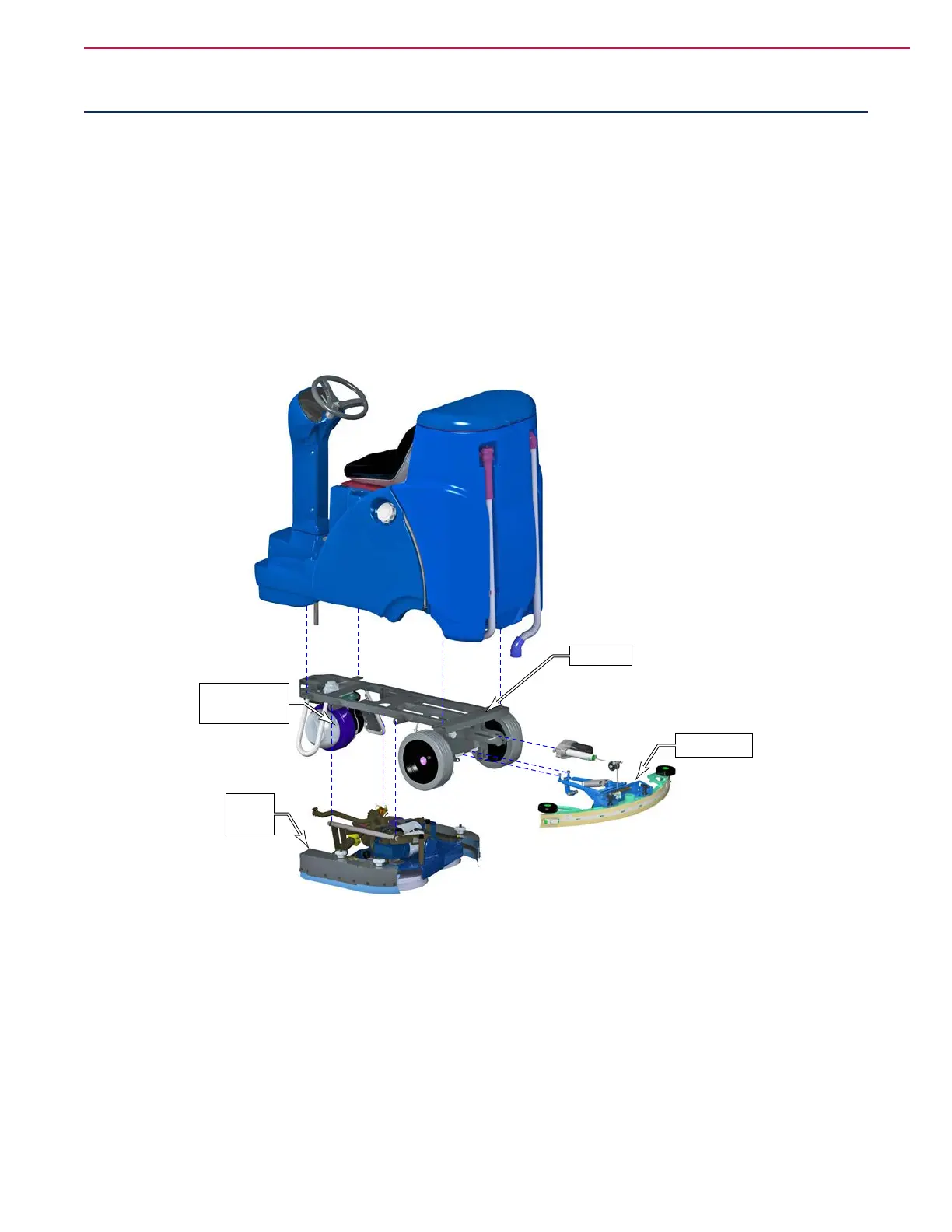

Squeegee
Chassis
Scrub
Deck
Drive Wheel
and Motor
