Wheel System, Non-Traction 77Service Manual – Focus II / Scrubtec R6 Rider Autoscrubber
Wheel System, Non-Traction
Functional Description
The non-traction wheels are intended
to carry the majority of the machine’s
weight. The wheels are strategically
located below the battery compartment
and between the recovery and solution
tanks. The non-traction wheels are
connected directly to the machine’s
subframe.
Removal and Installation
Warning: Never work under machine without safety stands or
blocking to support the machine.
1. To reduce the weight of the machine, drain both
the recovery and solution tanks.
2. Jack the rear of the machine and block both
sides of the machine at the rear lifting points (5)
near the wheels to keep the machine stable and
prevent it from rolling.
3. Remove the bolt (2) and washer (3) that secure
the wheel to the axle (4), and remove the wheel.

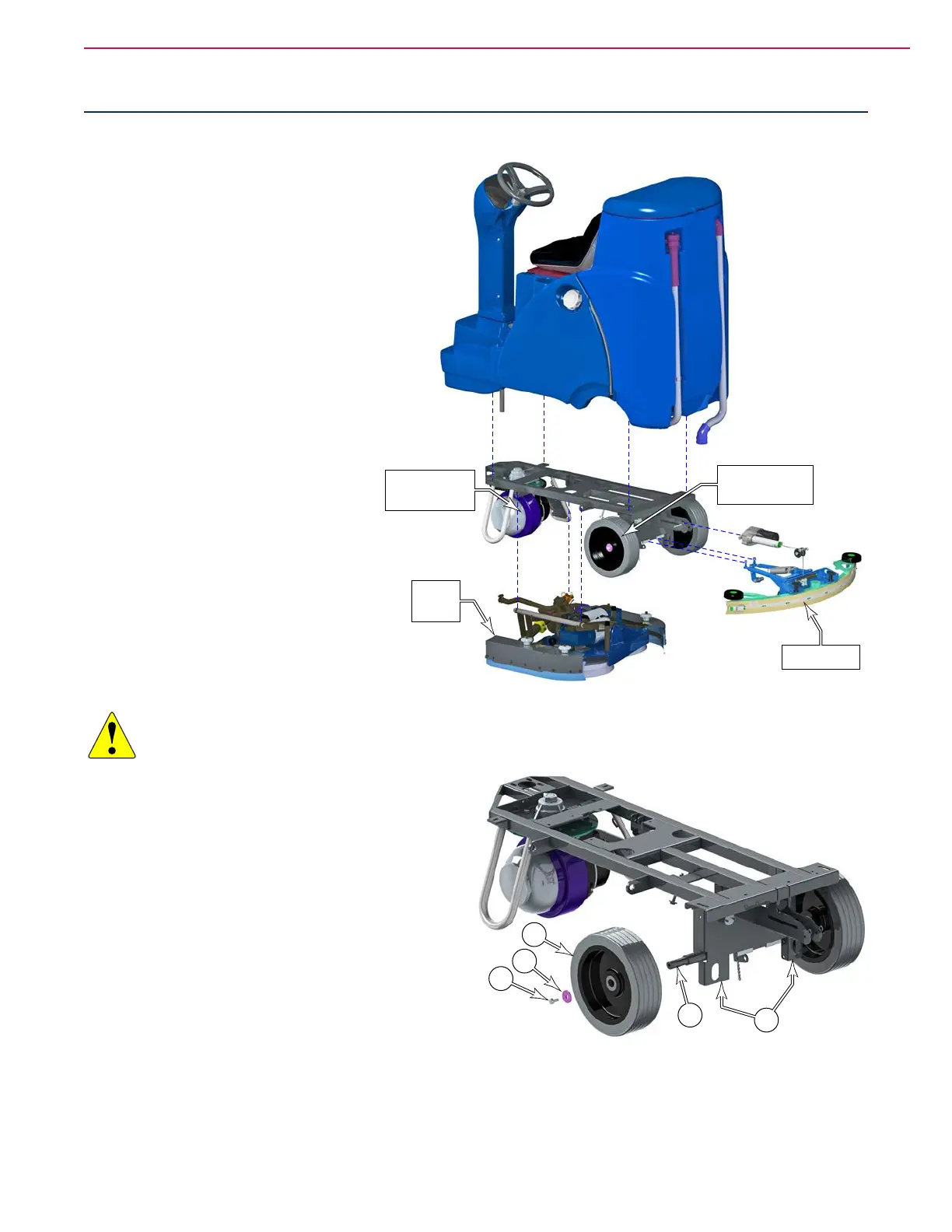

Squeegee
Non-Traction
Wheels
Scrub
Deck
Drive Wheel
and Motor
4
1
3
2
5
To Next Page
