Electrical System 37Service Manual – Focus II / Scrubtec R6 Rider Autoscrubber
• Position the cables so the battery caps can be easily removed for battery service.
• Take care to not over torque the cable connector, as this may damage the battery post.
7. Coat the terminals with spray-on battery terminal coating (available at most auto parts stores).

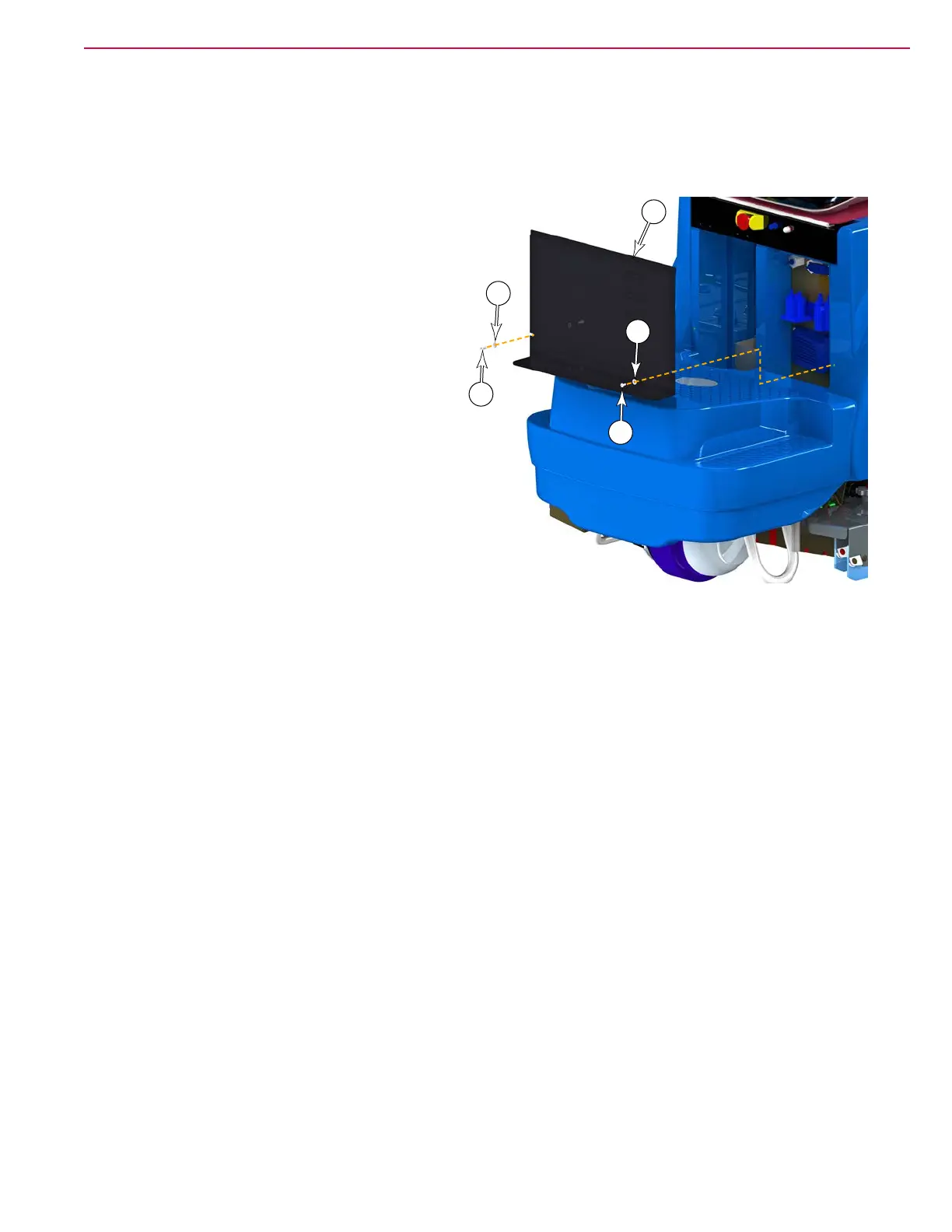

Electrical Panel Cover
This is a prerequisite procedure for completing
other procedures that require access to the
electrical panel.
1. Turn off the key switch and disconnect the main
battery connector (1).
2. Remove the two screws (3) and washers (4) that
secure the panel cover, and remove the cover.
Specifications
Wet Cell Battery Specifications:
• Use a combination of multiple 6-volt units to construct a 24 Volt DC battery pack system.
• Advance recommended battery pack capacity is a 305 AH @ 20 Hour Rate deep cycle battery system.
Note: The battery pack must t the battery compartment size listed in Specications.
Wet Cell Battery Charger Specifications
• Use a 24 Volt DC output charger matching the DC battery pack voltage and the input AC line voltage
supply being used.
• When selecting a battery charger always follow the recommendation of the battery supplier to match the
proper charger DC output amperage to the amp/hour rating batteries being installed. This will prevent
the battery pack from being over or under charged.
Wiring Diagrams
“Early” machines were built to accept the S.P.E. battery charger. These may have been modied to accept
the Delta-Q IC650 battery charger. “Late” machines were built to accept the Delta-Q IC650 battery charger.
The difference in the wiring diagrams is around the charger interlock circuit. If the machine you are working
on, has a Delta-Q battery charger, use the “late” diagram. If it has the S.P.E charger, use the “early”
diagram. If there is no charger, determine the correct diagram on the basis of the serial number.
