Solution System 70Service Manual – Focus II / Scrubtec R6 Rider Autoscrubber
Detergent Pump
1. Turn the key switch to the off position.
2. Remove the detergent bottle from the machine.

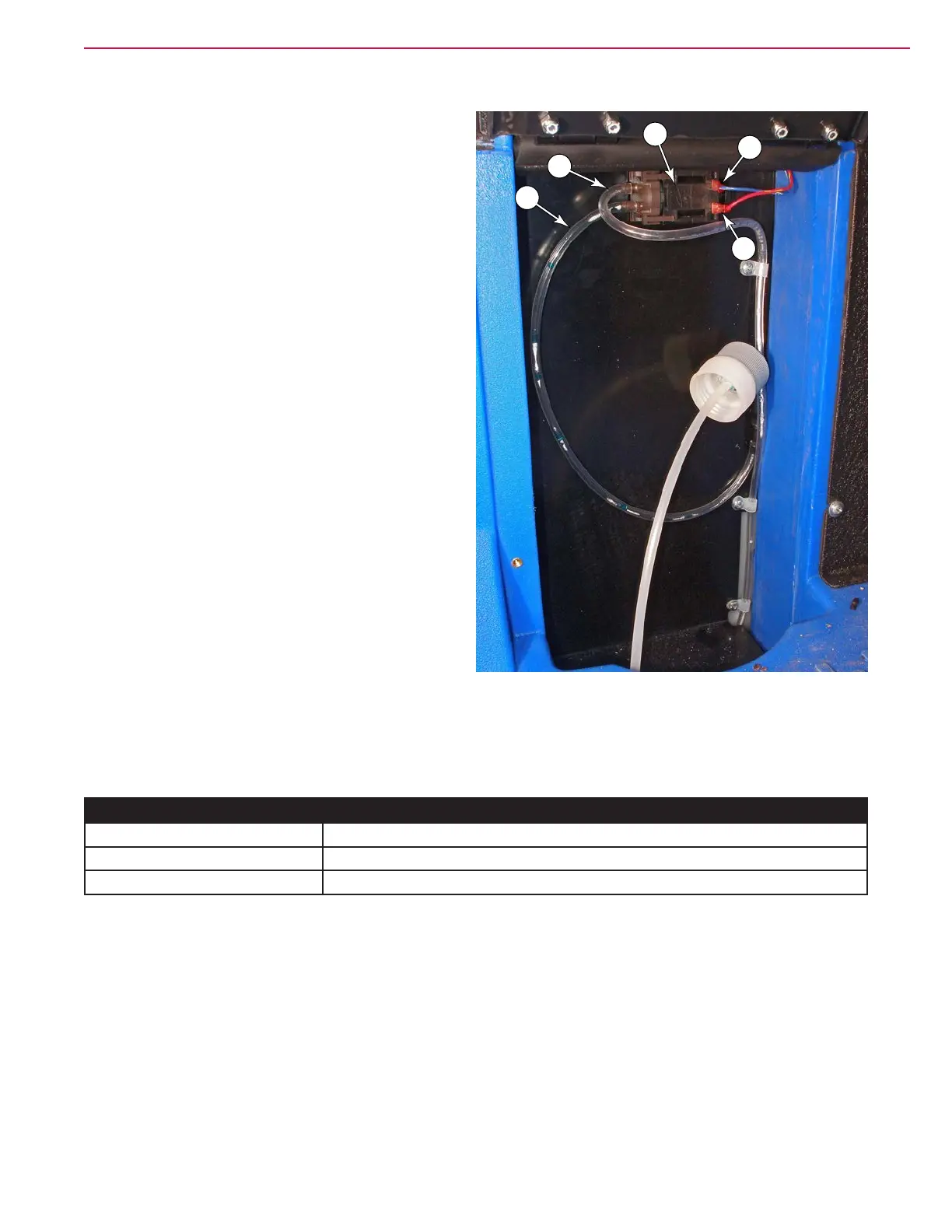

3. Make note about which hose is connected to each
port of the pump.
4. Make note of which wire is connected to each
terminal of the pump.
5. Disconnect the hoses (10 & 11) and wires (12 &
13) from the pump (9).
6. Raise the operator’s seat and remove the two
screws that secure the pump to the detergent
bulkhead, and remove the pump.
Note: Take care when tightening the pump mounting
screws. Overtightening can strip the holes in
the pump housing.
Specifications
Parameter Range
Solution Solenoid Resistance • 33.5 Ω
Detergent Pump Resistance • 39.9 Ω
Maximum Solution Flow • 6 L/Min, unrestricted
