Squeegee System 74Service Manual – Focus II / Scrubtec R6 Rider Autoscrubber
Removal and Installation

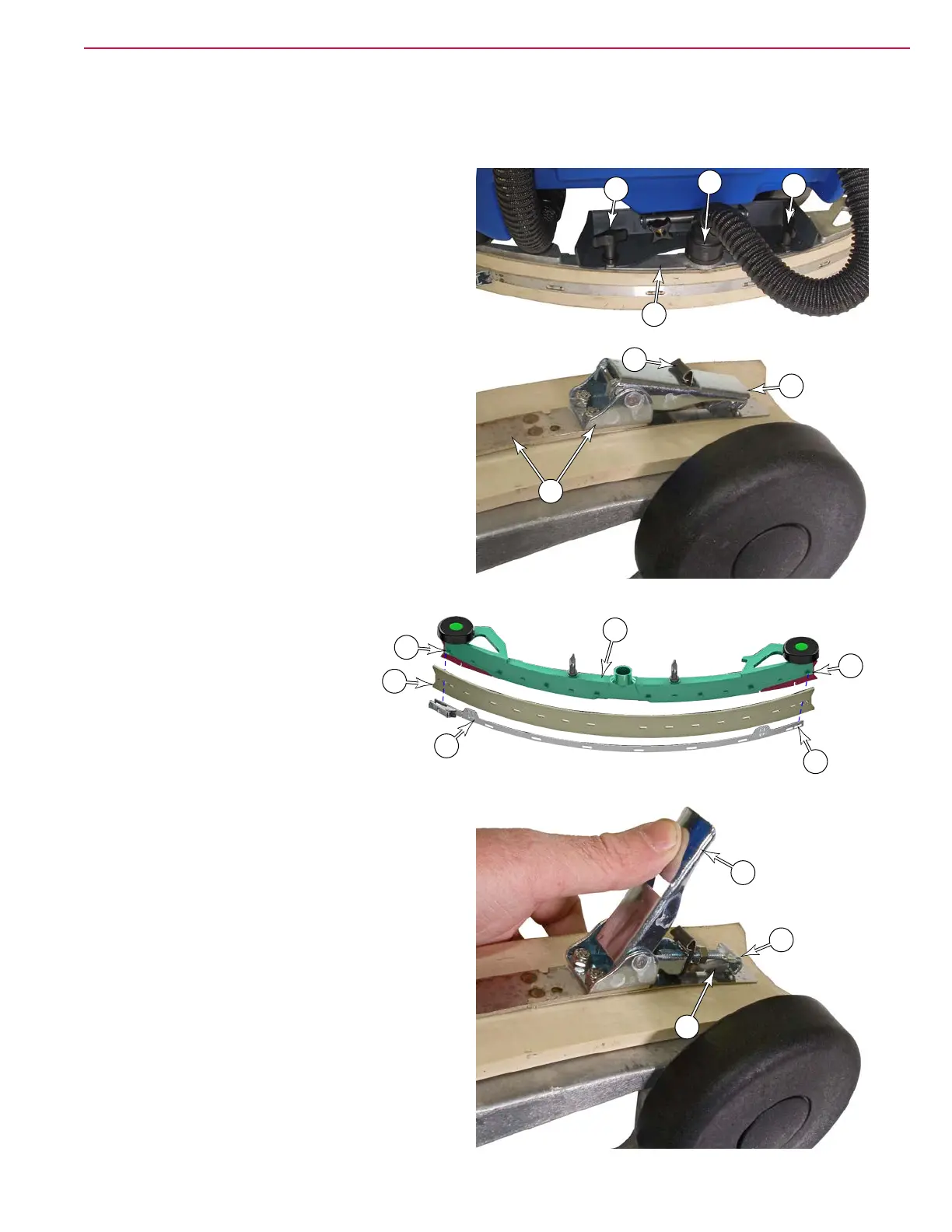

Rear (main) Squeegee Blade Reversal or Replacement
1. Remove the suction hose (2) from the squeegee
body (1).
2. Loosen the two thumbscrews (3) that secure the
squeegee body (1) to the machine, and remove the
squeegee body.
3. Press forward on the latch release (4A) and lift
up on the latch handle (4B), and remove the
retaining strap (4).
4. Lift the rear squeegee blade (5) off the squeegee
body (1).
• The squeegee can be rotated and/or ipped 3 times
to expose a new edge (4 edges total) to the lower-
front. If all 4 edges are worn, replace the squeegee
blade (5) with a new one.
5. To replace the blade (5), align the slots in the
blade with the tabs on the squeegee body (1).
6. Hook the last slot (4D) of the retaining strap (4)
over the hooked tab (1B) of the squeegee body.
7. Place the latch hook (4C) over the hooked tab
(1A) of the squeegee body, and close the latch
handle (4B).
2
3
3
1
4
4A
4B
1
1A
1B
5
4
4D
4B
4C
1A
