Recovery System 52Service Manual – Focus II / Scrubtec R6 Rider Autoscrubber
Removal and Installation

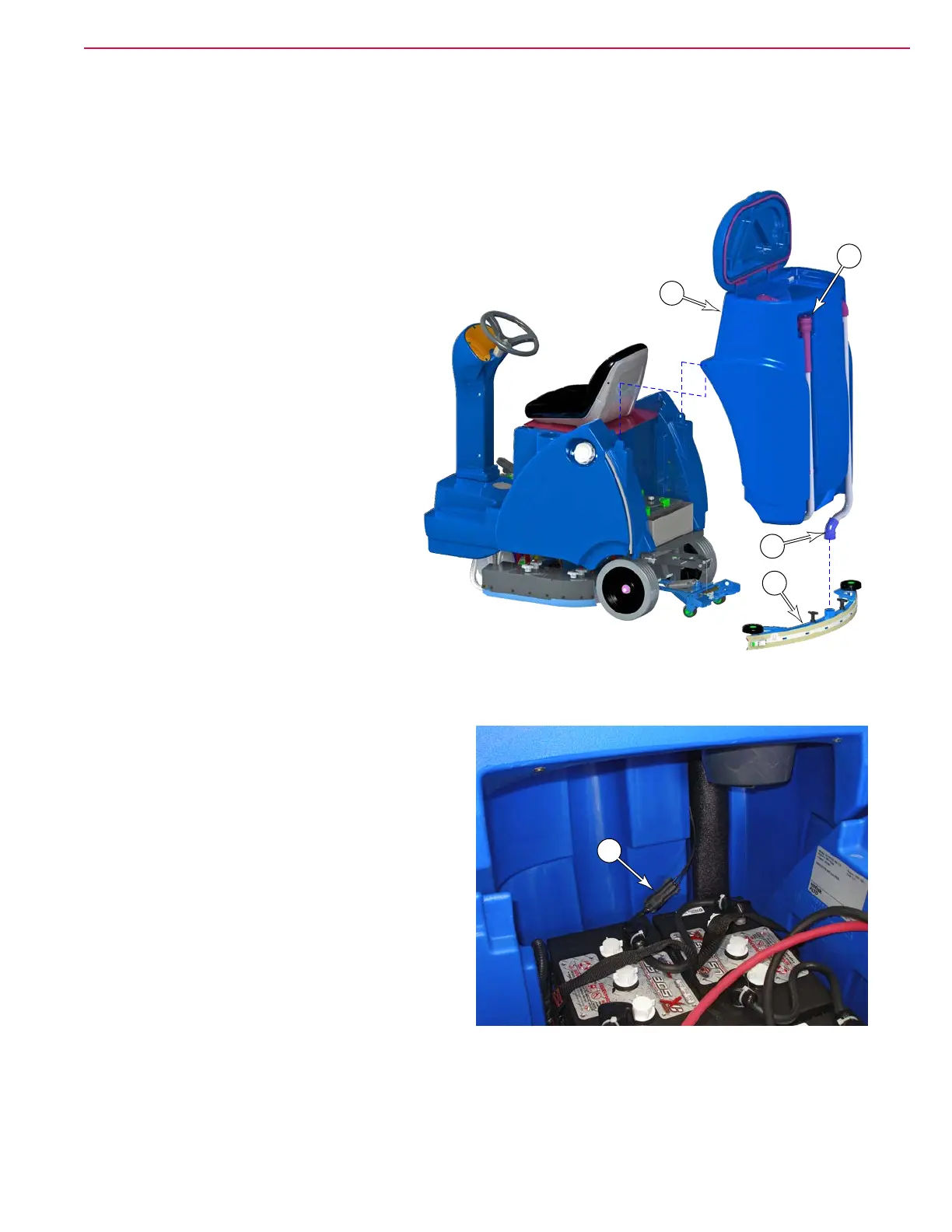

Recovery Tank
Removing the recovery tank is generally a prerequisite procedure for completing other maintenance
procedures and gain access to other components.
1. Turn off the main key switch.
2. Remove the drain hose cap (2), and drain
the recovery tank. You may also wish to
rinse and ush the tank before removing
it.
3. Lift the operator’s seat and disconnect the
power connector (5) for the vacuum motor.
If there are two vacuum motors, make
sure to disconnect both of them.
4. Remove the suction hose (3) from the
squeegee (4).
5. To protect the squeegee from inadvertent
damage, you may wish to remove it from
the machine.
6. Lift the recovery tank off the main
machine.
1
4
2
3
5
To Next Page
