Connections
I O
Main switch to turn the ST730T ON or OFF.
Mains Connection
• Mains connection (6), single-phase with protective earth (2P + E) (Fig. 1).
• 100, 115V, 230V / 50 - 60 Hz
• Maximum power consumption 100 VA
• Fuses:
100 VAC - 115 VAC = 2 x 0.630 A/T
230 VAC = 2 x 0.315 A/T
To set the mains voltage and to change the fuses, see page 12
Remote Control
RS 232 C
Port to connect the ST730T with a PC.
Switch
Connection for a foot switch.
Electromagnetic Immunity (EMI)
Only specially designed cables must be used to make sure that the EMI require-
ments are fulfilled and thus ensuring the reduction of interference. In addition, the
interface connectors (D-Sub) have to be properly fastened.

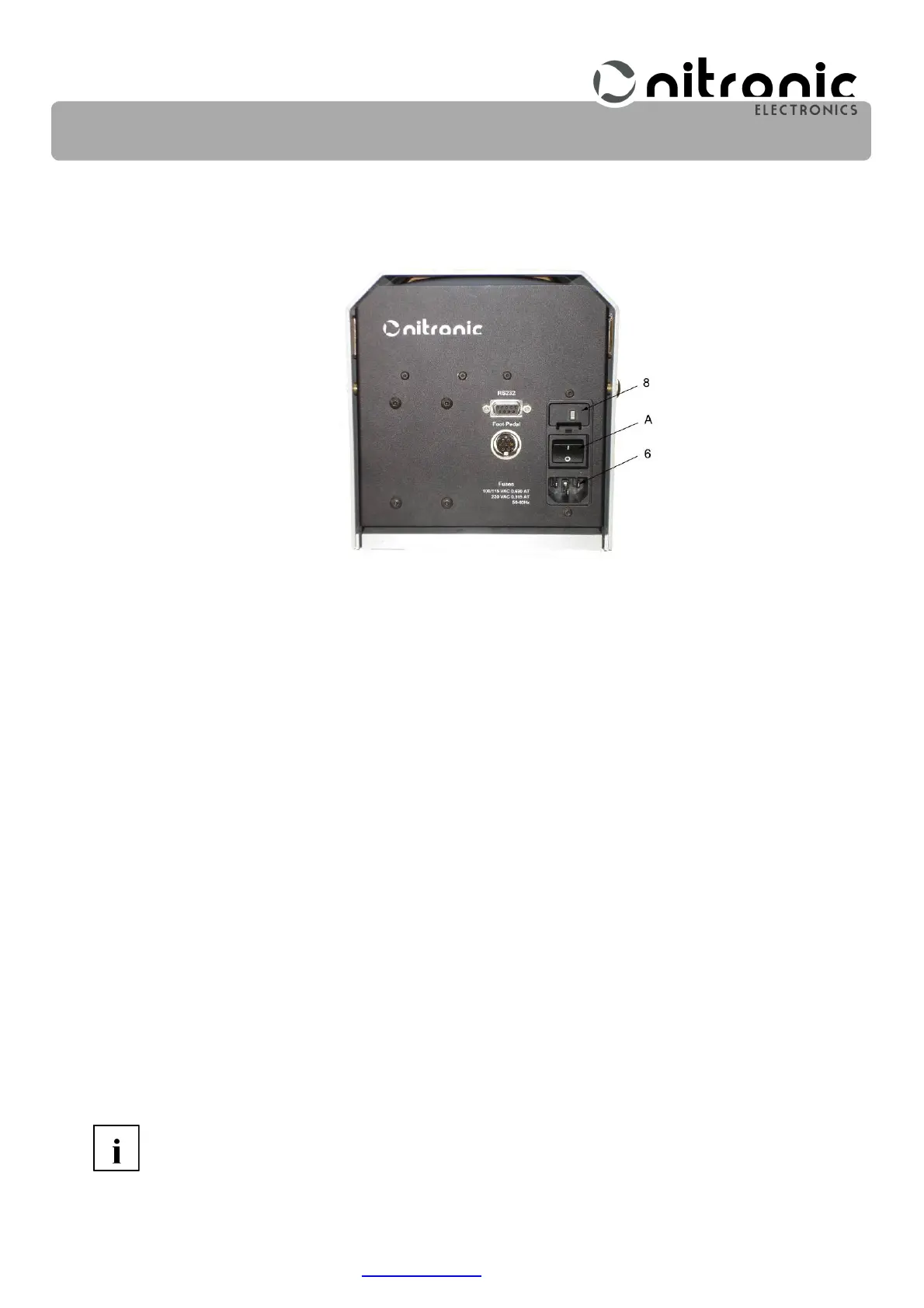

Fig. 1. Rear panel
