Centering the centralizers
Turn OFF the machine and disconnect the mains cable.
• Remove the safety cover (2) (Fig. 2, page 11).
• Remove the housing screws (31) and remove housing (17) (Fig. 2, page 11).
• Tilt back the electronic part.

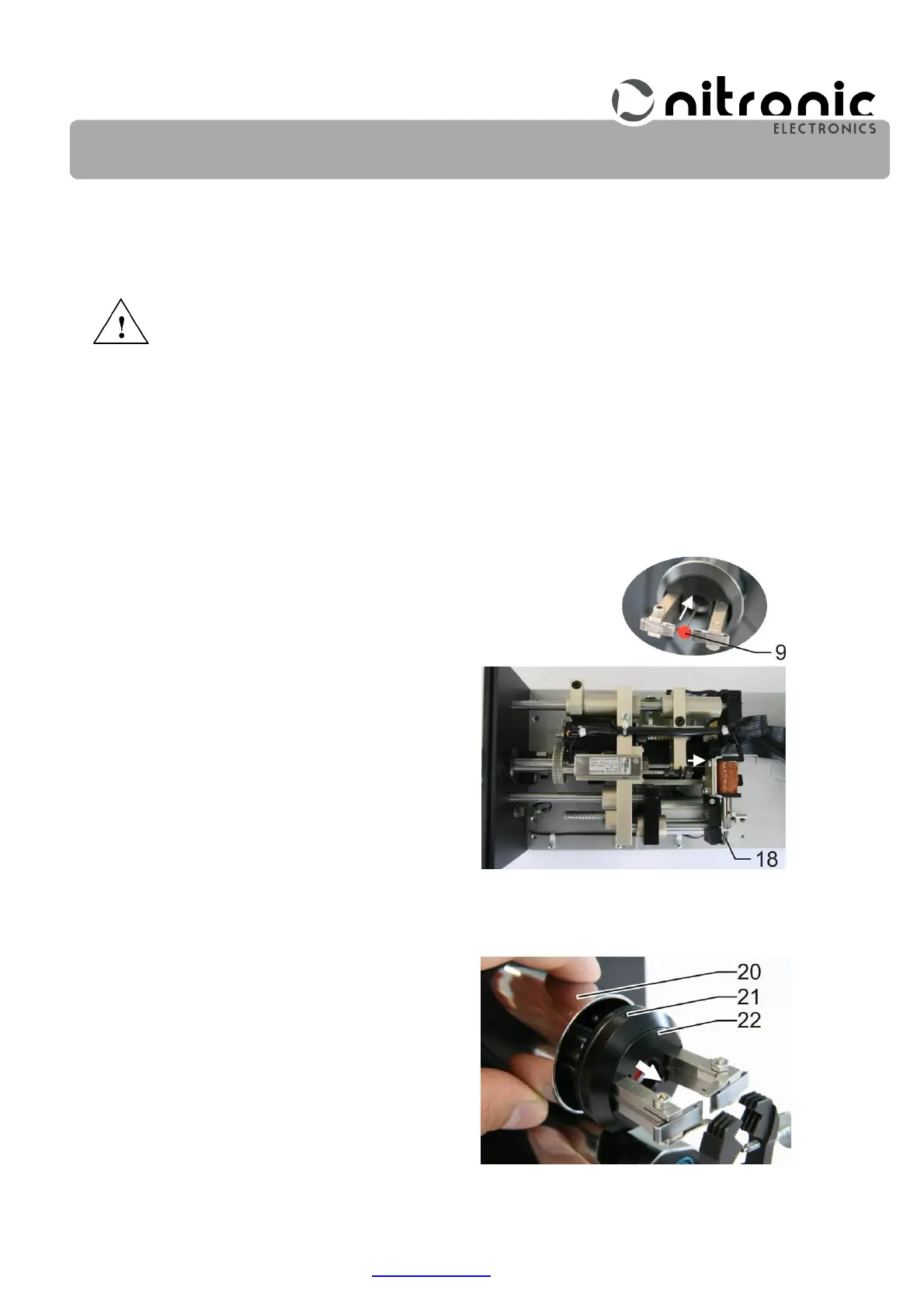

• Unhook spring (18) and push back the trigger
contact (9).
• Push back protective sleeve (20) and remove
screw (21) on protective ring (22) (Fig. 14).
Pull protective ring (22) forward (Fig. 14).
Fig. 13. Trigger contact
Fig. 14. Pull off protective ring
