The GPS components are located on the bottom side of the PWB. Satellite signals are picked up by the
Bluetooth/WLAN/GPS antenna in the top end cap. The signal is then routed through a diplexer before being
processed by the GPS5350 receiver ASIC.

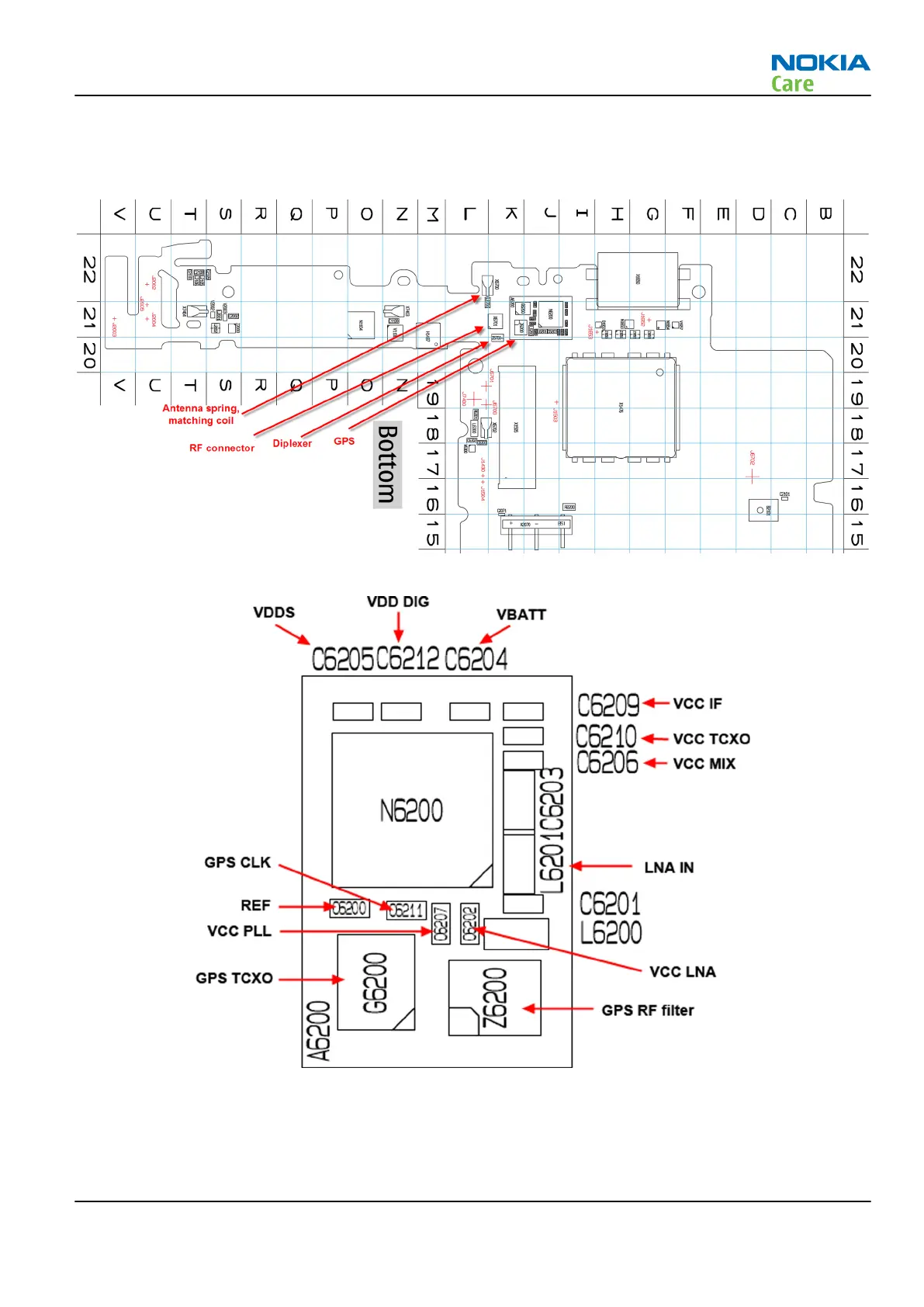

Figure 18 Component layout, bottom side
Figure 19 GPS layout and basic test points
RM-596
BB Troubleshooting and Manual Tuning Guide
Issue 2 COMPANY CONFIDENTIAL Page 3 – 79
Copyright © 2010 Nokia. All rights reserved.
