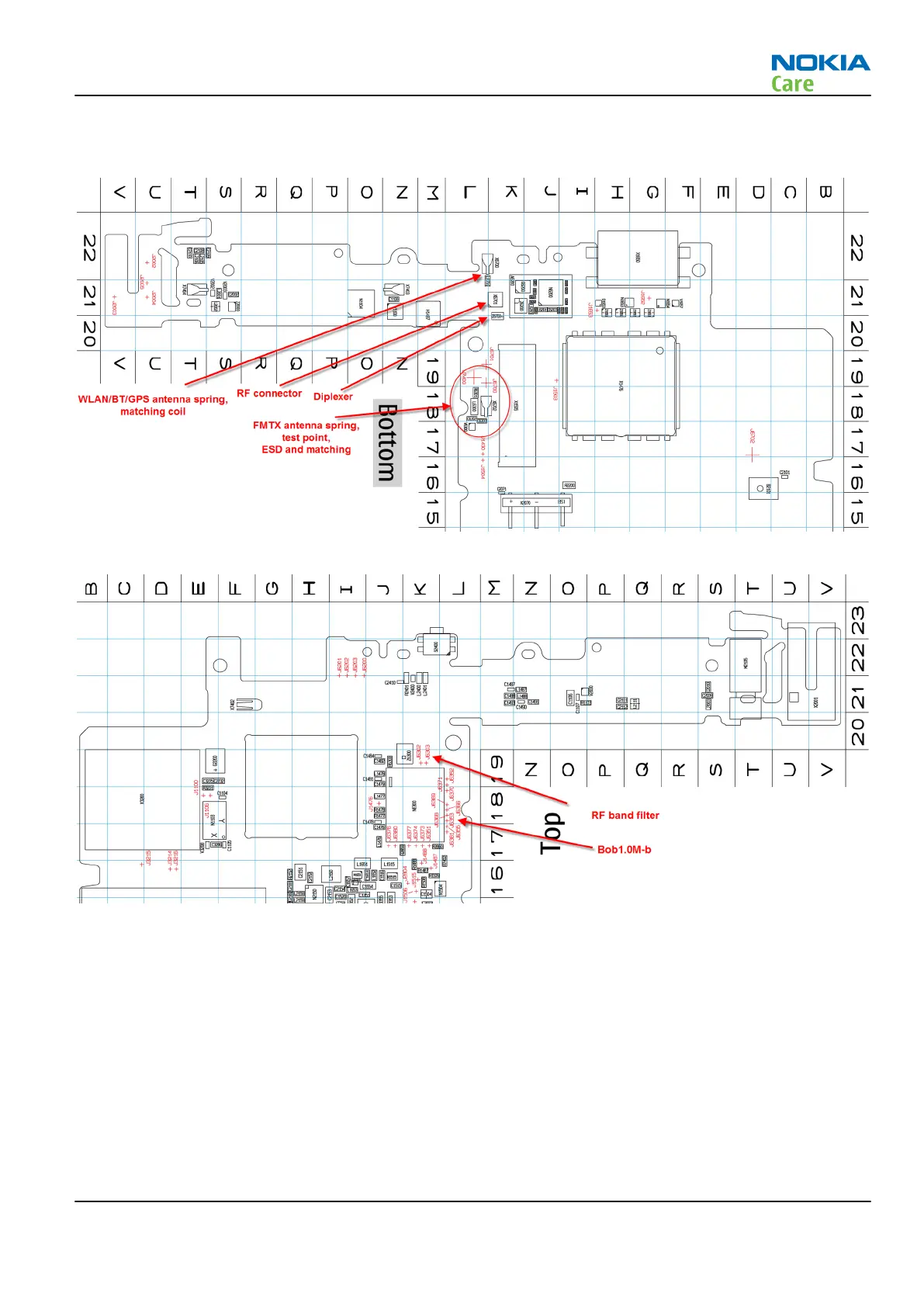

Component layout and test points of the connectivity module
Figure 13 Connectivity module's component layout, bottom side
Figure 14 Connectivity module's component layout, top side
Bluetooth/FM radio and WLAN troubleshooting
Introduction to Bluetooth/FM radio troubleshooting
The Bluetooth and FM radio receiver/transmitter functions are combined so these features are checked when
troubleshooting.
The following problems can occur with the Bluetooth and FM radio hardware:
RM-596
BB Troubleshooting and Manual Tuning Guide
Issue 2 COMPANY CONFIDENTIAL Page 3 – 59
Copyright © 2010 Nokia. All rights reserved.
