Nokia RM-596 - Cellular RF Main Troubleshooting

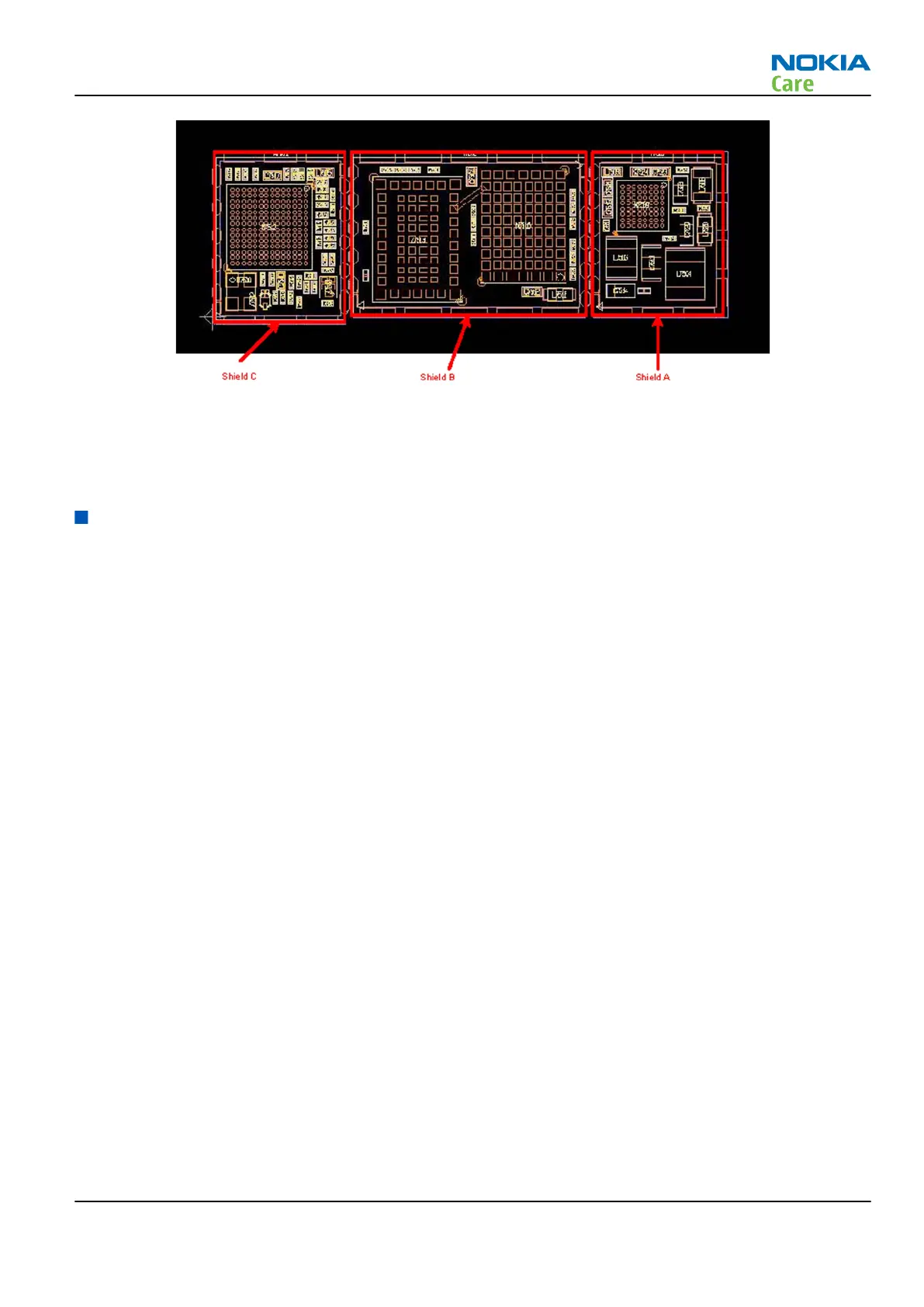

Figure 22 Linko shields
RF shield A is peel-off type and can be opened for repair purposes. The other two RF shield cans (B and C) are
solid and should not be opened in service centers.
The maximum height of the shields is 1.70 mm.
Cellular RF main troubleshooting
Cellular RF main troubleshooting
Context
Always start the cellular RF related troubleshooting procedure by following the diagram below.
RM-596
Cellular RF troubleshooting
