Nokia RM-596 - VIO Level; VREF Level

VIO level

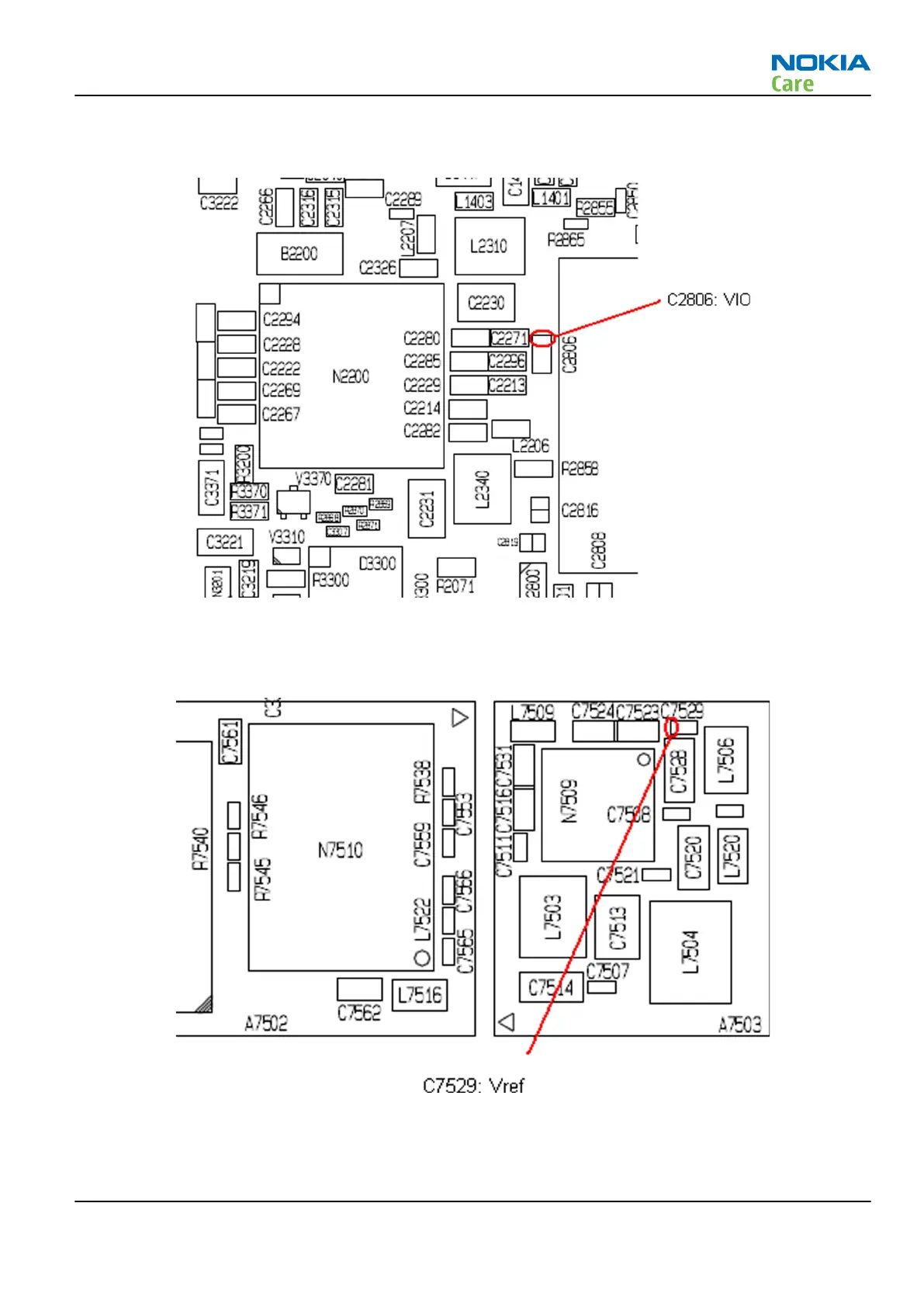

Check the VIO level (1.8V) at C2806. The signal is always on when the phone is in local mode.
VREF level
Check the Vref level (1.2 V) at C7529.
RM-596
Cellular RF troubleshooting
