Cellular RF key components
Linko RF has the following key components:
•
Älli N7512 (Transceiver RF ASIC)
•
Aura N7509 (RF power management ASIC)
•
UKKO N7510 (Power amplifier, PA)
•
QuBBE Z7513 (Front end module)

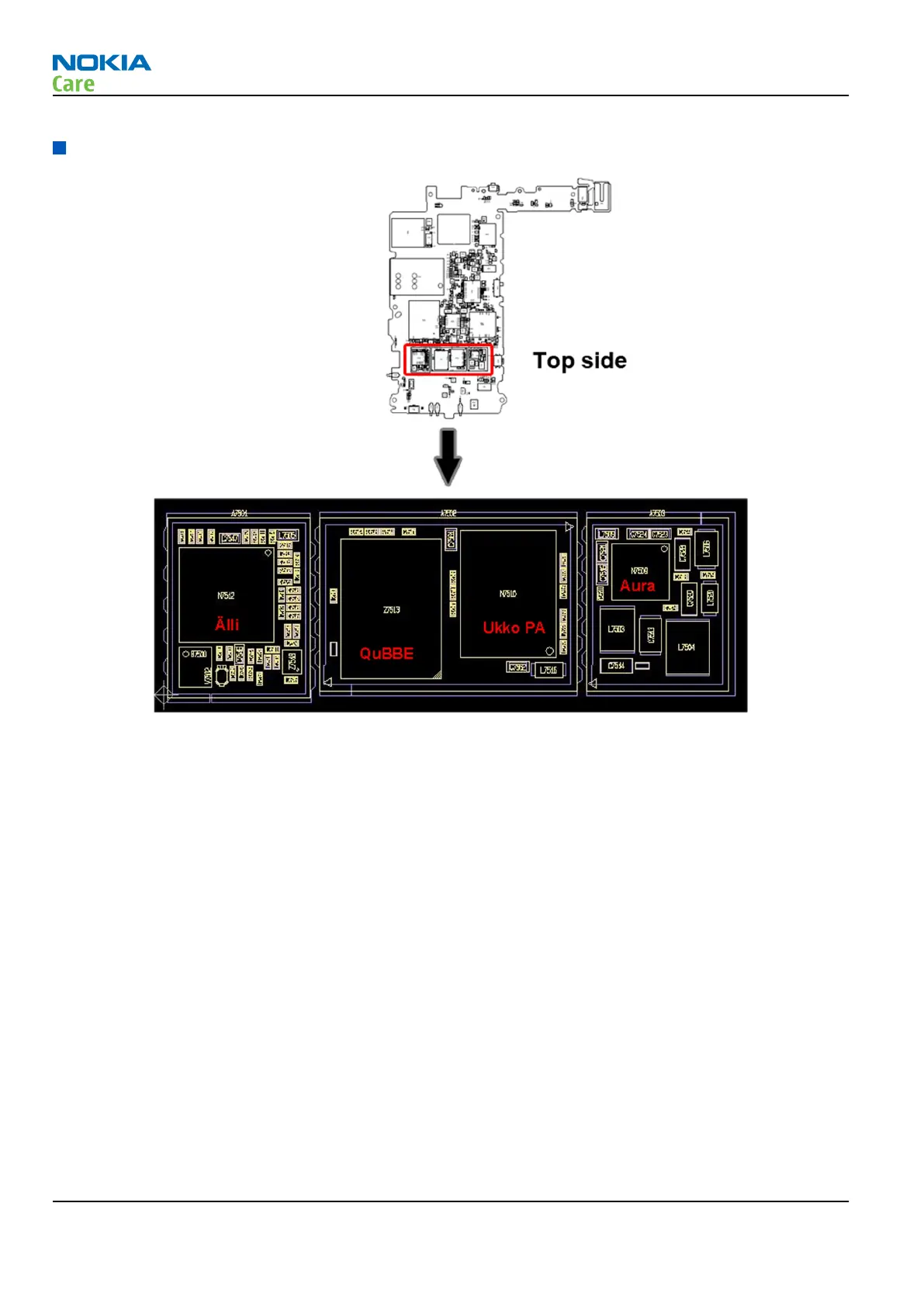

Linko RF has separate RF shielding cans for:
•
Älli N7512 + surroundings (Shield C)
•
QuBBE Z7513 + Ukko PA N7510 (Shield B)
•
Aura N7509 + surroundings (Shield A)
