For the Analog TV-out, video data is passed from the host to the BCM2727B over MeSSI-16 interface and
BCM2727B sends it to the AV connector. Audio is routed separately by the host to the AV connector.
Cameras
This phone has two cameras, a 12 MPix resolution main camera and a VGA resolution secondary camera.
Xenon flash is used for the main camera.
Primary camera (Swordtail)
The primary camera is a 12 Megapixel auto focus camera module. The module size is 12.5 mm x 12.5 mm x
9 mm and it fits into the 20-pin camera socket on the phone. The camera module is SMIA profile 2 compliant
and is configured by the BCM2727B using I2C control bus. Image data is transferred to the BCM2727B for
furher processing over CSI-2 (PRI_CAM_CSI).

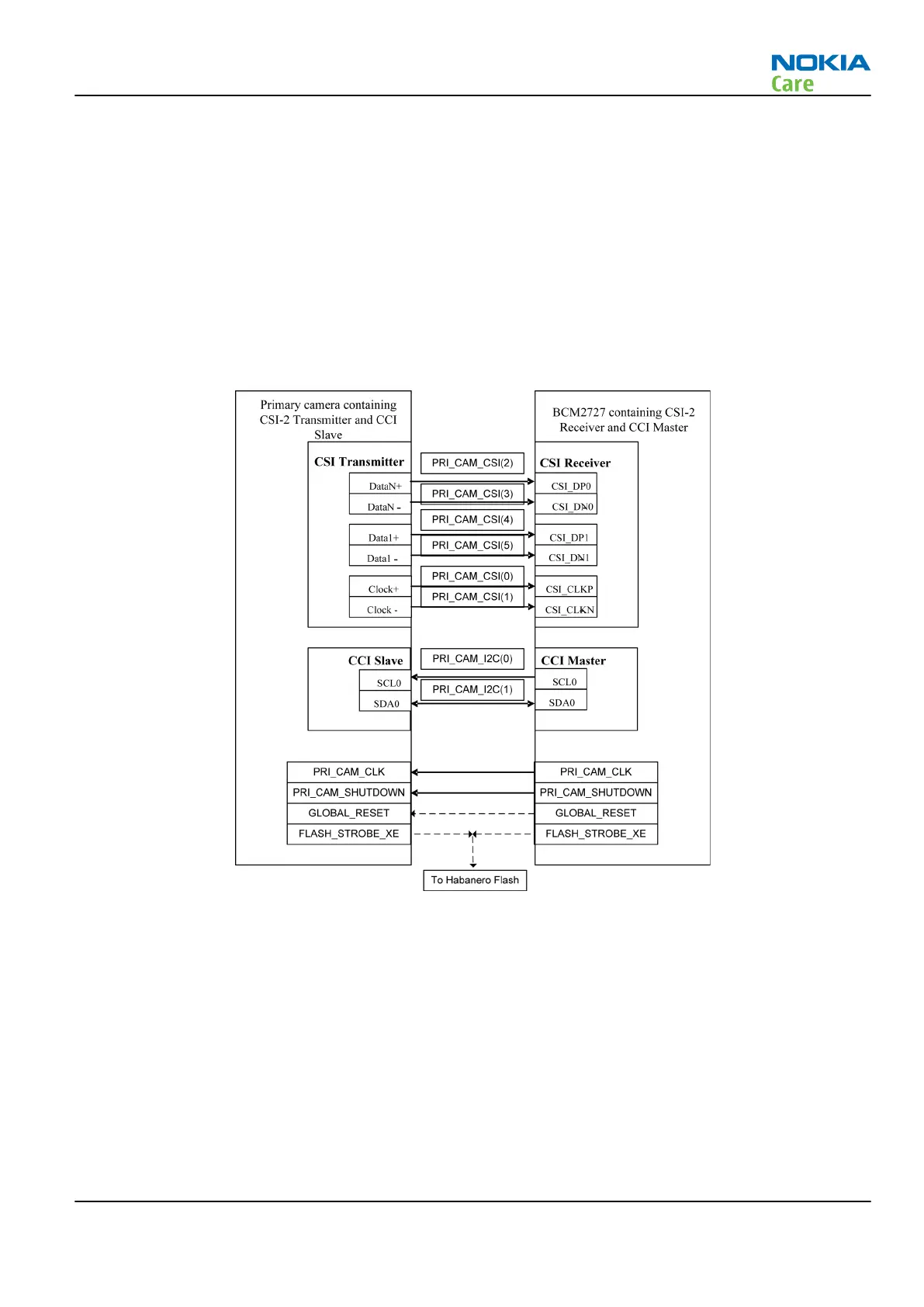

Figure 59 Primary camera interface
Secondary camera (VGA Acme mini)
The secondary camera is a 0.3 Megapixel fixed focus camera module. It is SMIA compliant and is configured
by the BCM2727B using I2C control bus. Image data is transferred to the BCM2727B for further processing
over a CCP based bus (SEC_CAM_CCP).
RM-596
System Module
Issue 2 COMPANY CONFIDENTIAL Page 6 – 23
Copyright © 2010 Nokia. All rights reserved.
