Nokia RM-596 - Module Jig Service Concept

Type Description
USB cable
Module jig service concept

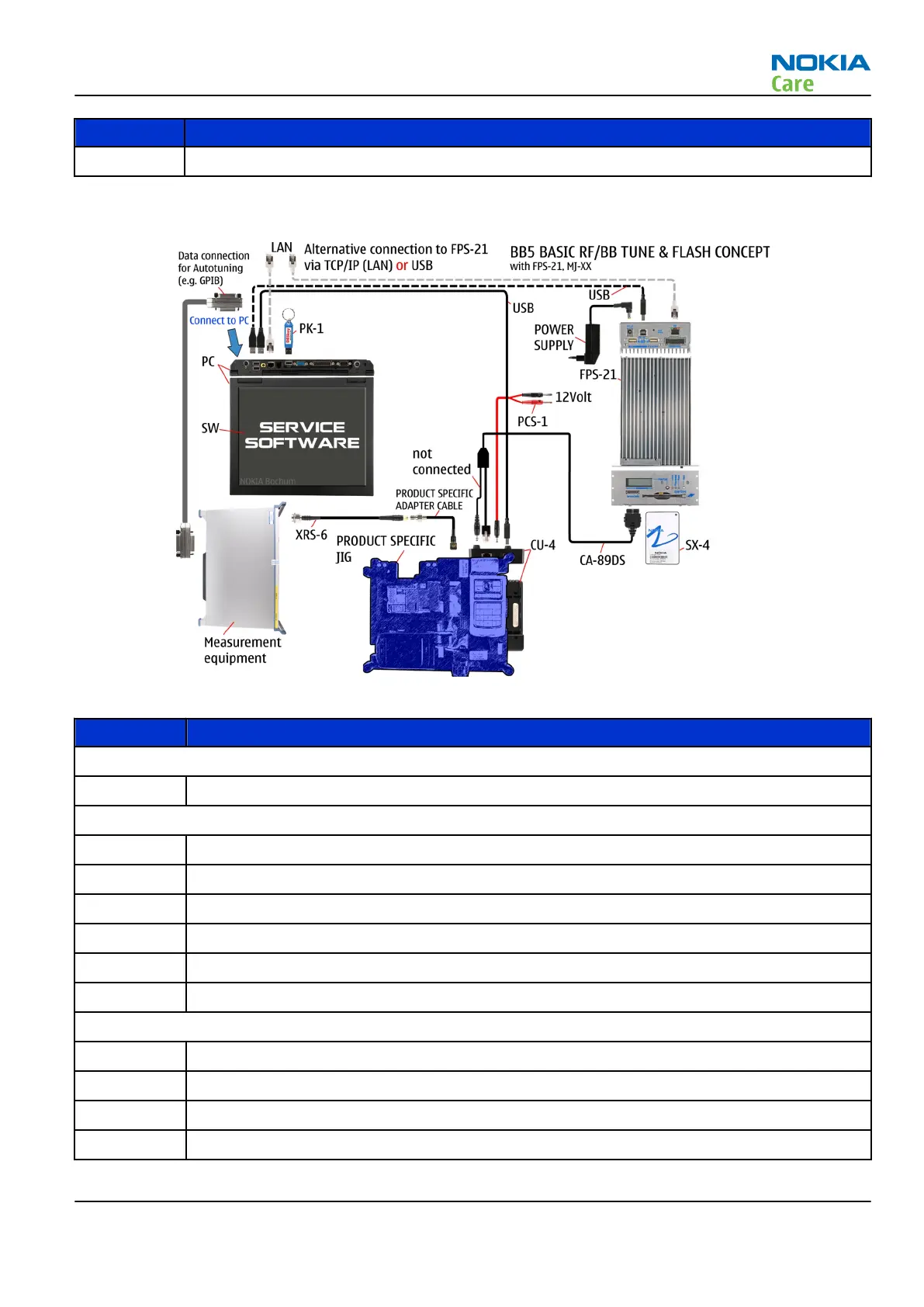

Figure 4 Module jig service concept
Type Description
Phone specific devices
MJ-241 Module jig
Other devices
CU-4 Control unit
FPS-21 Flash prommer box
PK-1 SW security device
SX-4 Smart card
PC with VPOS and service software
Measurement equipment
Cables
CA-89DS Service cable
PCS-1 DC power cable
XRS-6 RF cable
USB cable
RM-596
