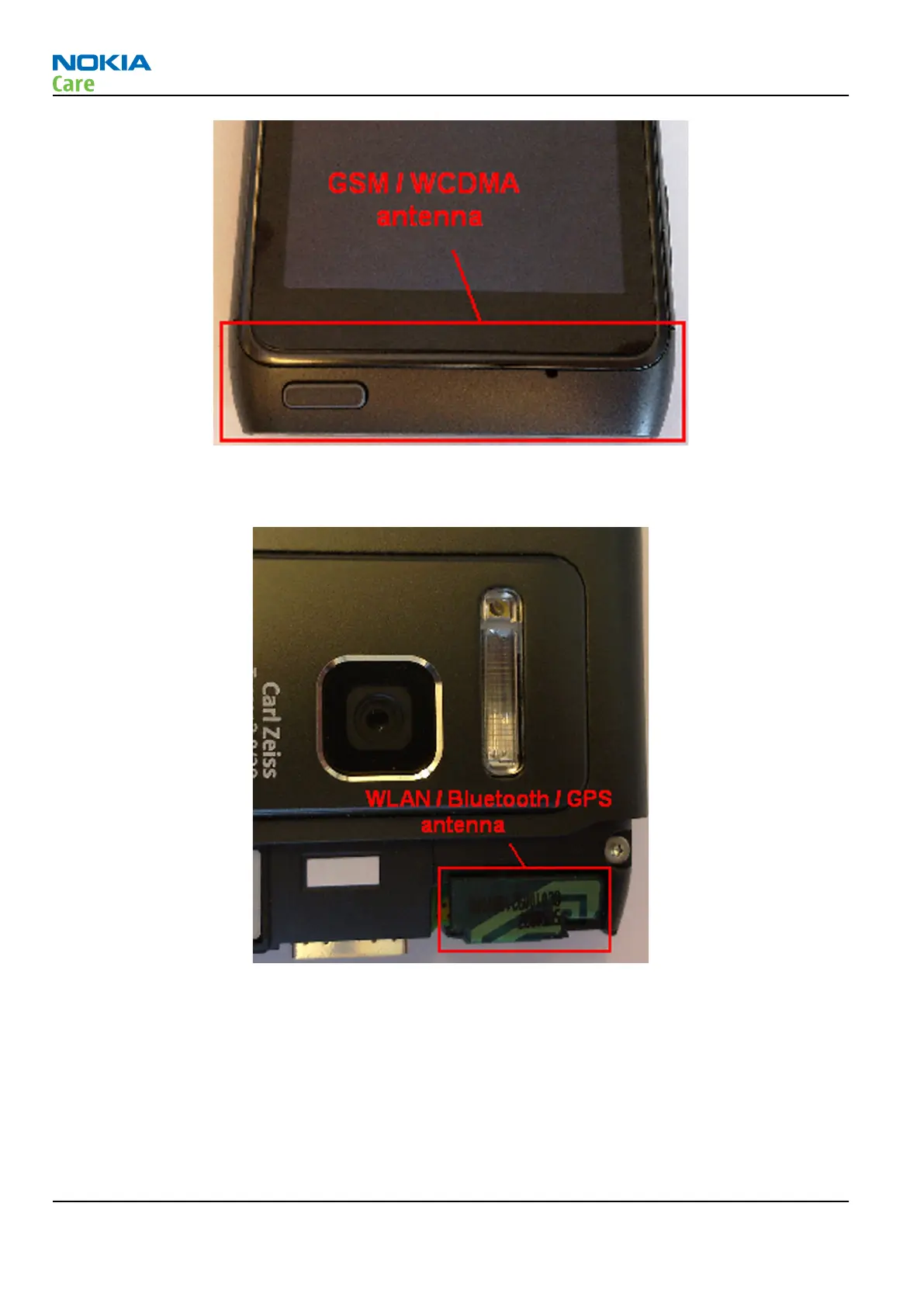

GPS, BT and WLAN RF interfaces are connected to one common antenna. RF feed from the phone PWB to the
antenna is made by one spring clip.
The FM TX antenna is a metallic decoration part at the top of the camera bumb. RF feed from the PWB is
implemented by a spring contact and a GND connection to the PWB by a pogo pin.
RM-596
