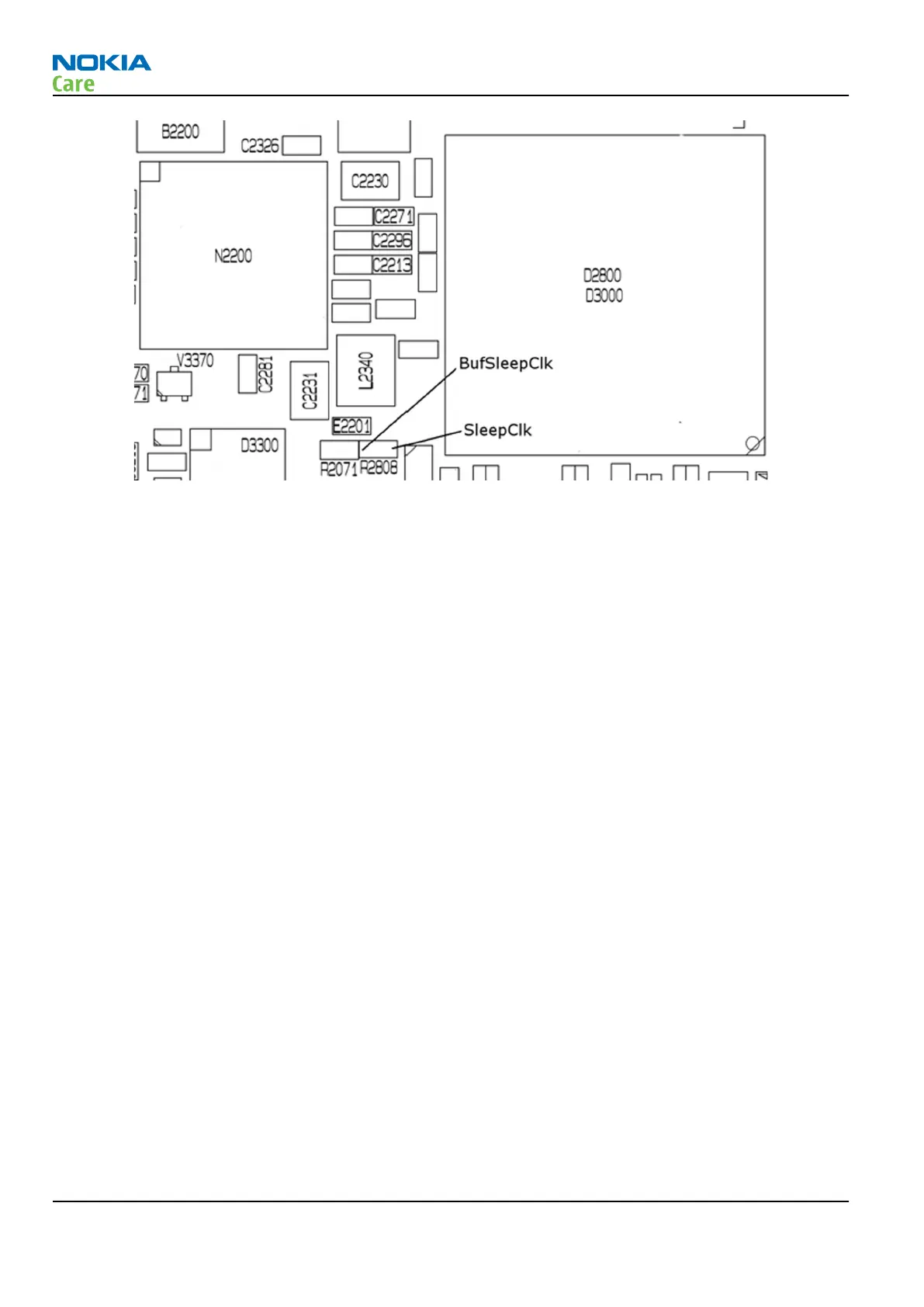

Figure 6 BufSleepClk and SleepClk signals on R2808 pads. The resistor is not assembled.
RM-596
BB Troubleshooting and Manual Tuning Guide
Page 3 – 16 COMPANY CONFIDENTIAL Issue 2
