Nokia RM-721 - Module Jig Service Concept

Type Description
USB cable

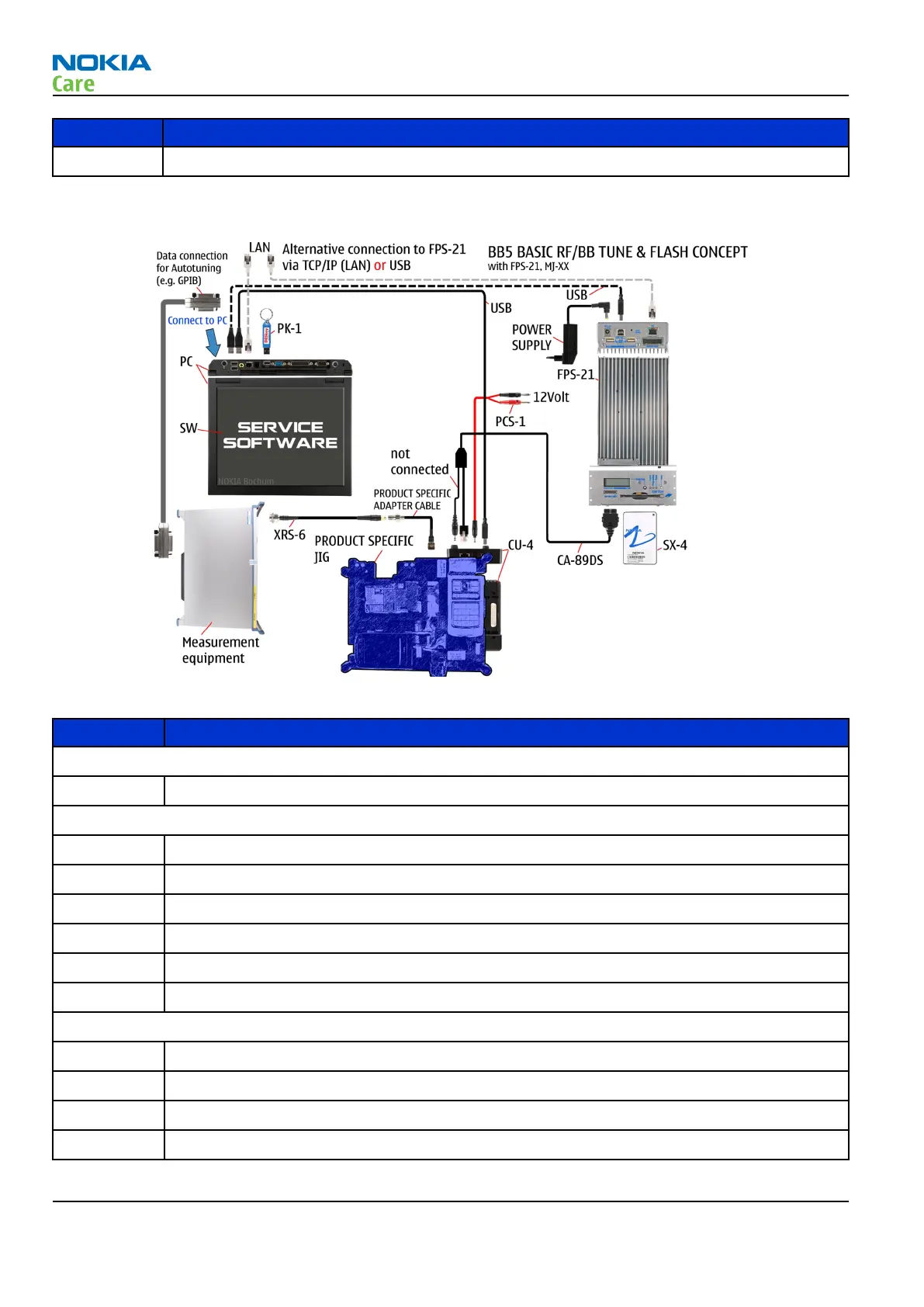

Module jig service concept
Figure 6 Module jig service concept
Type Description
Phone specific devices
MJ-312 Module jig
Other devices
CU-4 Control unit
FPS-21 Flash prommer box
PK-1 SW security device
SX-4 Smart card
PC with VPOS and Phoenix service software
Measurement equipment
Cables
CA-89DS Service cable
PCS-1 DC power cable
XRS-6 RF cable
USB cable
RM-721; RM-722
Service Devices and Service Concepts
