Nonin 3150 - Attaching the Sensor

17
Using the WristOx2, Model 3150

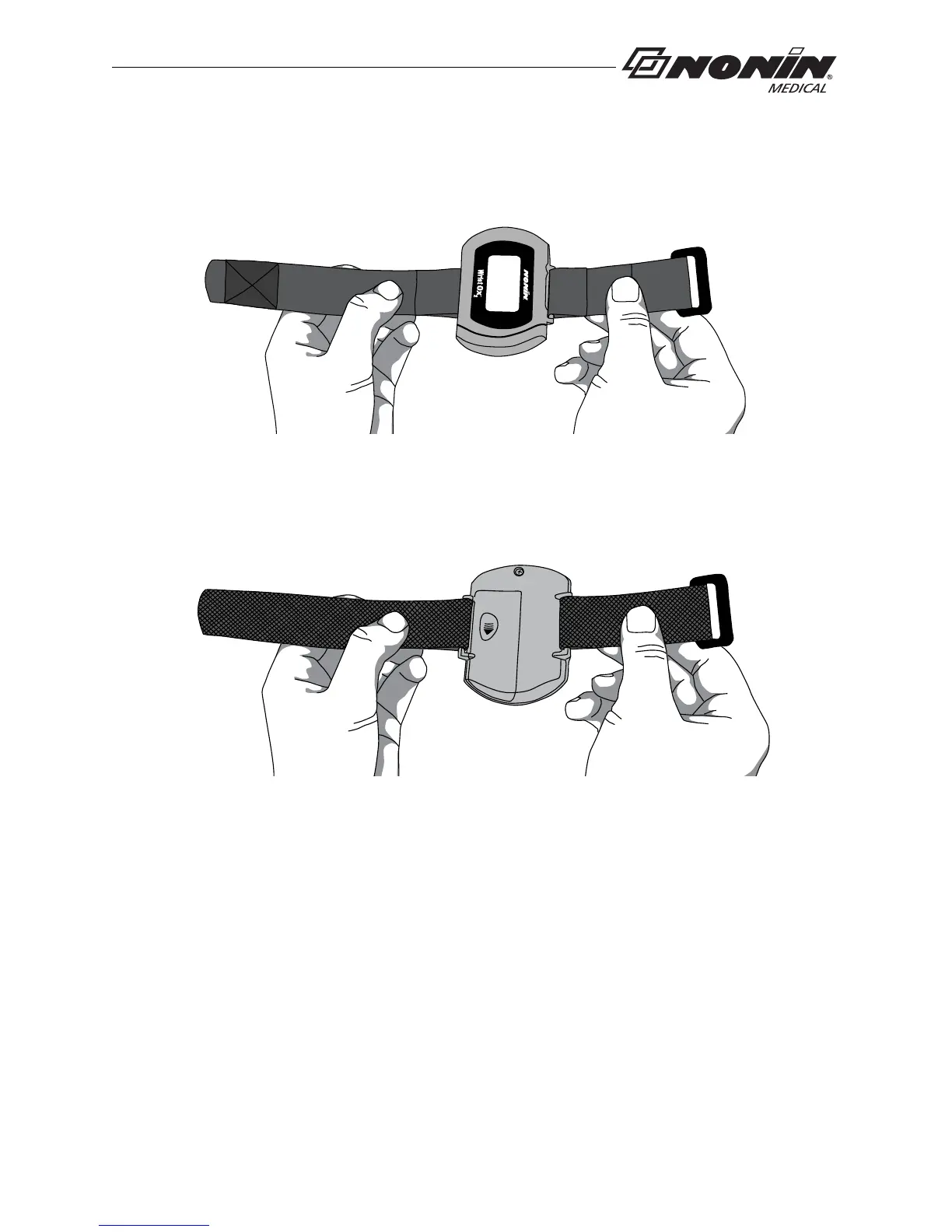

6. Verify straps are attached properly (figure 11). The smooth, woven side of the 
strap should contact the patient.
Front View
Back View
Figure 11: Device with Wrist Straps Attached (Front and Back Views)
