Using the WristOx2, Model 3150
Patient Application
The WristOx
2
, Model 3150, is usually worn on the back of a patient’s wrist. This section
describes how to secure the device to a wrist using either the two-piece wrist band or a
single strap.
Two-Piece Wrist Band Application
1. Verify the ring strap and the adjustable strap have been attached properly to the
device (figure 13). If straps have not been attached to the device, see “Attach Ring
Strap to Device” and “Attach Adjustable Strap to Device.”

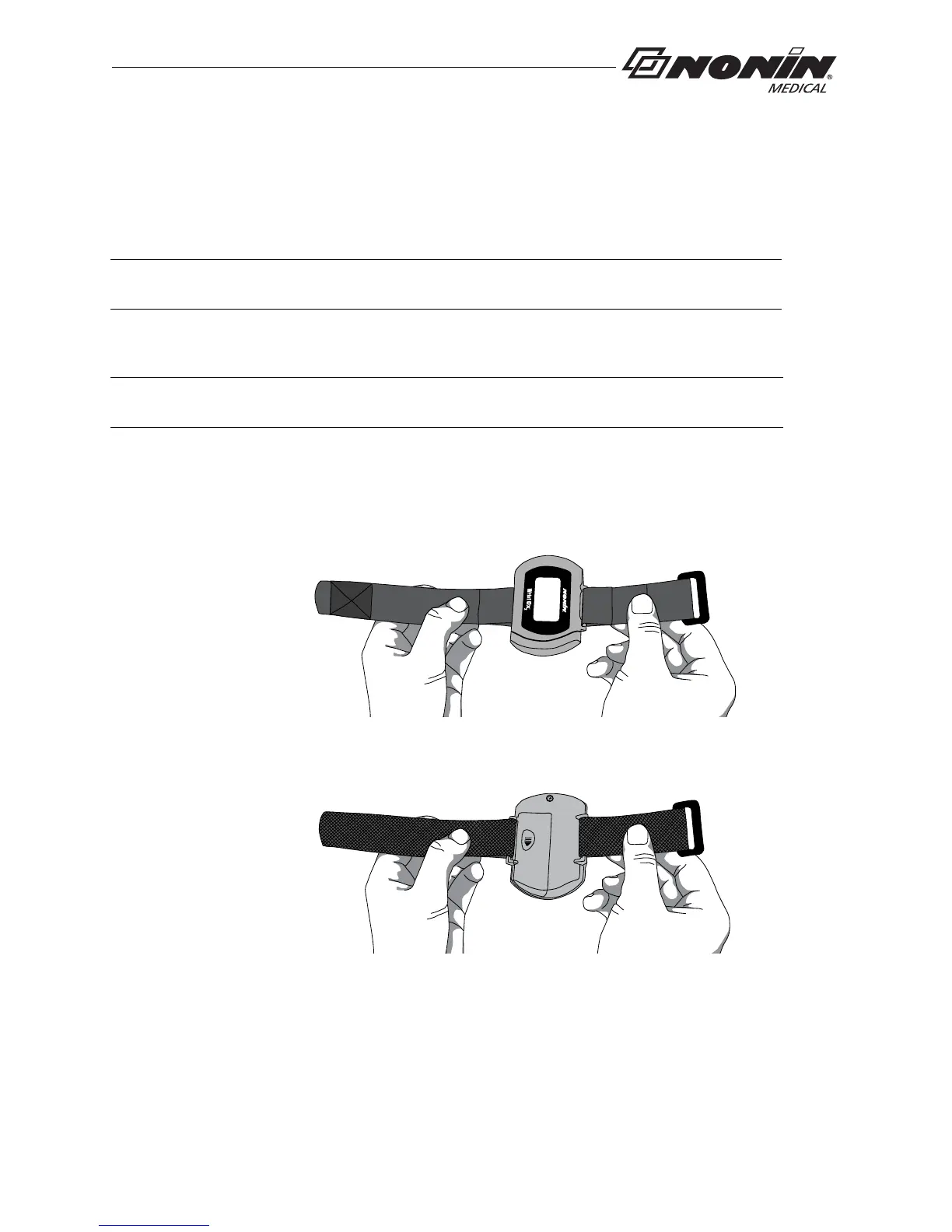

Back View
Front View
Figure 13: Verify Two-Piece Wrist Band Attachment
NOTE: Straps can be used to secure the device to an alternate location (e.g., the upper
arm or a bed rail). See “Part and Accessories” for additional strap lengths.
NOTE: Ensure the wrist band fits comfortably on the patient’s arm. Do not over-tighten
the wrist band.
