Nordmann AT4 - Steam Humidifier Construction

10

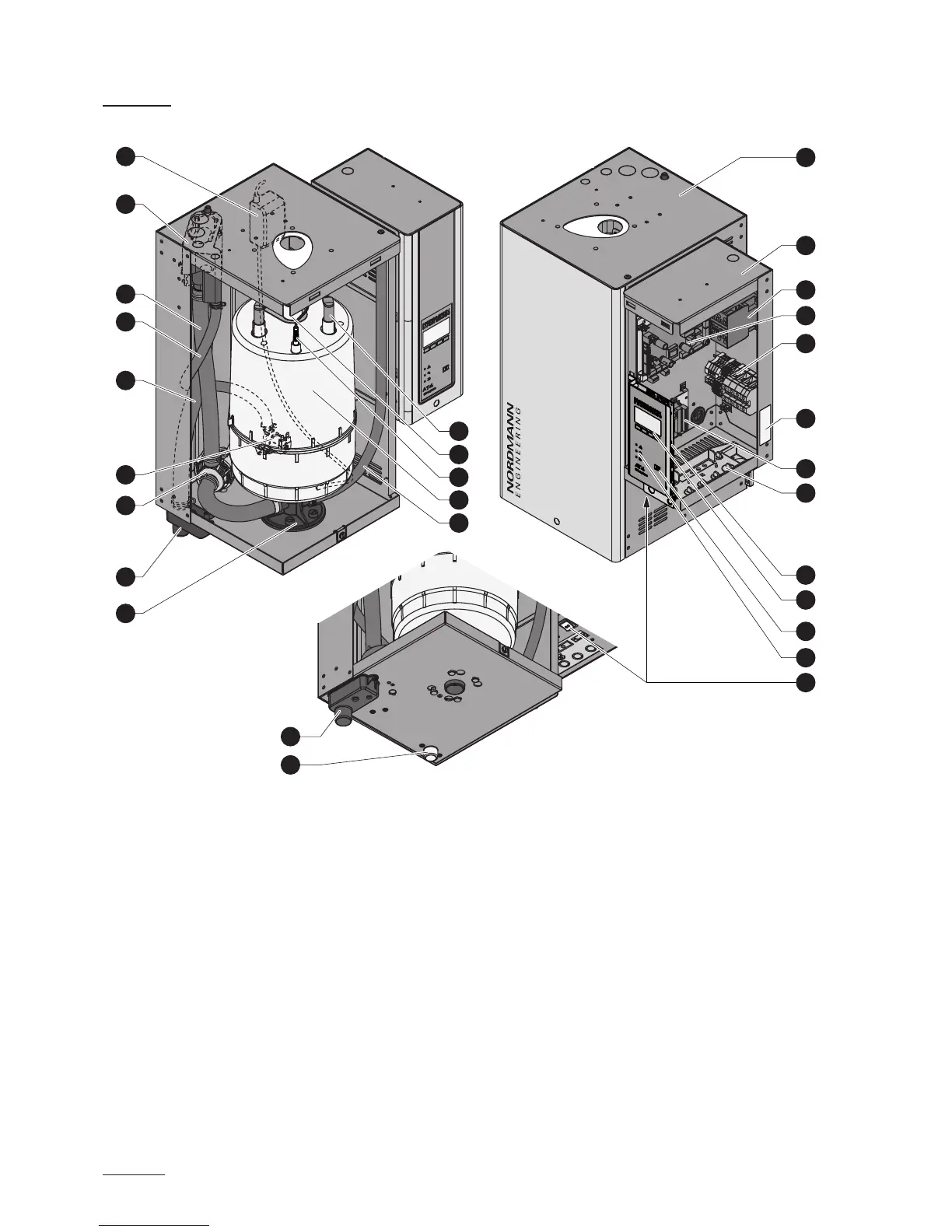

3.3 Steamhumidierconstruction
1 Steam cylinder compartment
2 Control compartment
3 Main contactor
4 Power board
5 Connecting terminals
6 Type plate
7 Remote operating and fault indication board (option)
8 Cable openings
9 Control board with CF Card
10 Display and control unit
11 Drain key
12 Operation status indicators
13 Unit switch
14 SC pump
15 Water cup
16 Filling and draining hose
17 Water supply hose
18 Overow hose
19 Inlet valve
20 Drain pump
21 Drain cup
22 Steam cylinder receptacle
23 Drain hose (manual drain)
24 Steam cylinder
25 Level sensor
26 Steam outlet
27 Electrode plug
28 Drain connector
29 Water supply connector
3
2
1
4
5
7
8
10
12
11
9
15
14
18
22
21
16
17
20
19
24
23
27
25
26
28
29
13
6
gure shows medium unit
