Nordmann AT4 - Working with the Remote Terminal

43
5.7 Working with the remote terminal

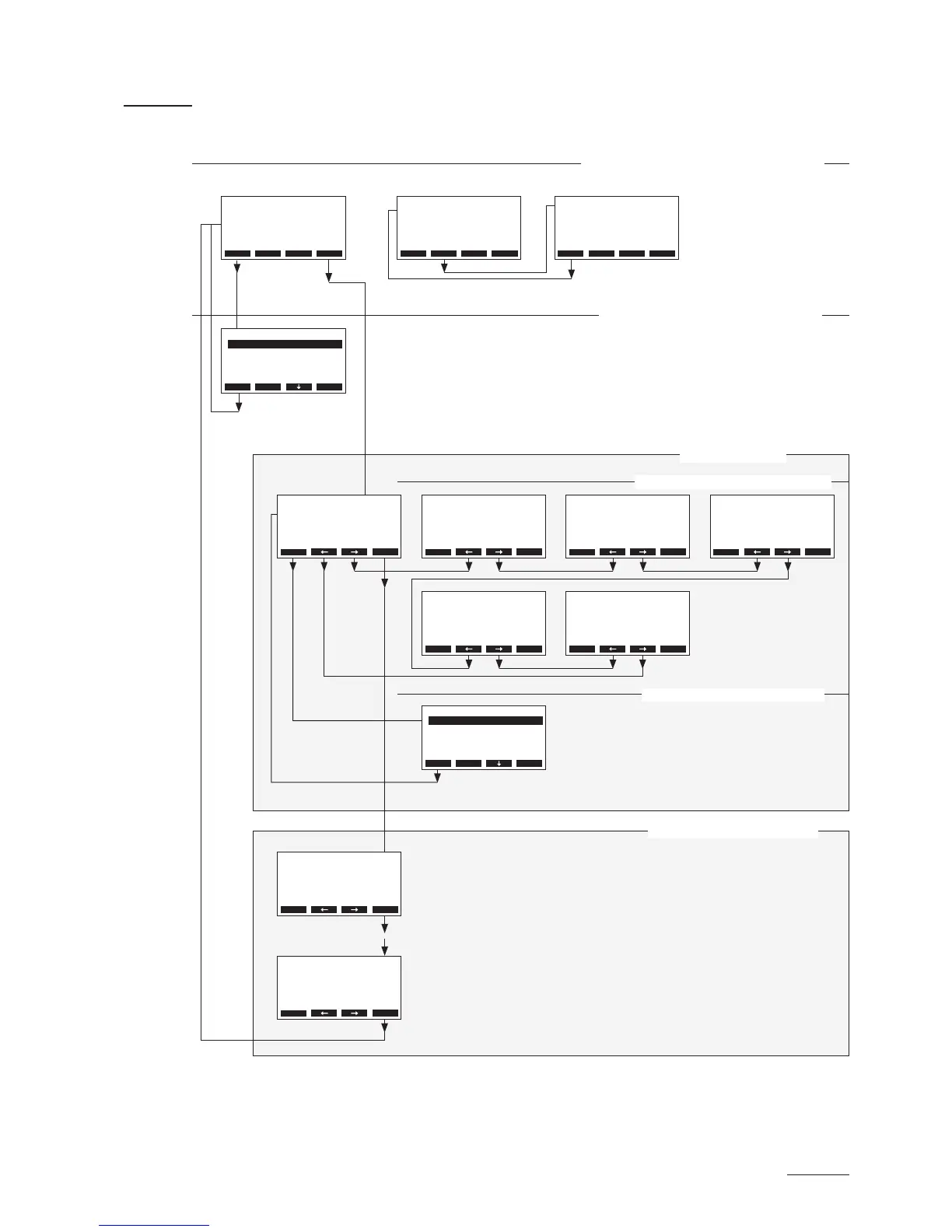

5.7.1 Menu overview remote terminal
Menu 1
AT4 130kg/h 400V3
Standby
2011-08-31 12.00.00
Menu 1
AT4 130kg/h 400V3
Standby
2011-08-31 12.00.00
Menu 2
AT4 130kg/h 400V3
Standby
2011-08-31 12.00.00
Menu Local
AT4 Terminal
Remote Units:8
Software :1.00LA00
Menu 1
AT4 130kg/h 400V3
Power Limit :100%
Request A :0%
Request B :0%
∑ Steam :0kg/h
Menu 1
AT4 130kg/h 400V3
Drain Factor:1.0
Conductivity:>125µS
Idle Mode :Drain
Force Drain :O
Menu 1
AT4 130kg/h 400V3
Cylindertype:6564A
Operating hours
Cylinder A :10h
Cylinder B :10h
Menu 1
AT4 130kg/h 400V3
Timer
On/O Timer :O
Power Limit :O
Setpoint :O
Menu 1
AT4 130kg/h 400V3
Software :1.00LA00
Controlsign.:0-10V
Limitsignal :0-10V
Humidier 2 to max. 8
Menu Local
Warning
W17 Unit Missing
Remote Units:2
Info Esc
Warning 17
Unit Missing
No connection
with humidier
Indication level remote terminal
Standard display Standard display with active malfunction
Main Menu
Remote Units:8
ErrorHistory:Set
HistoryReset:Set
Language :English
Baudrate :9600
Esc Set
•••
Main Menu
Engineering :Set
Diagnostic :Set
User :Set
Esc Set
Humidier 1
Indication level humidier 1
Menu level humidier 1
Note: Detailed information regarding the indication
and the menu level of the humidiers can be found
in chapter 5.
Menu level remote terminal
Menu remote terminal
Remote terminal settings (see chapter 5.7.2)
