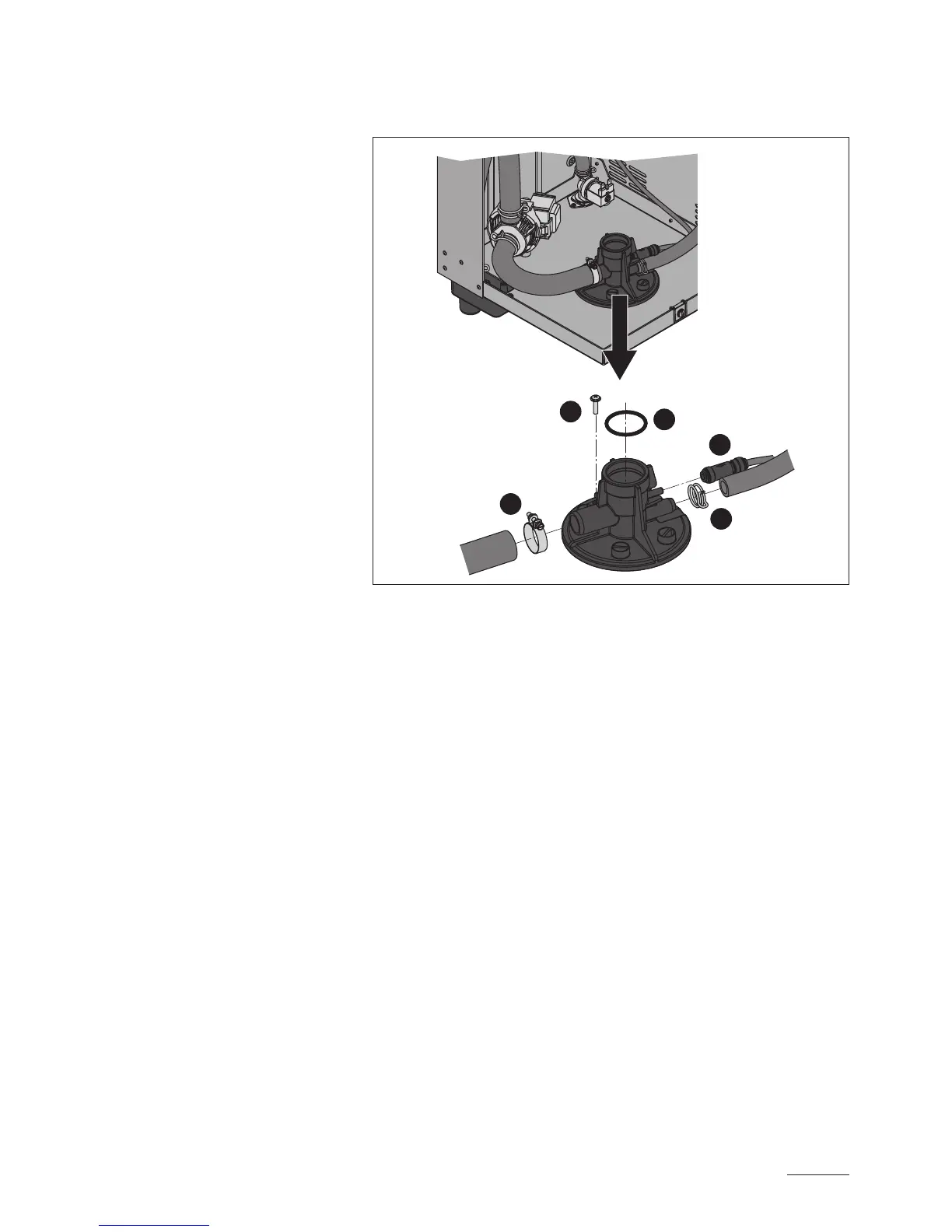

6.3.6 Removal and installation of the cylinder receptacle
For removing the cylinder receptacle the steam cylinder must be removed
rst (see chapter 6.3.1).
1. Release hose clamps and remove hoses from the connectors.
2. Pressin the locking ring on the end of the check valve, then remove
check valve together with the hose from the corresponding connector
on the cylinder receptacle.
3. Undo the screw xing cylinder receptacle to the bottom of the housing
with Phillips screwdriver. Then, turn cylinder receptacle counter clockwise
to the stop and remove cylinder receptacle upwards.
4. Remove Oring from the cylinder receptacle.
The installation of the cylinder receptacle follows the reverse sequence.
Before mounting the cylinder receptacle, check Oring for damage and
replace if necessary.
1
2
1
3
4
