Nordmann AT4 - Humidification System Overview

13
3.5 Humidicationsystemoverview

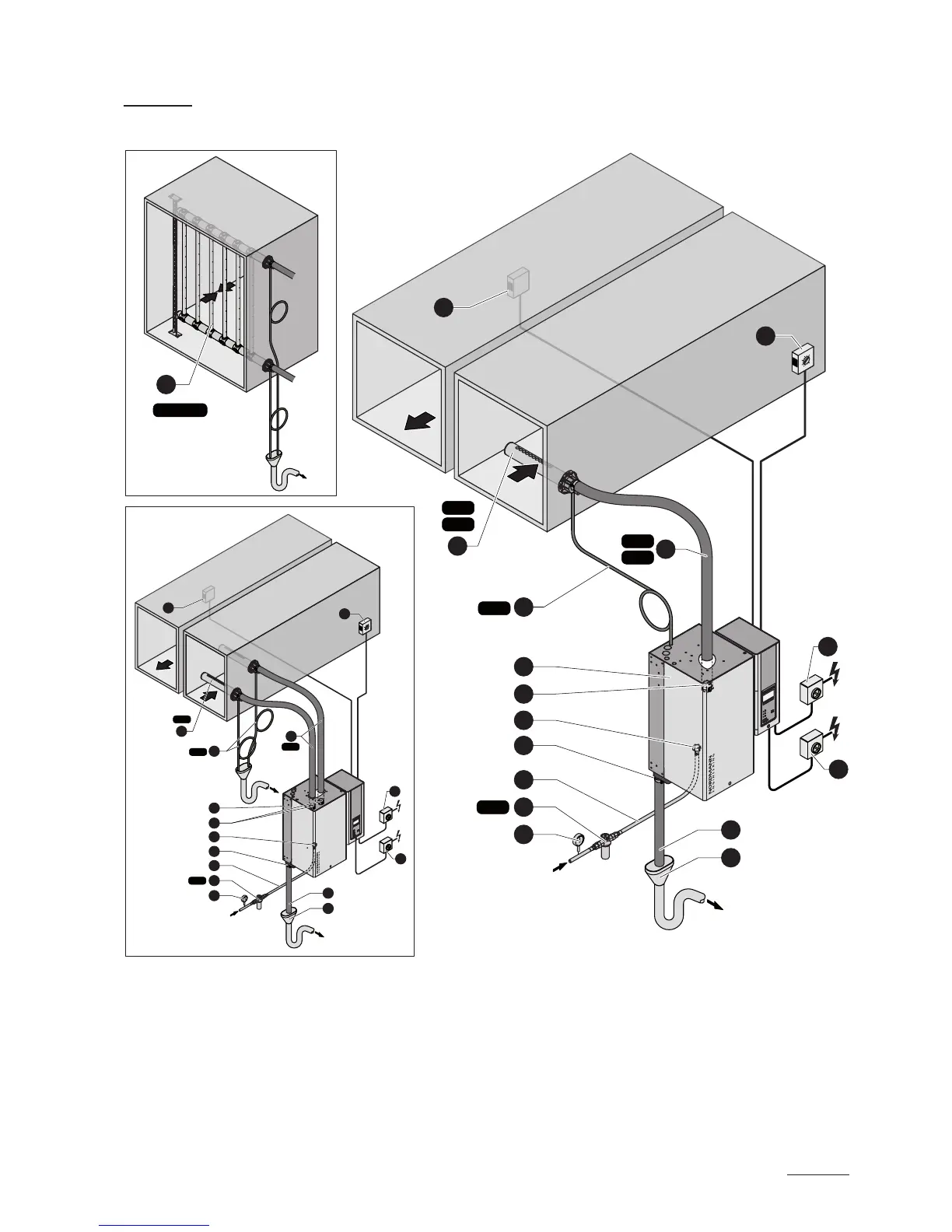

System overview duct humidication (single units)
1 Steam humidier
2 Steam connector
3 Water supply connector
4 Water drain connector
5 Water connection hose G 3/4" G 3/8"
(included in the delivery)
6 Filter valve (accessory “Z261”)
7 Manometer (installation recommended)
8 Funnel with siphon (building side)
9 Water drain hose (included in the delivery)
10 Service switch control voltage supply (building side)
11 Service switch heating voltage supply (building side)
12 Steam hose (accessory “DS22”/“DS35”)
13 Condensate hose (accessory “KS10”)
14 Steam distribution pipe (accessory “DV41..”/“DV71..”)
15 Steam distribution system (accessory “MultiPipe”)
16 Continuous humidity controller or humidistat
17 Safety humidistat
ONOFF
ONOFF
11
10
1
2
3
4
5
6
7
DS35
DS22
Z261
12
13
16
14
KS10
DV41
DV71
17
8
9
ONOFF
ONOFF
11
10
17
1
3
5
6
7
Z261
8
2
13
4
DS35
KS10
12
14
DV71
16
9
15
MultiPipe
System 1
System 2
125...1250 µS/cm
1...10 bar
1...40 °C
