6.3 Removing and installing parts for maintenance
6.3.1 Removal and installation of the steam cylinder

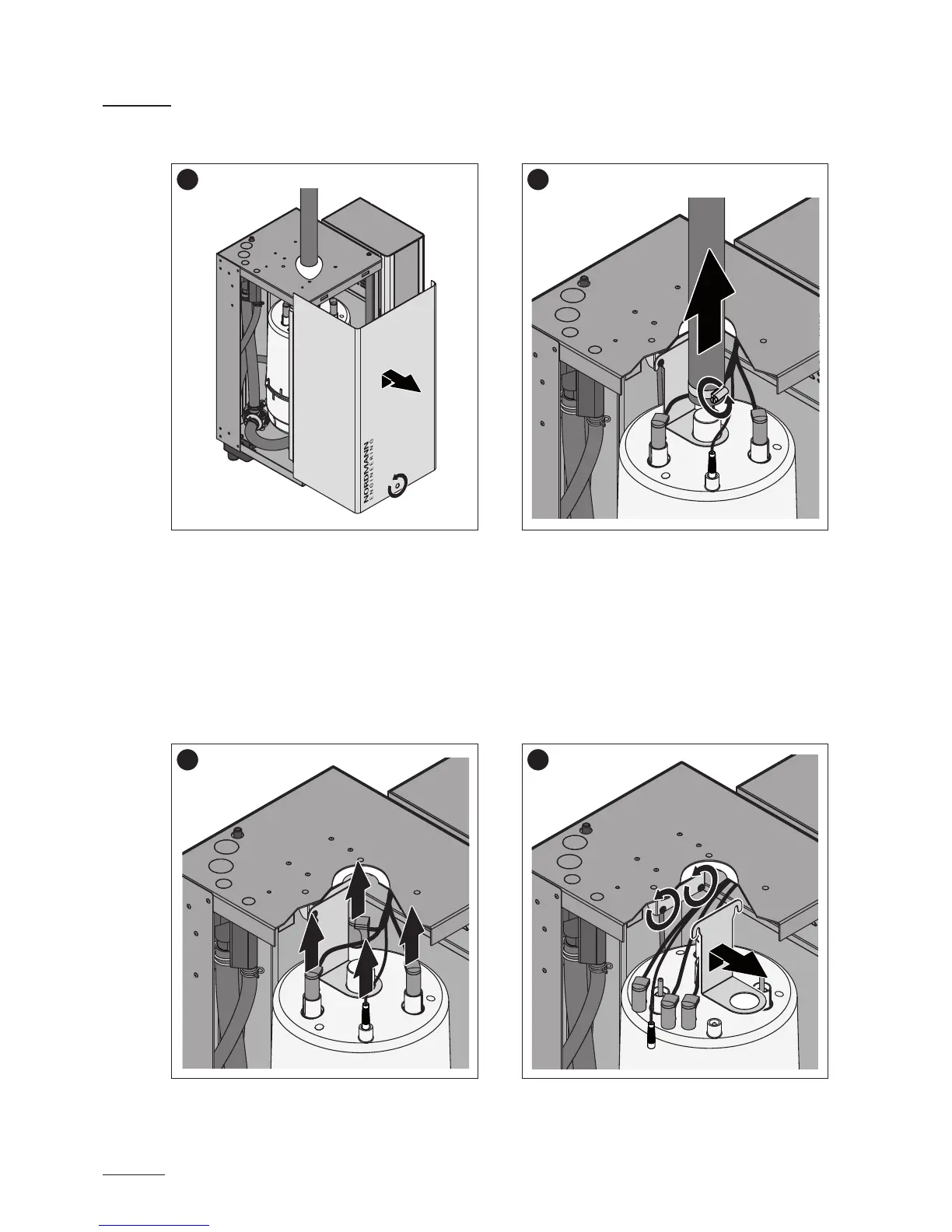

1. Undo the screw xing the front panel to the unit using a screwdriver,
then remove the front panel.
2. Release the hose clamp on the steam hose using a screwdriver, then
detach the steam hose from the steam outlet connection of the steam
cylinder.
Units with steam hose connector with condensate trap (option CT...,
not shown): release the two hose clamps on the rubber sleeve using a
screwdriver, then detach the rubber sleeve from the connection in the
unit cover and from the steam outlet connection of the steam cylinder.
3. Remove all plugs from the electrodes and from the level sensor.
4. Loosen the screws of the steam cylinder xing device by a few turns,
then push the xing device upwards until it comes loose and remove it.
