5.4 Unit settings
5.4.1 Launching the unit settings menu

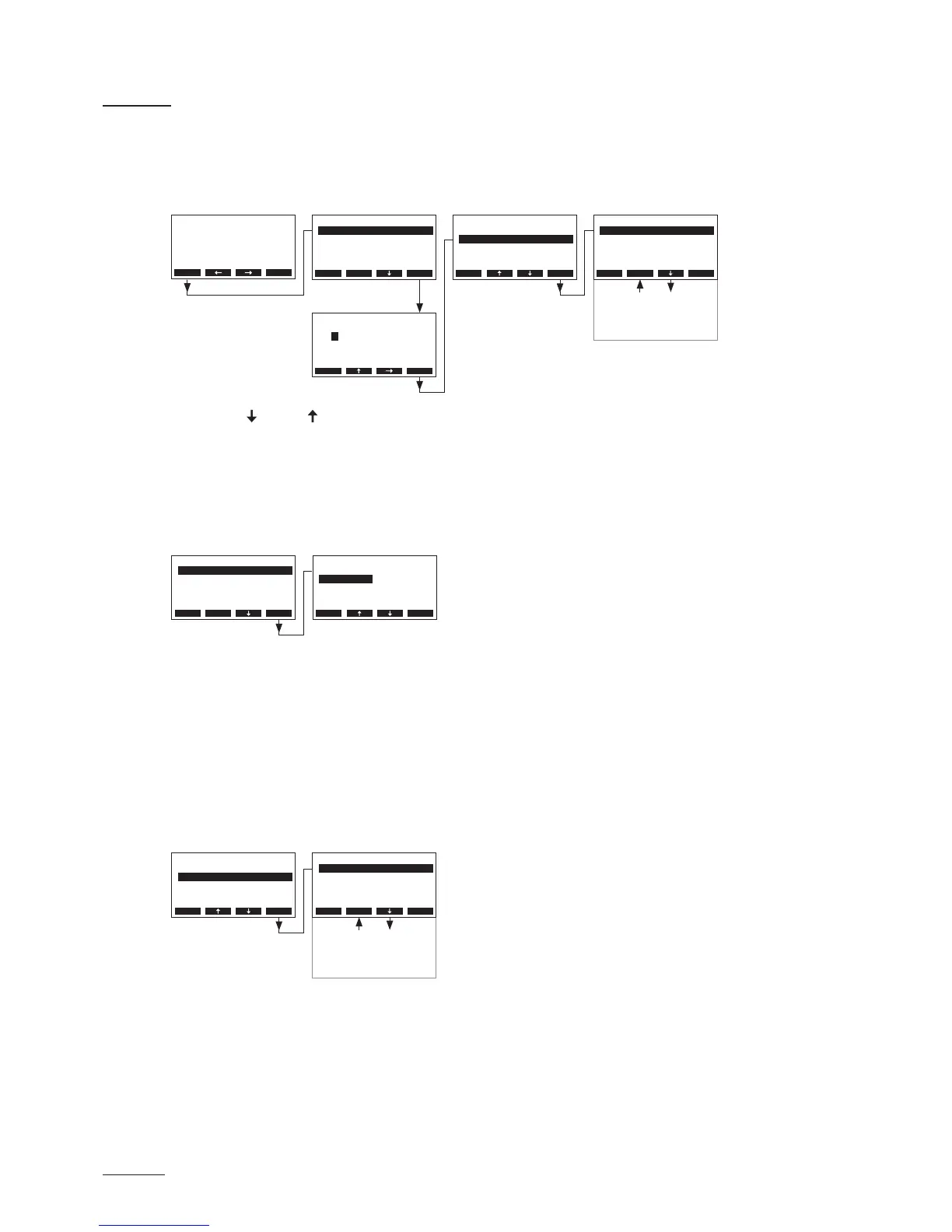

Select the unit settings menu:
Path: Main menu > User > Password entry: 3562 > Settings
Press the < > and < > keys in order to select the individual settings or settings submenus. Detailed
information on the different settings are found in the following chapters.
5.4.2 Selecting the dialogue language
Select “Language” in the unit settings menu, then press the <Set> key.
In the upcoming modication dialogue select the desired dialogue language. After conrmation, the unit
automatically switches to the selected dialogue language.
Factory setting: country specic
Options: diverse languages
5.4.3 Control settings
Select “Controls” in the unit settings menu, then press the <Set> key.
The display with control settings appears. The settings available depend on the selected signal source,
the regulation mode and the modulation mode. The display above shows the maximum number of set
tings available. Please refer to the following chapters for further information on the individual control
settings.
