6.3.3 Removal and installation of the water cup and the water hoses
For removing the water cup and the water hoses the steam cylinder must
be removed rst (see chapter 6.3.1).
1. Release hose clamps, then disconnect all hoses from the corresponding
connectors and remove the hoses.

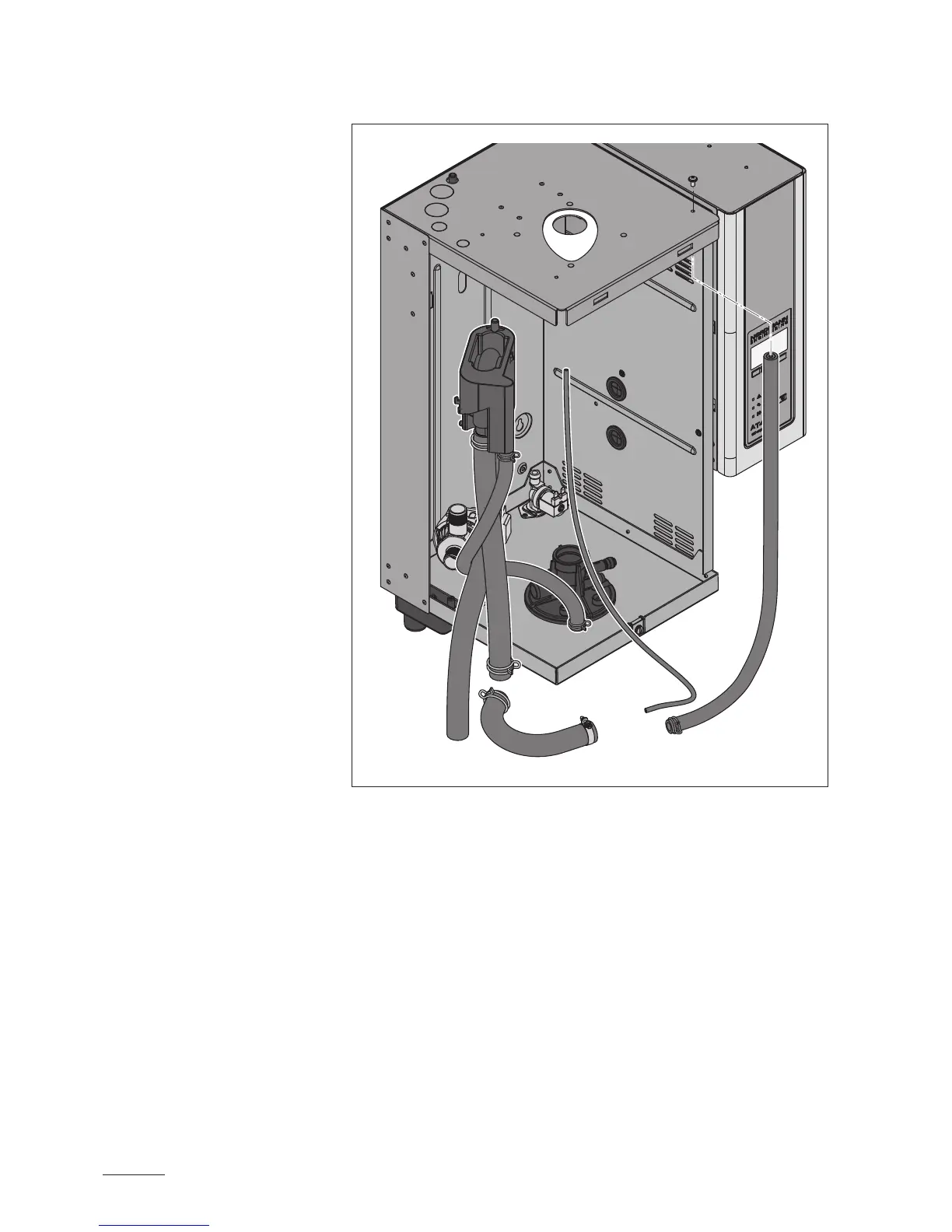

Note: The hoses connected to the water cup may also be removed to
gether with the water cup (see illustration) and then disconnected from
the connectors of the water cup outside the unit.
2. Carefully pull xing clip of the water cup to the front, then push water
cup down from the holding device and remove it to the front.
The installation of the water cup and the water hoses follows the reverse
sequence. Before xing the water hoses to the connector using the hose
clamps, align the hoses in a way that they are not twisted.
