14
15
DV71
ONOFF
ONOFF
ONOFF
10
11
12
KS10
18
9
8
14
1
2
3
4
6
7
Z261
5
8
17
DS35
13
16
MultiPipe
System 4

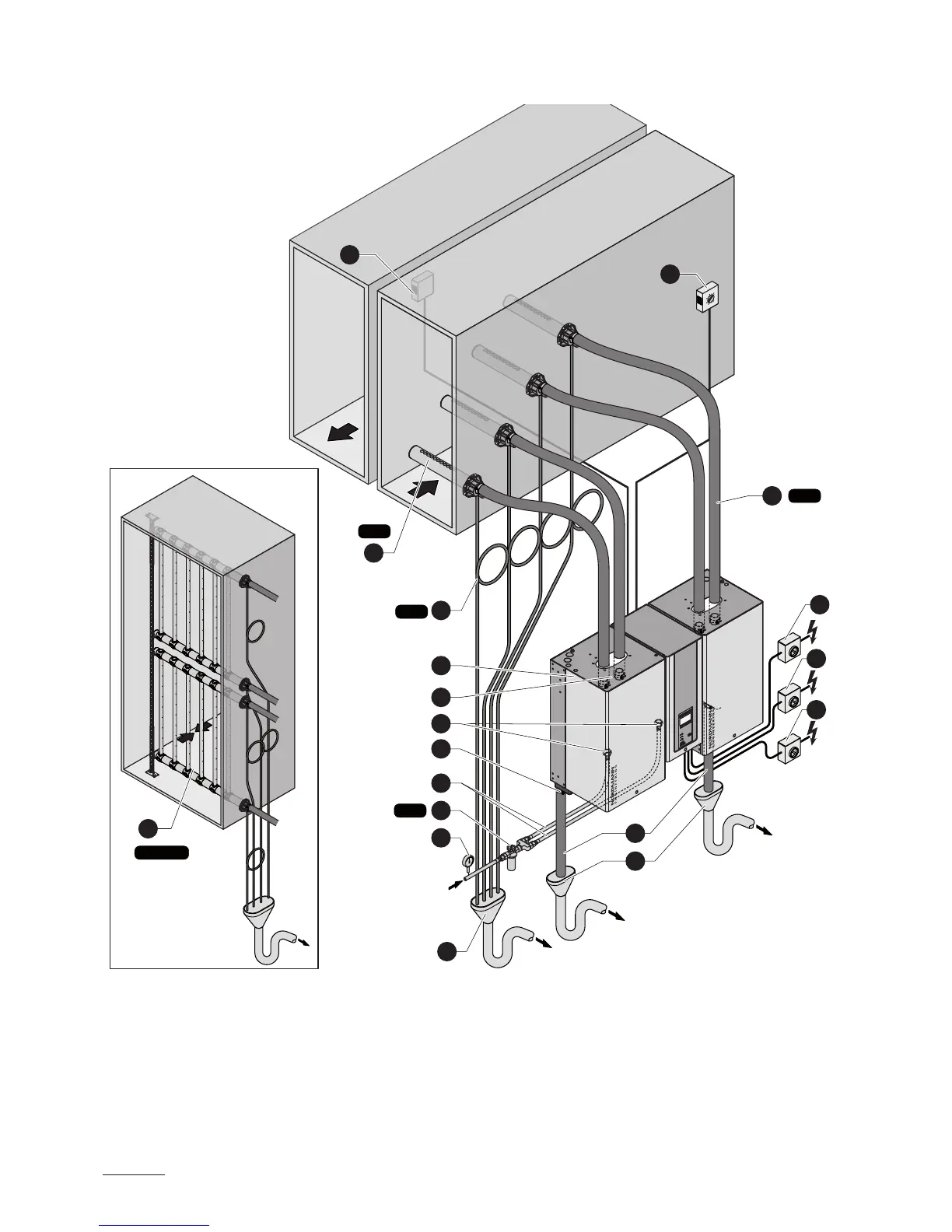

System overview duct humidication (double units)
1 Steam humidier
2 Steam connector
3 Water supply connectors
4 Water drain connector
5 Water connection hose G 3/4" G 3/8"
(included in the delivery)
6 Filter valve (accessory “Z261”)
7 Manometer (installation recommended)
8 Funnel with siphon (building side)
9 Water drain hose (included in the delivery)
10 Service switch control voltage supply (building side)
11 Service switch heating voltage supply module A (building side)
12 Service switch heating voltage supply module B (building side)
13 Steam hose (accessory “DS35”)
14 Condensate hose (accessory “KS10”)
15 Steam distribution pipe (accessory “DV71..”)
16 Steam distribution system (accessory “MultiPipe”)
17 Continuous humidity controller or humidistat
18 Safety humidistat
125...1250 µS/cm
1...10 bar
1...40 °C
