Nordmann AT4 - Page 16

16

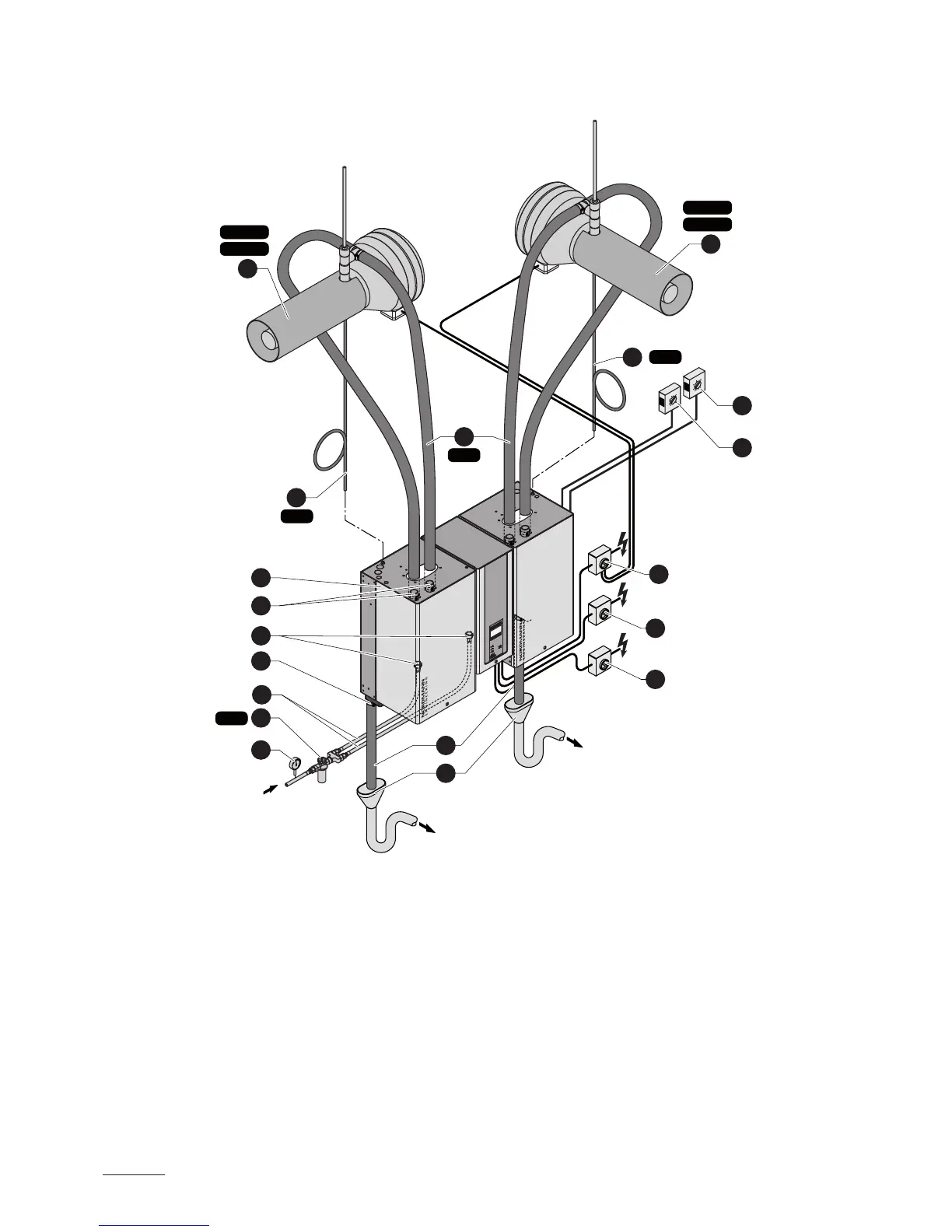

System overview room humidication (double units)
125...1250 µS/cm
1...10 bar
1...40 °C
1 Steam humidier
2 Steam connector
3 Water supply connectors
4 Water drain connector
5 Water connection hose G 3/4" G 3/8"
(included in the delivery)
6 Filter valve (accessory “Z261”)
7 Manometer (installation recommended)
8 Funnel with siphon (building side)
9 Water drain hose (included in the delivery)
10 Service switch heating voltage supply (building side)
11 Service switch heating voltage supply module A (building side)
12 Service switch heating voltage supply module B (building side)
13 Steam hose (accessory “DS35”)
14 Condensate hose (accessory “KS10”)
15 Ventilation unit (accessory “Turbo..”)
16 Continuous humidity controller or humidistat
17 Safety humidistat
16
17
ONOFF
ONOFF
9
8
14
KS10
ONOFF
10
11
12
14
KS10
Turbo 45
15
Turbo 45
Turbo 65
Turbo 65
15
1
4
6
7
Z261
3
2
5
DS35
13
