Basic Equipment packages for the AFP-300 and AFP-400 include the following:
AFP-300 Basic Equipment Packages
• BE-300AA – Base Equipment for use with the CAB-400AA mini cabinet. It is
similar to the BE-300 but for use in CAB-400AA. Includes MPS-400RB and
transformers. Supports one output option module. Order CAB-400AA cabinets
separately.
• BE-300 – Base Equipment includes the CPU module (CPU-300), an 80-character
display, programming keypad, MPS-400 main power supply, installation
instructions, chassis and required hardware. Order CAB-X3 cabinets separately.
AFP-400 Basic Equipment Packages
• BE-400 – Base Equipment includes the CPU-400 module, an MPS-400 power
supply, a BP-3 Battery Plate, cables, manuals, and a first row chassis. Order
CAB-X3 cabinets separately.
• BE-400AA – Base Equipment for a CAB-400AA mini-cabinet—similar to the
BE-400—but for use in the CAB-400AA. The BE-400AA supports one output
option module, and includes an MPS-400PCA and transformers. Order
CAB-400AA cabinets separately.
&38
The CPU provides LED indicators and operational switches. The panel is visible with
the cabinet door closed, except for programming switches, which are located behind a
flip-down door.

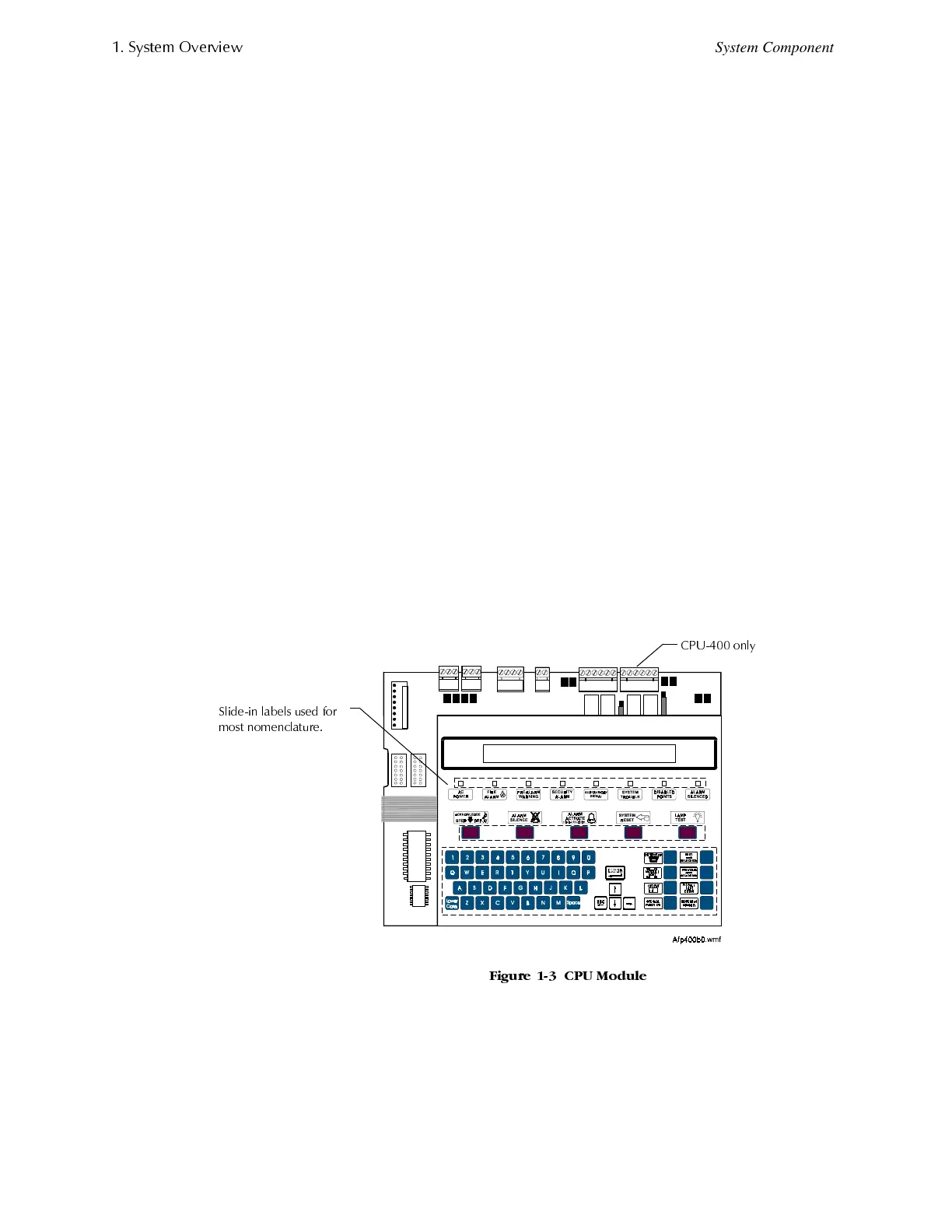

)LJXUH  &38 0RGXOH
6OLGHLQ ODEHOV XVHG IRU
PRVW QRPHQFODWXUH
&38 RQO\
