Optional Devices
6\VWHP 2YHUYLHZ
AFP-300/AFP-400 Installation PN 50253:C1 05/22/97 1-11
2SWLRQDO'HYLFHV
Table 1-7 contains a list of optional components that can be installed in an AFP-300 or
AFP-400 system:

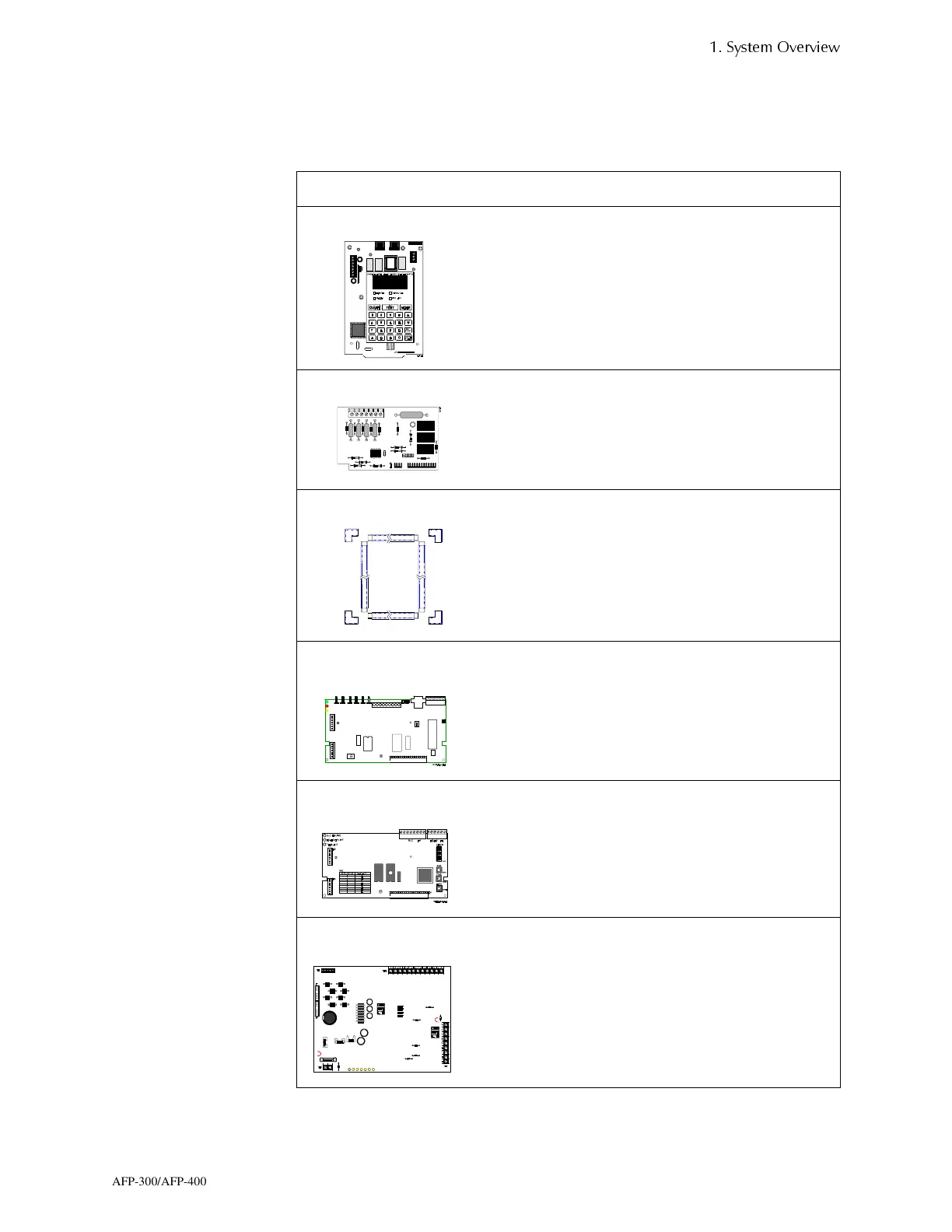

Table 1-7 Optional Devices for the AFP-300/400
Option Description
UDACT A Universal Digital Alarm Communicator/Transmitter
(UDACT) transmits system status to UL-listed Central
Station Receivers over a public switched telephone network.
The UDACT mounts in a cabinet or mounts remotely in the
ABS-8R. The UDACT connects to the EIA-485 annunciator
port and 24 VDC (nominal) power.
4XTM Transmitter Module A 4XTM module provides municipal box and remote station
transmitters meeting NFPA 72-1993 Auxiliary and Remote
Station requirements. The 4XTM also includes a Disable
switch and an LED indicator.
Trim Ring A gray trim ring is available for semi-flush mounting of the
CAB-X3 Series cabinet.
UZC-256 Universal Zone
Coder
A UZC-256 module is a circuit board—used for NAC coding
applications—that provides three output circuits and up to
256 zone codes.
NIB-96 Network Interface
Board
A Network Interface Board (NIB) is a microprocessor-
controlled module that connects slave control panels to a
master control panel. The NIB-96 module can be installed in
each slave FACP. Each slave FACP can contain as many as 96
input/output points, or as few as eight points.
FCPS-24 Field Charger
Power Supply
The FCPS-24 is a compact, cost-effective remote power
supply and battery charger. This remote power supply
consists of a filtered, 24 VDC output that can drive up to four
Notification Appliance Circuits (NACs).
