Notifier AFP-400 - Mounting Expander Modules (CRE-4, ICE-4, VCE-4)

 ,QVWDOODWLRQ Mounting Expander Modules (CRE-4, ICE-4, VCE-4)
2-20 AFP-300/AFP-400 Installation PN 50253:C1 05/22/97
0RXQWLQJ([SDQGH U0R GXOHV&5(,&(9&(
Table 2-8 contains illustrations and instructions for mounting an expander module to a
CRM-4, ICM-4, or VCM-4 module:

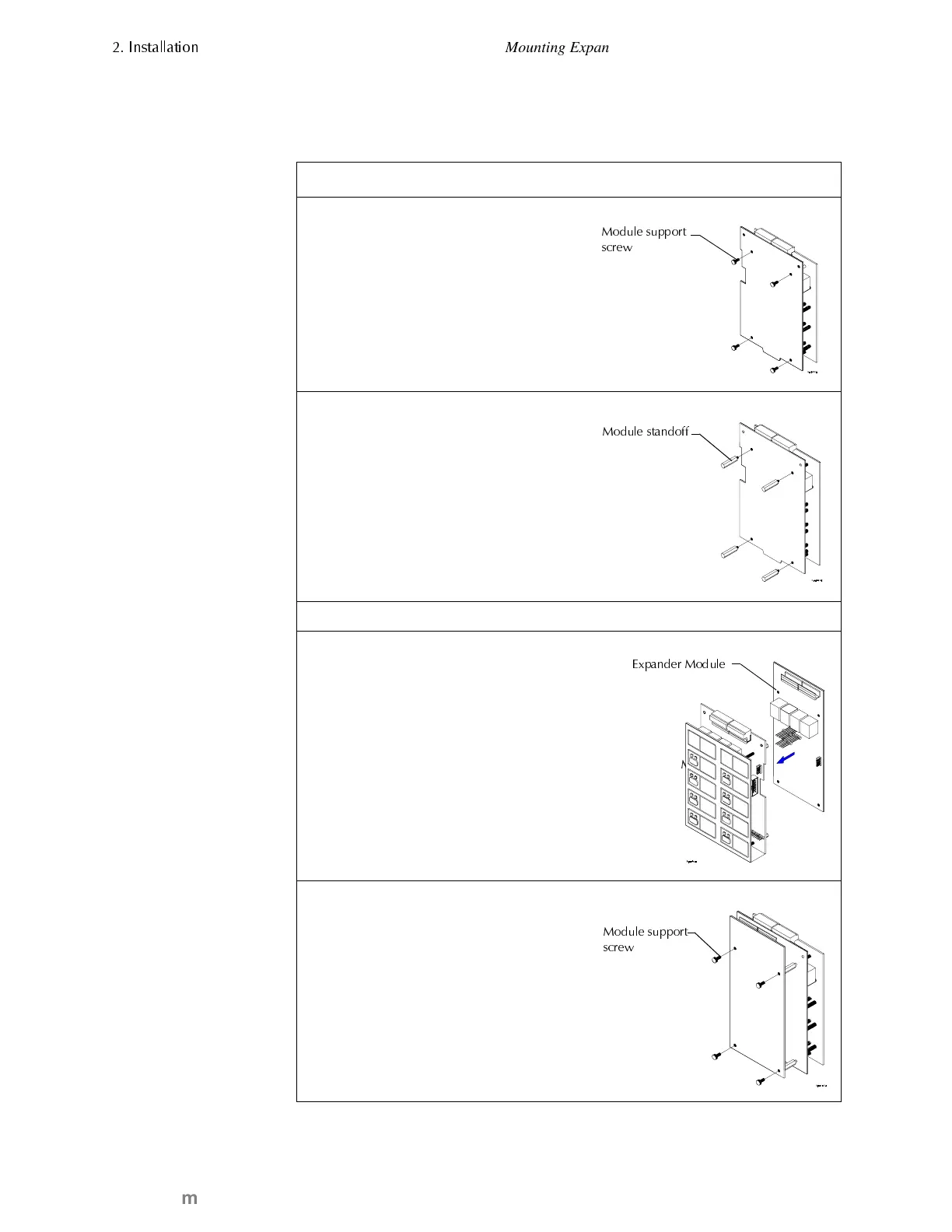

Table 2-8 Installing an Expander Module
Step Action
1 Remove one module support screw
and set it aside for later use.
2 Replace the module support screw
with one module standoff.
3 Repeat Steps 1 and 2 for the three remaining module support screws.
4 Insert pins on the Expander Module
into connector on the module. Make
sure the pins are in line; then, press
the two boards together until the
boards snap into place.
5 Install the four module support
screws (removed earlier) through the
back of the Expander Module and
into the standoffs.
0RGXOH VXSSRUW
VFUHZ
0RGXOH VWDQGRII
0RGXOH
([SDQGHU 0RGXOH
0RGXOH VXSSRUW
VFUHZ
