 6\VWHP 2YHUYLHZ Notification Circuit and Control Modules
1-18 AFP-300/AFP-400 Installation PN 50253:C1 05/22/97
1RWLILFDWLRQ&LUFXLWDQ G&RQWURO0RGXOHV
2YHUYLHZ
The control panel supports the following notification and control modules:
• Indicating Circuit Module (ICM-4)
• Indicating Circuit Expander (ICE-4)
• Control Relay Module (CRM-4)
• Control Relay Expander (CRE-4)
• Auxiliary Relay Module (ARM-4)
'HVFUL
S
WLRQVRI0RGXOHV
Table 1-12 contains descriptions of the notification circuit and control modules that can
be used with the control panel:
Table 1-12 Notification Circuit and Control Relay Modules
Module Function Circuit Rating
ICM-4 Provides four Notification
Appliance Circuits for Style Y or
Style Z operation. Circuits are
field-programmable to respond to a
single initiating zone, a group of
zones, or all initiating zones.
Maximum signaling
current is 3 A of total
current, limited by the
power supply.
ICE-4 Expands the ICM-4 to a total of
eight Notification Appliance
Circuits (Style Y or Style Z).
Identical to the ICM-4.
CRM-4 Provides four standard dry Form-C
relay contacts. Each relay is field-
programmable to respond to a single
initiating device circuit, a group of
circuits, or all initiating device
circuits. Each relay features manual
On/Off control switches and can be
disabled or enabled.
Contacts rated for 5 A
at 120 VAC or 28 VDC
(resistive).
CRE-4 Expands the capacity of the Control
Relay Module (CRM-4) to eight
Form-C alarm relays.
Identical to the CRM-4.
ARM-4 Provides four auxiliary Form-C
relays that can be controlled by a
CRM-4 or CRE-4 relay module.
Normally-open
contacts rated for 20 A
and the normally-closed
contacts are rated for
10 A at 125 VAC and 30
VDC (resistive).

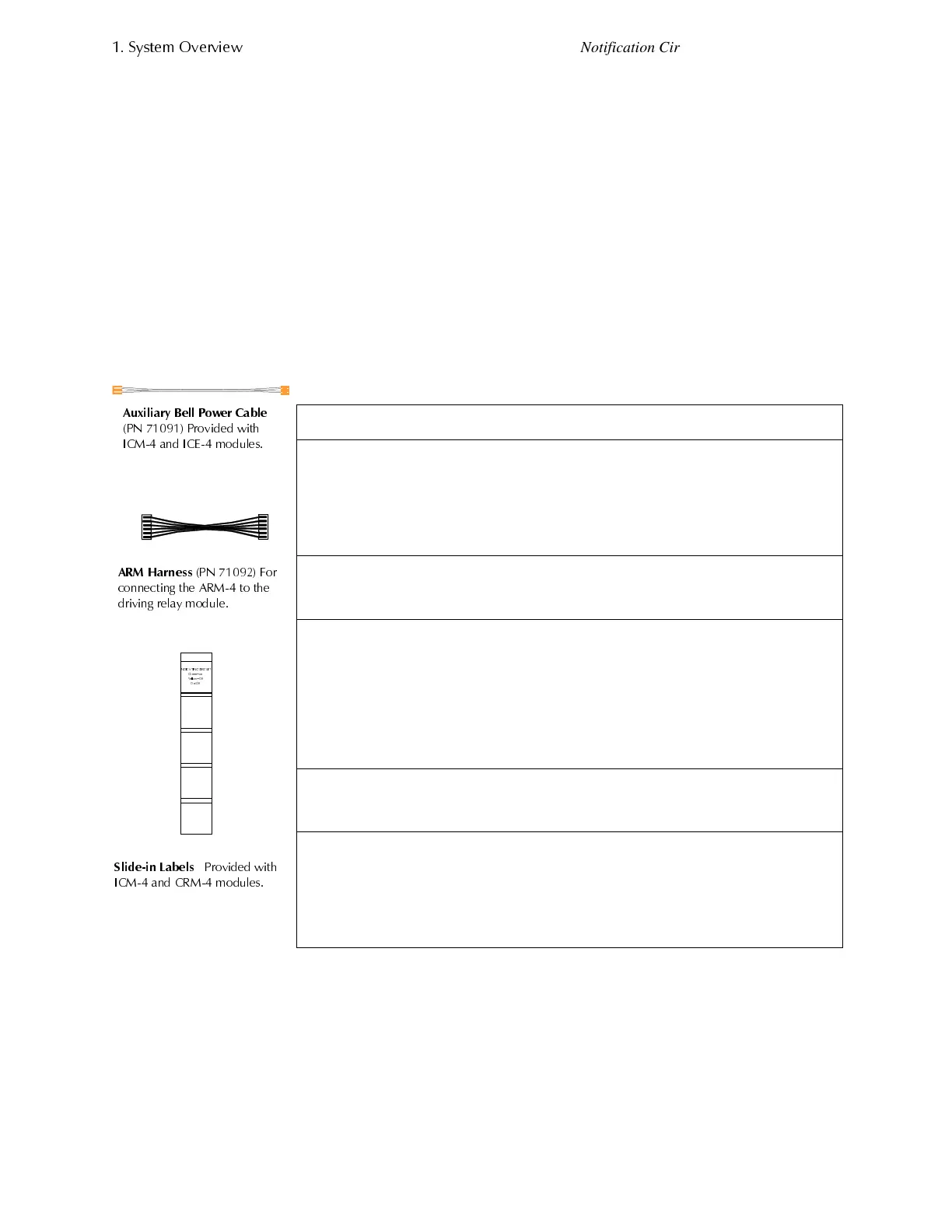

$X[LOLDU\ %HOO 3RZHU &DEOH
31  3URYLGHG ZLWK
,&0 DQG ,&( PRGXOHV
6OLGHLQ /DEHOV 3URYLGHG ZLWK
,&0 DQG &50 PRGXOHV
$50 +DUQHVV 31  )RU
FRQQHFWLQJ WKH $50 WR WKH
GULYLQJ UHOD\ PRGXOH
,1',&$7,1* &,5&8,7
*UHHQ RQ
<HOORZ 2II
2Q2II
