1-19
Installation 15088: J 10/22/99
Figure 2.4-2 depicts the LIB SLC numbering scheme for an AFP1010 in a CAB-B3 cabinet. If a CAB-A3 cabinet
is used with LIB-400 modules exclusively, it may house a maximum four loop AFP1010 system (refer to Figure
2.4-4). One or two ICA-4L or ICA-4 chassis are required to mount the LIB modules depending upon the number
and type of LIB modules employed. Refer to Figure 2.4-3 as an example of AM2020 applications.
NOTE
The installation of LIB modules resulting in duplicate LIB SLC numbers is never permitted.

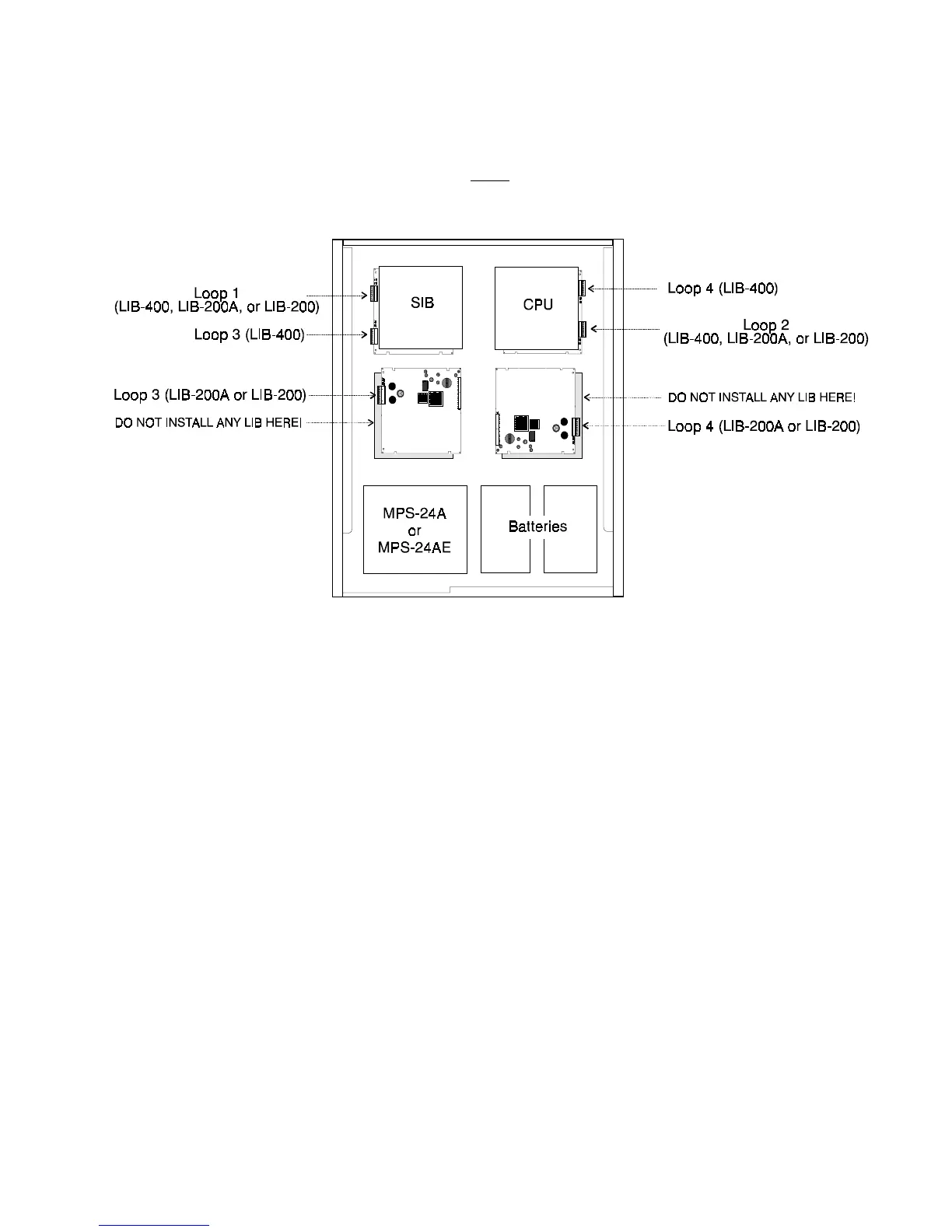

Figure 2.4-2 AFP1010 LIB SLC Numbering Scheme
