Notifier AM2020 User Manual

1-75
Installation 15088: J 10/22/99
Note: The circuit is supervised and
power-limited. For UL listed and
compatible devices, refer to the
Device Compatibility Document.

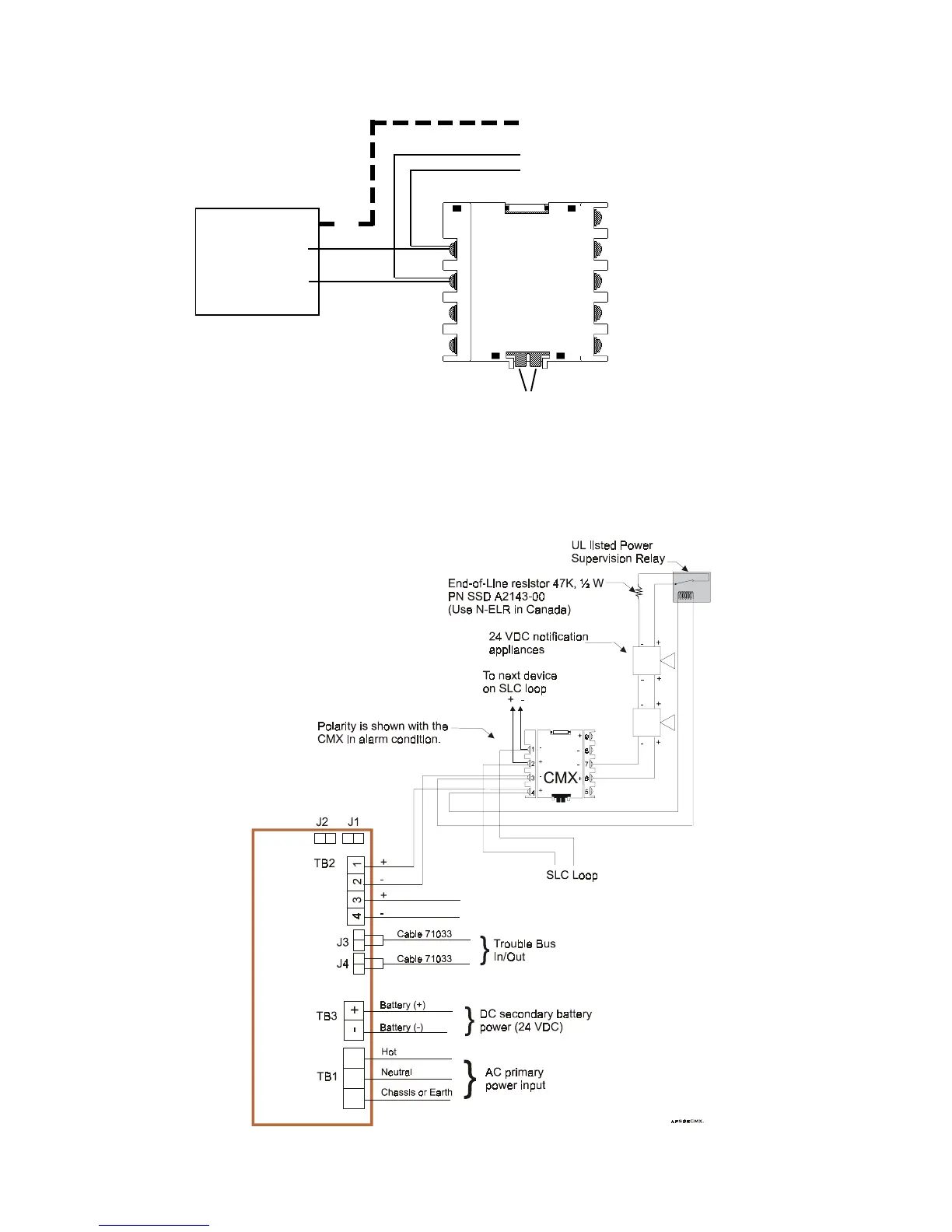

Figure 4.7-7 Typical APS-6R Wiring to a CMX Module
Figure 4.7-6 Using the CMX as a Form-C Relay
See Appendix A for device ratings.
WARNING!
The tabs must be broken before the connection of any power
source to the Form-C terminals (this is a permanent modification).
Break off both tabs to enable Form-C operation
Normally Closed Contact
Normally Open Contact
Common
Terminal 3 ( - )
Shield Drain Wire
+ To next device
- on SLC Loop
LIB
SLC Loop Channel A
Power Limited and supervised.
Terminal 1 ( + )
( - )
CMX
1
2
3
4
5
7
8
9
( + )
Note: contacts shown
in the energized
condition.
Alarm Polarity
Shown
Tabs
6
